Aerospace Finishing Solutions for Demanding Manufacturing Processes

Aerospace finishing solutions are the masking, racking, hanging, protection, and process-support products used to help parts move through coating, plating, anodizing, painting, cleaning, blasting, and related operations. The right solution protects specified surfaces, supports repeatable part presentation, and fits the temperature, chemistry, geometry, quality requirements, and production method of the aerospace component being processed.

Masking prevents finish or process media from reaching surfaces that must remain clean, conductive, dimensionally controlled, or ready for later assembly. Threads, bores, ports, sealing areas, electrical contacts, bearing locations, and mating surfaces are common examples. In aerospace metal finishing, a well-matched mask also needs to tolerate the actual temperature, chemistry, immersion, pressure, and handling conditions without creating avoidable rework.

Start with the complete aircraft finishing process rather than the part alone. Identify maximum temperature, dwell time, chemical exposure, immersion conditions, coating thickness, required boundary, and how the mask will be installed and removed. Then evaluate geometry and fit. Silicone, EPDM, high-temperature tapes, and other materials each have different strengths, so material selection should be based on the specific process specification and operating environment.

Racking controls how a component is supported, oriented, spaced, contacted, and transferred through the finishing process. Depending on the application, it can influence electrical continuity, coating access, drainage, part stability, line density, and operator handling. Aerospace finishing systems often benefit from racks designed around critical surfaces and repeatable contact points so the tooling supports both the finish requirement and the production workflow.

Custom racking is useful when standard hooks or general-purpose racks cannot consistently support the component, preserve required contact locations, achieve the desired orientation, or use available line space efficiently. It can also help when a part family repeats frequently enough to justify a dedicated method. EPSI can evaluate geometry, process exposure, conveyor constraints, loading goals, grounding needs, and operator workflow when developing a custom racking approach.

Yes. Modular racking can be useful for aerospace manufacturers and job shops that process changing part families, prototypes, repair work, or lower-volume production. Reusable frames and configurable crossbars or hanging components allow the rack layout to change without fabricating a completely new welded rack for every job. The final configuration still needs to meet the component's load, contact, spacing, process, and handling requirements.

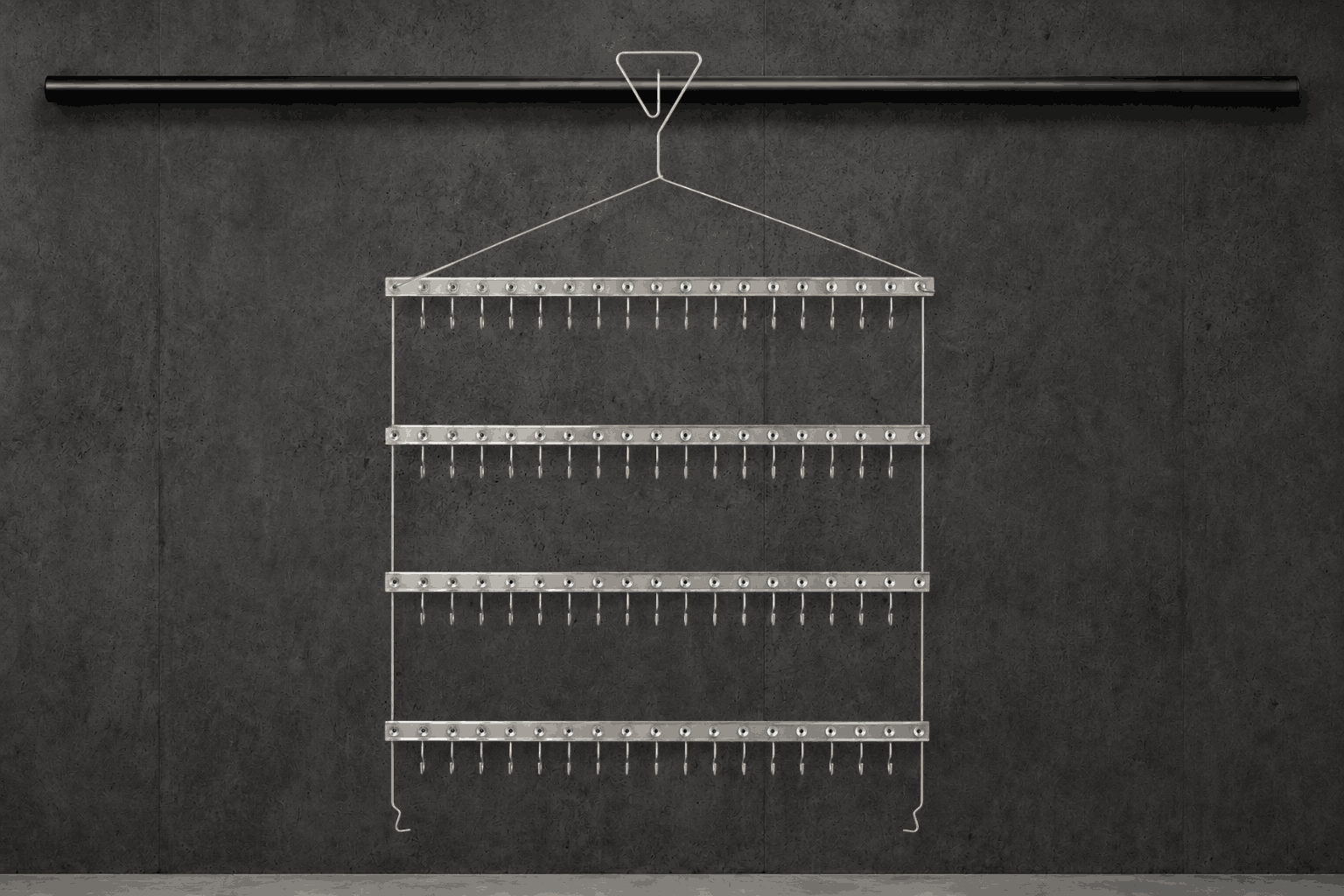

Cross N Click is a configurable modular rack that can be especially useful for small aerospace parts and changing production mixes. Its adjustable crossbar-and-hook approach gives operators a way to organize multiple components on a reusable rack while adapting spacing and hanging positions between jobs. As with any rack, the correct setup depends on part weight, contact point, finishing process, line clearance, and required presentation.

Masking and racking establish conditions before coating or treatment begins. A poor mask fit can expose a protected feature, while unstable hanging, inconsistent contact, or unsuitable orientation can create downstream problems. Standardizing these inputs reduces operator improvisation and makes the process easier to repeat. It also helps teams isolate whether a defect originates in masking, pretreatment, application, cure, electrical contact, handling, or another production step.

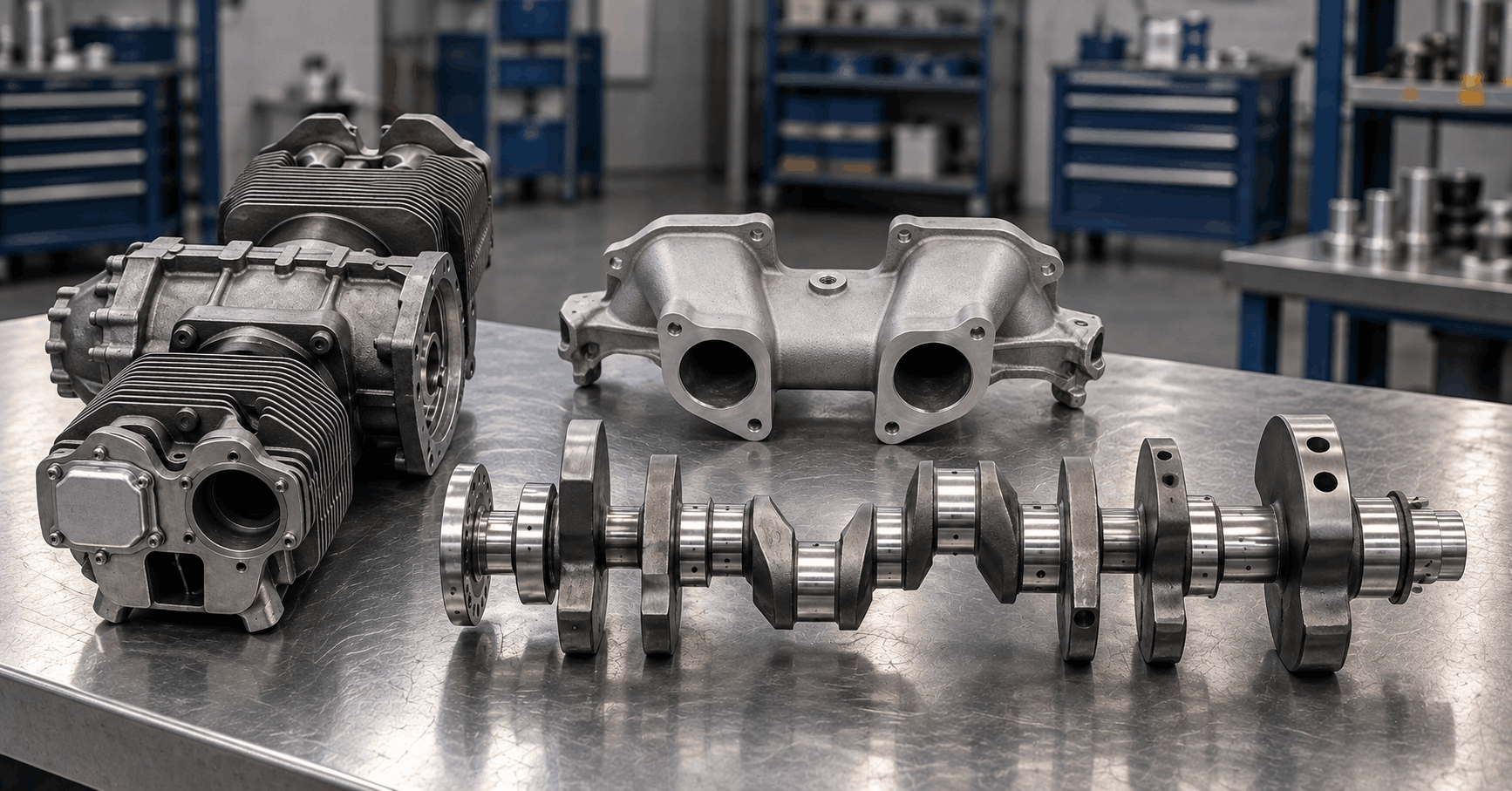

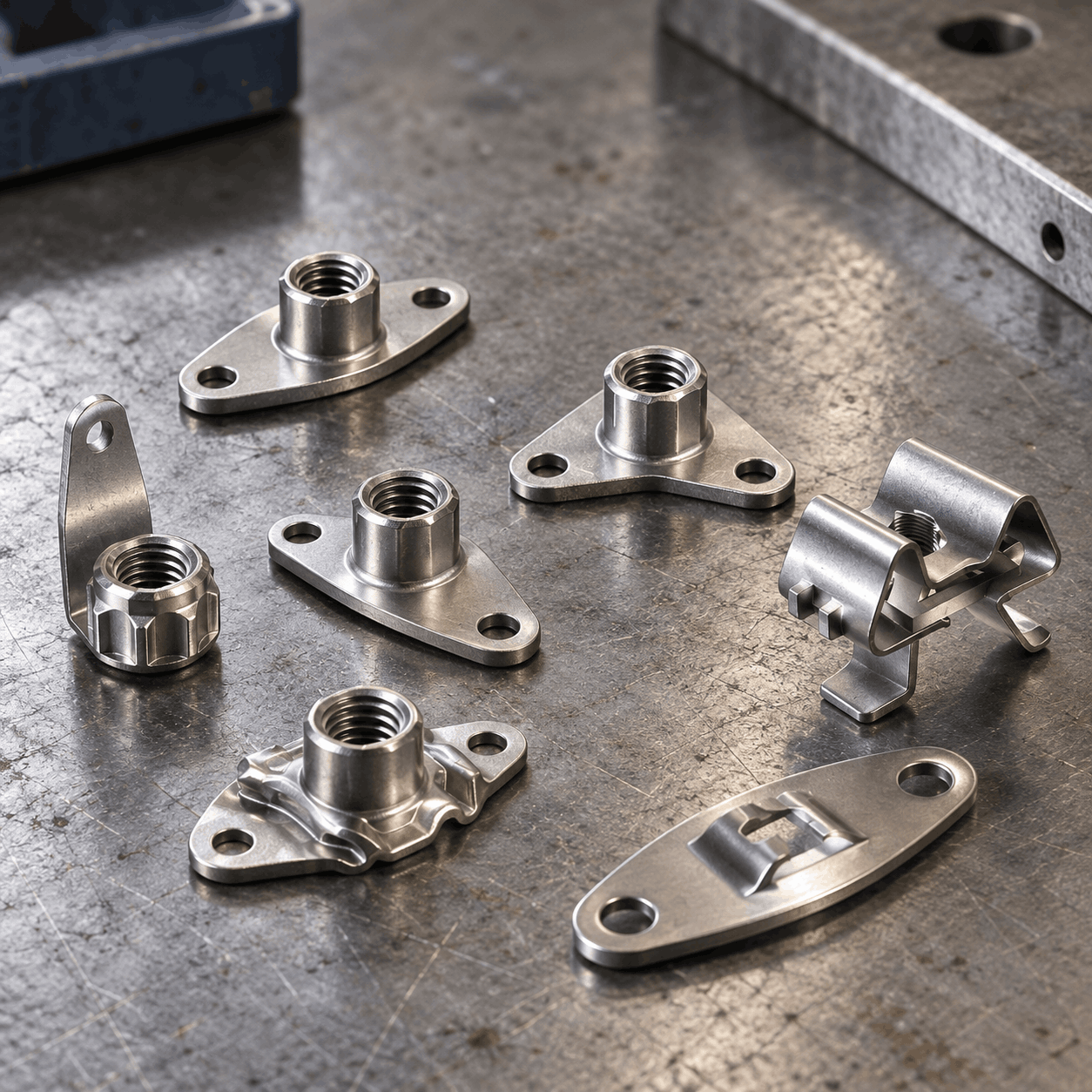

Many aerospace and defense components include features that may need selective protection, including threaded holes, studs, bores, ports, bearing seats, sealing surfaces, electrical contacts, precision interfaces, and areas reserved for later bonding or assembly. Examples can range from small fasteners and nutplates to housings, structural components, brackets, engine-related parts, and fabricated assemblies. Requirements should always follow the applicable drawing and process specification.

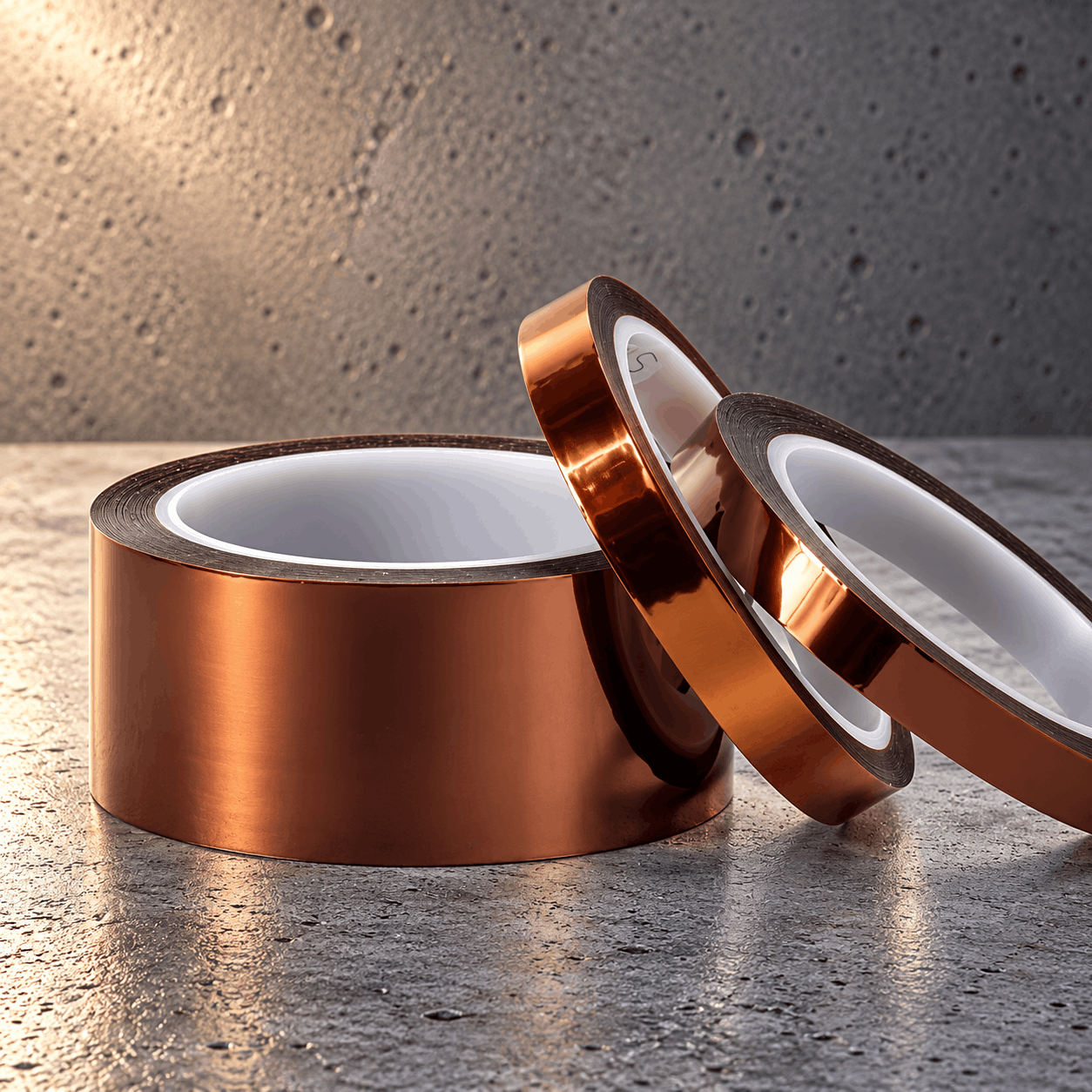

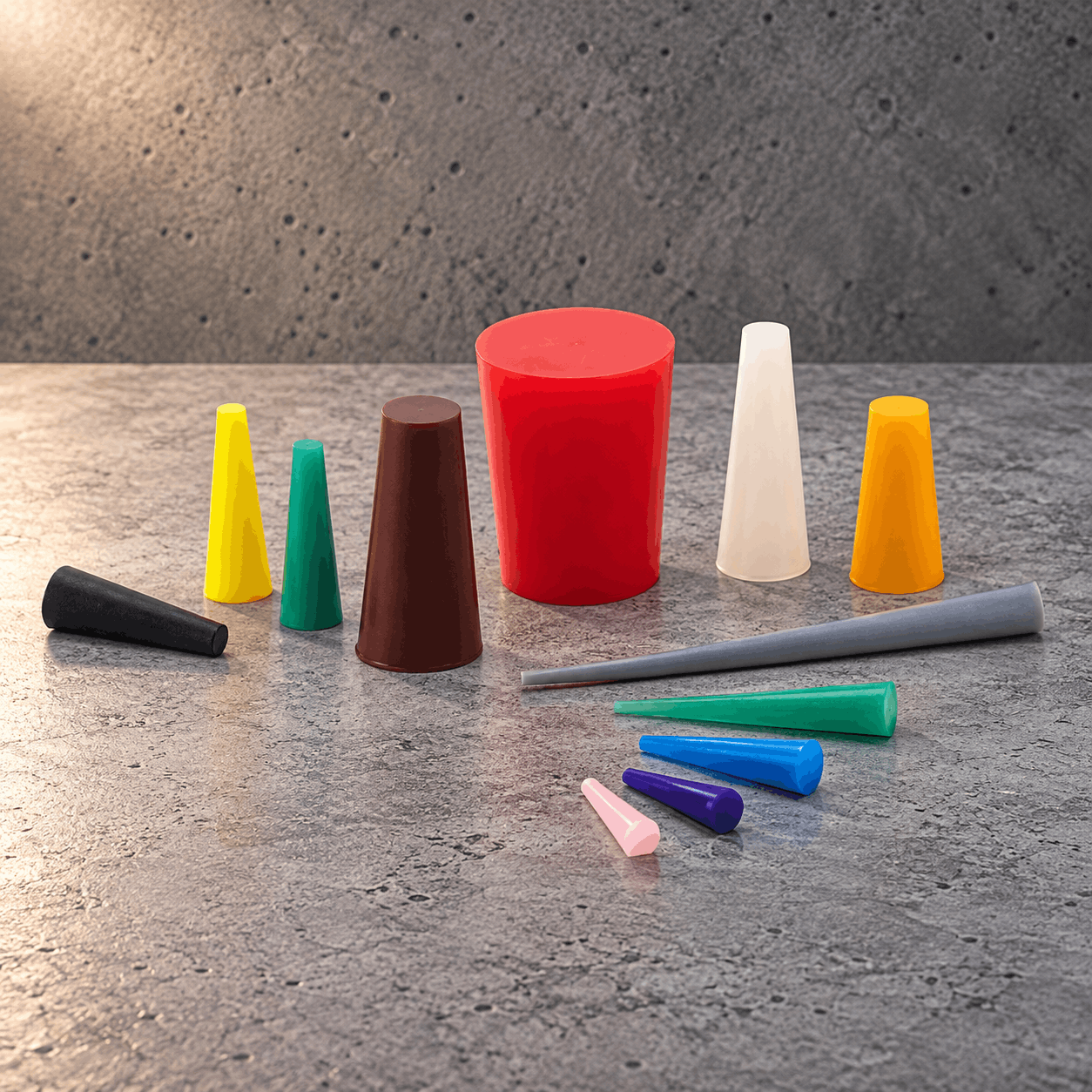

Aerospace finishing companies typically choose masking geometry based on the feature being protected and the process exposure. Plugs are often suited to holes and internal diameters, caps to external features, tapes to irregular or broad boundaries, and discs to flat circular areas. Fit, temperature, chemistry, pressure, removal, reuse, and required edge definition all matter. Complex parts may use several masking types together in one operation.

Yes. EPSI offers standard masking, hooks, Cross N Click, modular racking, and other finishing supplies, while custom masking and custom racking can address applications where standard products do not provide the needed fit or workflow. The most useful starting point is a clear description of the part, protected surfaces, process conditions, current method, production volume, and the specific problem the finishing team wants to improve.

Vendor Managed Inventory can help keep frequently used masking and finishing supplies available according to agreed inventory levels and actual consumption patterns. For aerospace operations with recurring cap, plug, tape, disc, hook, or related requirements, planned replenishment can reduce stockouts, emergency freight, excess purchasing activity, and time spent checking bins. VMI is most valuable when the recurring items and usage expectations are clearly defined.

Provide the part drawing or clear photos when permitted, the surfaces that must be protected, process type, temperatures, chemical exposure, immersion or cure conditions, production quantity, current masking or hanging method, and any rack or conveyor constraints. Also explain the problem you are trying to solve, such as excessive touch time, inconsistent fit, difficult removal, grounding, part movement, or frequent replenishment. Avoid sharing controlled or restricted technical data through unapproved channels.
