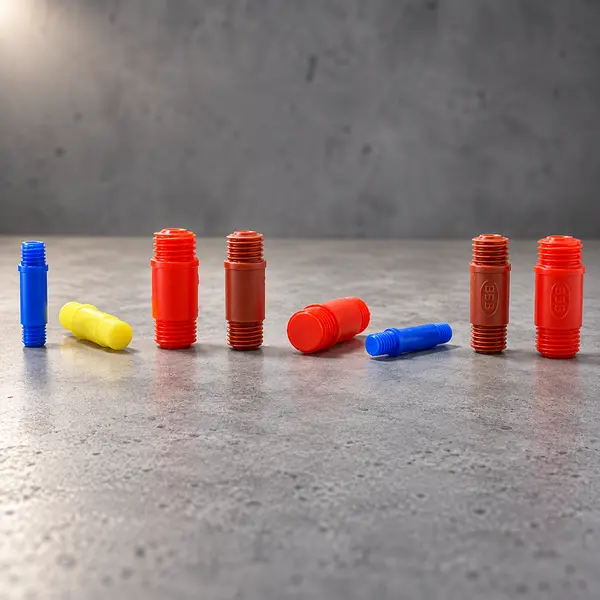

LTP Series - Liqui-Tite™ Plugs - COLORS
New Colors!
- Innovative: The best way to seal threaded holes
- Self-sealling: spiral threads lock out liquids
- Fast and Easy: Just push and twist!
- Versatile: Coarse and fine threads on one piece
- Durable: High-durometer silicone takes repeated uses at high temp
- Perfect Fit: designed by our experienced engineering team
Product Description:
The EPSI Guarantee means that we listen when you tell us about the masking you do. We heard you say that regular silicone plugs just don’t seal out liquids well enough for plating, anodizing, and e-coating, so we created the new EPSI Liqui-Tite ™ Plug with spiral threads, perfectly matched to the holes you’re masking. We designed a full range of the most common sizes, with coarse and fine threads on each piece for maximum versatility. Just press the plug straight into a threaded hole, give it a half-twist to seat it, and you’re ready to paint, plate, or powder coat with confidence.
Patent Pending
| Part Number | Thread Size (Coarse End) | Thread Size (Fine End) | COLOR | PD - IN | PL - IN | OL - IN | PD - MM | PL - MM | OL - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LIQUI-TITE PLUGS
LTP-138-SC
|
#6-32 | #6-32 | CLEAR | 0.153 | 0.249 | 1.229 | 3.886 | 6.325 | 31.217 | 500 |
$68.57/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-164-SP
|
#8-32 | #8-36 | Purple | 0.179 | 0.249 | 1.245 | 4.547 | 6.426 | 31.623 | 500 |
$71.56/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-190-SN
|
#10-24 | #10-32 | PINK | 0.205 | 0.256 | 1.241 | 5.207 | 6.502 | 31.521 | 500 |
$108.64/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-250-SO
|
1/4-20 | 1/4-28 | Orange | 0.328 | 0.342 | 1.375 | 8.331 | 8.687 | 34.925 | 500 |
$110.81/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-313-SG
|
5/16-18 | 5/16-24 | GREEN | 0.328 | 0.342 | 1.375 | 8.331 | 8.687 | 34.925 | 500 |
$135.96/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-375-SY
|
3/8-16 | 3/8-24 | GRAY | 0.390 | 0.344 | 1.375 | 9.906 | 8.738 | 34.925 | 250 |
$78.72/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-500-SI
|
1/2-13 | 1/2-20 | IVORY | 0.515 | 0.355 | 1.339 | 13.081 | 9.017 | 34.011 | 250 |
$107.66/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-M06-SU
|
M6x1 | M6x0.75 | BLUE | 0.251 | 0.285 | 1.225 | 6.375 | 7.239 | 31.115 | 500 |
$103.75/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-M08-SL
|
M8x1.25 | M8x0.75 | YELLOW | 0.330 | 0.339 | 1.341 | 8.382 | 8.611 | 34.061 | 500 |
$135.96/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-M10-SF
|
M10x1.5 | M10-1.25 | Rusty Red | 0.409 | 0.345 | 1.330 | 10.389 | 8.763 | 33.782 | 250 |
$80.50/BAG
|
||
|
LIQUI-TITE PLUGS
LTP-M12-SR
|
M12x1.5 | M12x1.25 | RED | 0.487 | 0.352 | 1.336 | 12.370 | 8.941 | 33.934 | 250 |
$107.49/BAG
|
