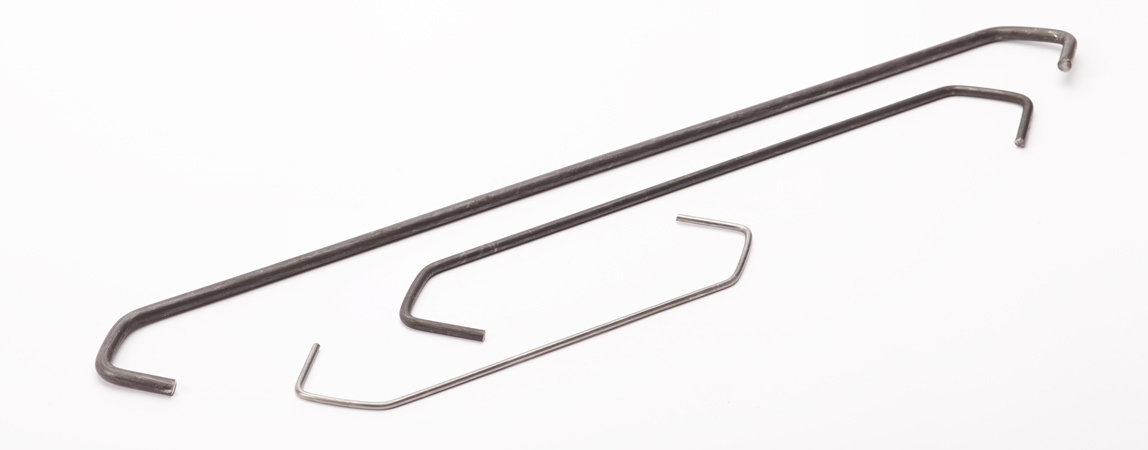

HV Series - V-Hooks
- V-Hook Geometry is Extremely Stable Under Loads (as compared to other hook geometries)
- Provides Superior Grounding (Multiple Grounding Contact Points)
- NOTE: The recommended safe load limits were compiled under static load conditions in a laboratory fully accredited by the American Association for laboratory Accreditation, conforming to ISO Guide 25. Although all load limits incorporate a safety factor, many factors will affect the actual dynamic load capacity of a hook. Such factors include sudden change in line speed, vibration in the conveyor, or in the case of suspension from two hooks, a shift in the center of gravity caused by an incline or stretching along curves in the conveyor. This product should be tested to determine the suitability for its intended use.
- Please call your EPSI representative for further details.
========================================================================
| Part Number | Leg 1 - IN | Leg 2 - IN | Length - IN | Wire Diameter - IN | Leg 1 - MM | Leg 2 - MM | Length - MM | Wire Diameter - MM | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.000 (75.0mm) L X 0.060" (1."
HV 07515-2121
|
0.810 | 0.810 | 3.000 | 0.060 | 21.0 | 21.0 | 75.0 | 1.5 | 2500 |
$75.41/BOX
|
||
|
3.000 (75.0mm) L X 0.080" (2."
HV 07520-2121
|
0.081 | 0.081 | 3.000 | 0.08 | 21.0 | 21.0 | 75.0 | 2.0 | 2500 |
$75.12/BOX
|
||
|
4.000 (100.0mm) L X 0.060" (1"
HV 10015-2121
|
0.810 | 0.810 | 4.000 | 0.060 | 21.0 | 21.0 | 100.0 | 1.5 | 2500 |
$100.66/BOX
|
||
|
4.000 (100.0mm) L X 0.080" (2"
HV 10020-2121
|
0.810 | 0.810 | 4.000 | 0.080 | 21.0 | 21.0 | 100.0 | 2.0 | 2500 |
$105.17/BOX
|
||
|
4.000 (100.0mm) L X 0.120" (3"
HV 10030-2121
|
0.810 | 0.810 | 4.000 | 0.120 | 21.0 | 21.0 | 100.0 | 3.0 | 1000 |
$75.87/BOX
|
||
|
4.000 (100.0mm) L X 0.180" (4"
HV 10045-2121
|
500 |
$75.64/BOX
|
||||||||||
|
6.000 (150.0mm) L X 0.060" (1"
HV 15015-2525
|
1.000 | 1.000 | 6.000 | 0.060 | 25.0 | 25.0 | 150.0 | 1.5 | 2500 |
$150.53/BOX
|
||
|
6.000 (150.0mm) L X 0.080" (2"
HV 15020-2525
|
1.000 | 1.000 | 6.000 | 0.080 | 25.0 | 25.0 | 150.0 | 2.0 | 2500 |
$165.85/BOX
|
||
|
6.000 (150.0mm) L X 0.120" (3"
HV 15030-2525
|
1.000 | 1.000 | 6.000 | 0.120 | 25.0 | 25.0 | 150.0 | 3.0 | 1000 |
$78.12/BOX
|
||
|
6.000 (150.0mm) L X 0.180" (4"
HV 15045-2525
|
1.000 | 1.000 | 6.000 | 0.180 | 25.0 | 25.0 | 150.0 | 4.5 | 500 |
$94.38/BOX
|
||
|
6.000 (150.0mm) L X 0.250" (6"
HV 15060-2525
|
1.000 | 1.000 | 6.000 | 0.250 | 25.0 | 25.0 | 150.0 | 6.0 | 250 |
$138.15/BOX
|
||
|
8.000 (200.0mm) L X 0.080" (2"
HV 20020-2525
|
1.000 | 1.000 | 8.000 | 0.080 | 25.0 | 25.0 | 200.0 | 2, 2.0 | 2500 |
$226.25/BOX
|
||
|
8.000 (200.0mm) L X 0.120" (3"
HV 20030-2525
|
1.000 | 1.000 | 8.000 | 0.120 | 25.0 | 25.0 | 200.0 | 3.0 | 1000 |
$106.97/BOX
|
||
|
8.000 (200.0mm) L X 0.180" (4"
HV 20045-2525
|
1.000 | 1.000 | 8.000 | 0.180 | 25.0 | 25.0 | 200.0 | 4.5 | 500 |
$107.30/BOX
|
||
|
8.000 (200.0mm) L X 0.250" (6"
HV 20060-2525
|
1.000 | 1.000 | 8.000 | 0.250 | 25.0 | 25.0 | 200.0 | 6.0 | 250 |
$148.23/BOX
|
||
|
10.000 (250.0mm) L X 0.080" ("
HV 25020-2525
|
1.000 | 1.000 | 10.000 | 0.080 | 25.0 | 25.0 | 250.0 | 2.0 | 2500 |
$276.43/BOX
|
||
|
10.000 (250.0mm) L X 0.120" ("
HV 25030-2525
|
1.000 | 1.000 | 10.000 | 0.120 | 25.0 | 25.0 | 250.0 | 3.0 | 1000 |
$171.02/BOX
|
||
|
12.000 (300.0mm) L X 0.080" ("
HV 30020-2525
|
1.000 | 1.000 | 12.000 | 0.080 | 25.0 | 25.0 | 300.0 | 2.0 | 1000 |
$140.51/BOX
|
||
|
12.000 (300.0mm) L X 0.120" ("
HV 30030-2525
|
1.000 | 1.000 | 12.000 | 0.120 | 25.0 | 25.0 | 300.0 | 3.0 | 500 |
$98.74/BOX
|
||
|
12.000 (300.0mm) L X 0.180" ("
HV 30045-2525
|
1.000 | 1.000 | 12.000 | 0.180 | 25.0 | 25.0 | 300.0 | 4.5 | 250 |
$84.37/BOX
|
||
|
12.000 (300.0mm) L X 0.250" ("
HV 30060-2525
|
1.000 | 1.000 | 12.000 | 0.250 | 25.0 | 25.0 | 300.0 | 6.0 | 200 |
$161.18/BOX
|
||
|
15.000 (375.0mm) L X 0.080" ("
HV 37520-2525
|
1.000 | 1.000 | 15.000 | 0.080 | 25.0 | 25.0 | 375.0 | 2.0 | 1000 |
$191.71/BOX
|
||
|
15.000 (375.0mm) L X 0.250" ("
HV 37560-2525
|
1.000 | 1.000 | 15.000 | 0.250 | 25.0 | 25.0 | 375.0 | 6.0 | 150 |
$146.89/BOX
|
||
|
18.000 (450.0mm) L X 0.080" ("
HV 45020-2525
|
1.000 | 1.000 | 18.000 | 0.080 | 25.0 | 25.0 | 450.0 | 2.0 | 1000 |
$229.92/BOX
|
||
|
18.000 (450.0mm) L X 0.120" ("
HV 45030-2525
|
1.000 | 1.000 | 18.000 | 0.120 | 25.0 | 25.0 | 450.0 | 3.0 | 500 |
$185.14/BOX
|
||
|
18.000 (450.0mm) L X 0.180" ("
HV 45045-2525
|
1.000 | 1.000 | 18.000 | 0.180 | 25.0 | 25.0 | 450.0 | 4.5 | 250 |
$117.85/BOX
|
||
|
18.000 (450.0mm) L X 0.250" ("
HV 45060-2525
|
1.000 | 1.000 | 18.000 | 0.250 | 25.0 | 25.0 | 450.0 | 6.0 | 125 |
$133.74/BOX
|
||
|
24.000 (600.0mm) L X 0.080" ("
HV 60020-2525
|
1.000 | 1.000 | 24.000 | 0.080 | 25.0 | 25.0 | 600.0 | 2.0 | 1000 |
$296.12/BOX
|
||
|
24.000 (600.0mm) L X 0.120" ("
HV 60030-2525
|
1.000 | 1.000 | 24.000 | 0.120 | 25.0 | 25.0 | 600.0 | 3.0 | 500 |
$246.85/BOX
|
||
|
24.000 (600.0mm) L X 0.180" ("
HV 60045-2525
|
1.000 | 1.000 | 24.000 | 0.180 | 25.0 | 25.0 | 600.0 | 4.5 | 100 |
$63.85/BOX
|
||
|
24.000 (600.0mm) L X 0.250" ("
HV 60060-2525
|
1.000 | 1.000 | 24.0 | 0.250 | 25.0 | 25.0 | 600.0 | 6.0 | 100 |
$115.15/BOX
|
||
|
30.000 (750.0mm) L X 0.120" ("
HV 75030-2525
|
1.000 | 1.000 | 30.0 | 0.120 | 25.0 | 25.0 | 750.0 | 3.0 | 250 |
$166.75/BOX
|
