HSTS Series - Hollow Stoppers
Product Description:

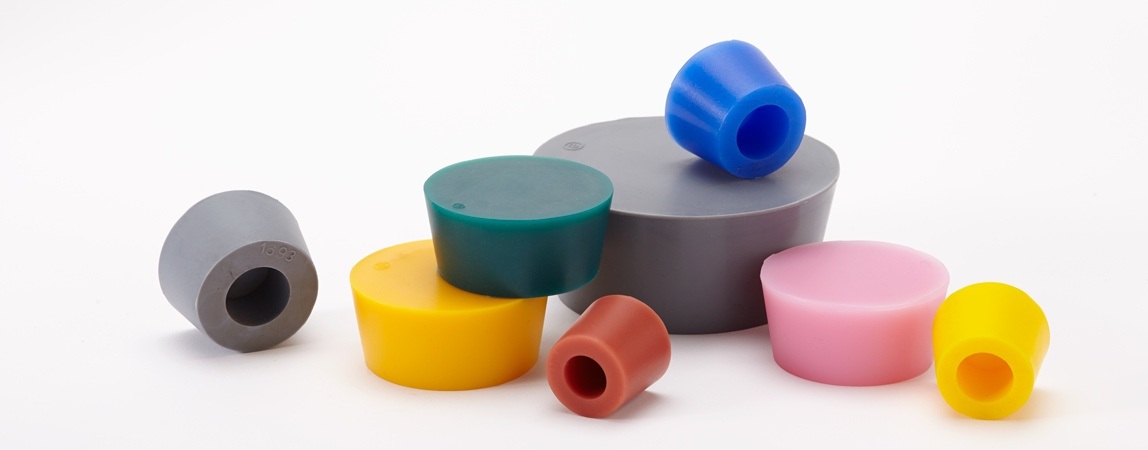

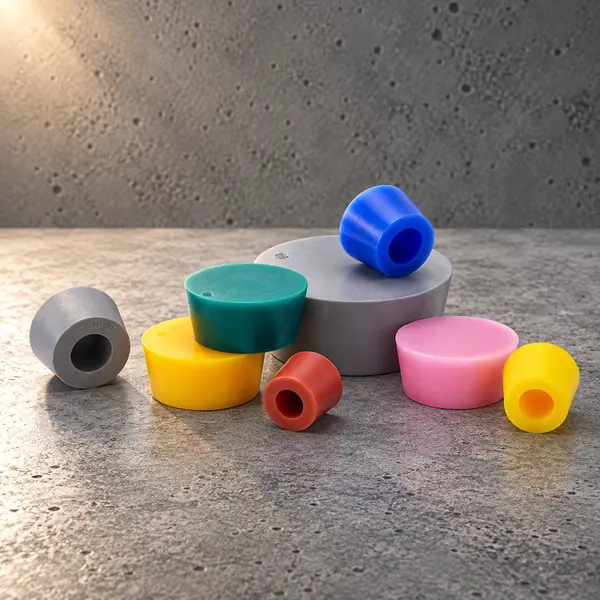

Our Hollow Silicone Tapered Stoppers (HSTS) are typically substituted for the same size solid tapered stopper due to their lower cost. With many sizes available, holes from 0.935” to 4.710” in diameter can easily be plugged. Our high temperature silicone is specially formulated to ensure reusability and reliability during masking.
| Part Number | COLOR | ID - IN | MJD - IN | MND - IN | MPD - IN | D - IN | L - IN | ID - MM | MJD - MM | MND - MM | MPD - MM | D - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.063 (27.0mm) Major Dia. X 0"
HSTS 1063-W
|
White | 0.500 | 1.063 | 0.905 | 0.984 | 0.750 | 1.000 | 12.7 | 27.0 | 23.0 | 25.0 | 19.1 | 25.4 | 100 |
$51.50/100 Per BAG
|
||
|
1.102 (28.0mm) Major Dia. X 0"
HSTS 1102-F
|
RUSTY | 0.500 | 1.102 | 0.945 | 1.023 | 0.750 | 1.000 | 12.7 | 29.0 | 24.0 | 26.0 | 19.1 | 25.4 | 100 |
$62.29/100 Per BAG
|
||
|
1.260 (32.0mm) Major Dia. X 1"
HSTS 1260-L
|
Yellow | 0.610 | 1.260 | 1.024 | 1.142 | 0.750 | 1.000 | 15.5 | 32.0 | 26.0 | 29.0 | 19.1 | 25.4 | 100 |
$66.61/100 Per BAG
|
||
|
1.338 (34.0mm) Major Dia. X 1"
HSTS 1338-Z
|
BROWN | 0.750 | 1.338 | 1.063 | 1.201 | 0.750 | 1.000 | 19.1 | 34.0 | 27.0 | 30.5 | 19.1 | 25.4 | 100 |
$81.28/100 Per BAG
|
||
|
1.456 (37.0mm) Major Dia. X 1"
HSTS 1456-U
|
BLUE | 0.625 | 1.456 | 1.180 | 1.318 | 0.710 | 1.000 | 15.9 | 37.0 | 30.0 | 33.5 | 18.0 | 25.4 | 100 |
$89.37/100 Per BAG
|
||
|
1.535 (39.0mm) Major Dia. X 1"
HSTS 1535-B
|
BLACK | 0.660 | 1.535 | 1.220 | 1.378 | 0.710 | 1.000 | 16.8 | 39.0 | 31.0 | 35.0 | 18.0 | 25.4 | 50 |
$52.66/50 Per BAG
|
||
|
1.614 (41.0mm) Major Dia. X 1"
HSTS 1614-R
|
Red | 0.700 | 1.614 | 1.300 | 1.457 | 0.710 | 1.000 | 17.8 | 41.0 | 33.0 | 37.0 | 18.0 | 25.4 | 50 |
$54.50/50 Per BAG
|
||
|
1.693 (43.0mm) Major Dia. X 1"
HSTS 1693-Y
|
GRAY | 0.750 | 1.693 | 1.417 | 1.555 | 0.700 | 1.000 | 19.1 | 43.0 | 36.0 | 39.5 | 17.8 | 25.4 | 50 |
$60.94/50 Per BAG
|
||
|
1.772 (45.0mm) Major Dia. X 1"
HSTS 1772-N
|
PINK | 0.788 | 1.772 | 1.457 | 1.615 | 0.715 | 1.000 | 20.0 | 45.0 | 37.0 | 41.0 | 18.1 | 25.4 | 50 |
$71.37/50 Per BAG
|
||
|
1.810 (46.0mm) Major Dia. X 1"
HSTS 1810-W
|
White | 0.821 | 1.810 | 1.496 | 1.653 | 0.718 | 1.000 | 20.9 | 46.0 | 38.0 | 42.0 | 18.2 | 25.4 | 50 |
$79.98/50 Per BAG
|
||
|
1.968 (50.0mm) Major Dia. X 1"
HSTS 1968-F
|
RUSTY | 0.980 | 1.968 | 1.653 | 1.811 | 0.722 | 1.000 | 24.9 | 50.0 | 42.0 | 46.0 | 18.3 | 25.4 | 50 |
$87.85/50 Per BAG
|
||
|
2.086 (53.0mm) Major Dia. X 1"
HSTS 2086-G
|
GREEN | 1.100 | 2.086 | 1.770 | 1.928 | 0.723 | 1.000 | 28.0 | 53.0 | 45.0 | 49.0 | 18.4 | 25.4 | 25 |
$66.00/25 Per BAG
|
||
|
2.205 (56.0mm) Major Dia. X 1"
HSTS 2205-L
|
Yellow | 1.220 | 2.205 | 1.890 | 2.048 | 0.723 | 1.000 | 31.0 | 56.0 | 48.0 | 52.0 | 18.4 | 25.4 | 25 |
$55.77/25 Per BAG
|
||
|
2.480 (63.0mm) Major Dia. X 1"
HSTS 2480-Z
|
GRAY | 1.285 | 2.480 | 1.968 | 2.224 | 0.718 | 1.000 | 32.6 | 63.0 | 50.0 | 56.5 | 18.2 | 25.4 | 25 |
$62.94/25 Per BAG
|
||
|
2.520 (64.0mm) Major Dia. X 2"
HSTS 2520-U
|
BLUE | 1.465 | 2.520 | 2.125 | 2.323 | 0.720 | 1.000 | 37.2 | 64.0 | 54.0 | 59.0 | 18.3 | 25.4 | 25 |
$65.81/25 Per BAG
|
||
|
2.677 (68.0mm) Major Dia. X 2"
HSTS 2677-F
|
RUSTY | 1.578 | 2.677 | 2.283 | 2.480 | 0.719 | 1.000 | 40.1 | 68.0 | 58.0 | 63.0 | 18.3 | 25.4 | 25 |
$91.57/25 Per BAG
|
||
|
2.953 (75.0mm) Major Dia. X 2"
HSTS 2953-R
|
Red | 1.800 | 2.953 | 2.440 | 2.697 | 1.000 | 1.377 | 45.7 | 75.0 | 62.0 | 68.5 | 25.4 | 35.0 | 25 |
$113.02/25 Per BAG
|
||
|
3.543 (90.0mm) Major Dia. X 2"
HSTS 3543-Y
|
GRAY | 2.256 | 3.543 | 2.953 | 3.248 | 1.200 | 1.535 | 57.3 | 90.0 | 75.0 | 82.5 | 30.5 | 39.0 | 10 |
$64.83/10 Per BAG
|
||
|
4.055 (103.0mm) Major Dia. X "
HSTS 4055-N
|
PINK | 2.568 | 4.055 | 3.267 | 3.661 | 1.275 | 1.535 | 65.2 | 103.0 | 83.0 | 93.0 | 32.4 | 39.0 | 10 |
$69.99/10 Per BAG
|
||
|
4.750 (120.7mm) Major Dia. X "
HSTS 4750
|
Clear | 2.625 | 4.750 | 3.543 | 4.147 | 2.250 | 3.423 | 66.7 | 120.7 | 90.0 | 105.3 | 57.1 | 87.0 | 5 |
$145.90/5 Per BAG
|
||
|
4.980" (126.5mm) Major Dia. X
HSTS 5000-W
|
White | 2.760 | 5.000 | 3.543 | 4.272 | 1.584 | 1.968 | 70.1 | 127.0 | 90.0 | 108.5 | 40.2 | 50.0 | 5 |
$85.74/5 Per BAG
|
