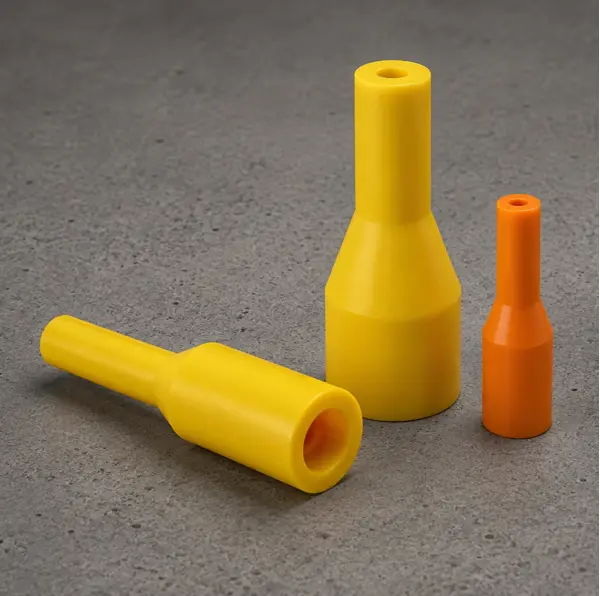

HSPP - Hollow Silicone Pull Plugs
- When Pulled Through Holes, Large Diameter Compresses Until Released, Providing for a Tight Seal
- Chamfered Neck and Smaller Pull-Tab Diameter Aid Insertion
Product Description:
Our Hollow Silicone Pull Plug (HSPP) product line is the industry standard solution for threaded and non-threaded through holes in powder coating and E-coating applications. With many sizes available, holes from 0.050” to 2.250” in diameter can easily be plugged.
Helpful Hints:
- When plugging a hole, make sure that the major diameter of the plug is larger than the diameter of the hole being plugged by at least 4%.
- Keep in mind any interference issues that will be created by the Pull-Tab being exposed after plug is inserted.
- Not recommended for holes with a lead-in chamfer or a countersink that require protection from paint. For these applications, EPSI recommends the Weld Nut Pull Plug (WPP) or the Washer Plug (WP) lines.
| Part Number | COLOR | MJD - IN | PL - IN | SD - IN | OL - IN | MJD - MM | PL - MM | OL - MM | SD - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.024 X 0.689" tag X 1.772" L"
SPP 1024-L
|
YELLOW | 1.024 | 1.772 | 0.689 | 4.000 | 26.0 | 45.0 | 101.6 | 17.5 | 50 |
$86.92/BAG
|
||
|
1.713 X 0.866 tag X 2.756'' L
SPP 1713-L
|
YELLOW | 1.713 | 2.756 | 0.866 | 6.250 | 43.5 | 70.0 | 158.8 | 22.0 | 25 |
$172.00/BAG
|
||
|
2.280'' X 1.140'' tag X 2.000'
SPP 2280-L
|
YELLOW | 2.280 | 2.000 | 1.140 | 6.000 | 57.9 | 50.8 | 152.4 | 29.0 | 10 |
$110.56/BAG
|
