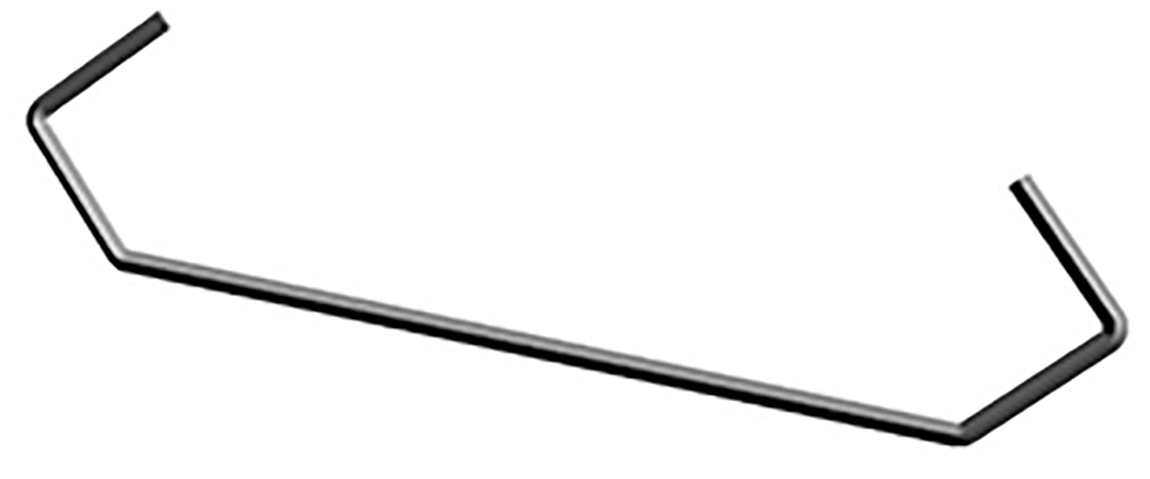

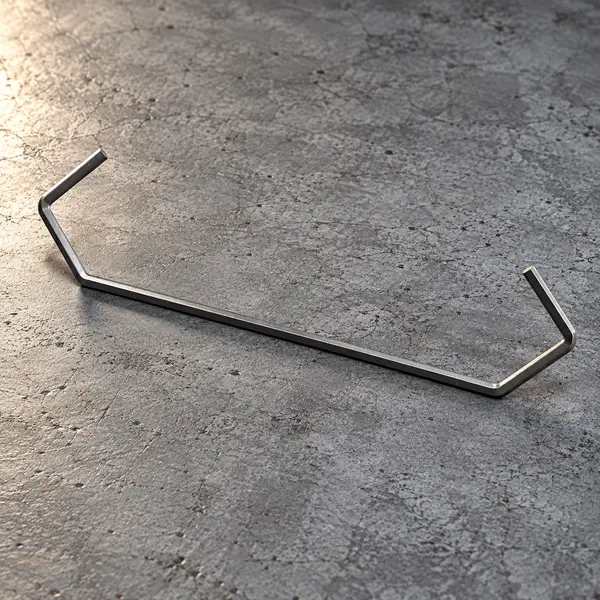

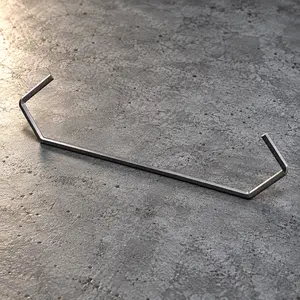

HKD Series - HKD Diamond Hooks
- BETTER: Better Grounding: Sharp edge provides better current flow
- STRONGER: Almost double the load of V- and C- style hooks
- FASTER: Smaller Contact Patch: Minimizes rework due to touch-ups
| Part Number | "A" WIRE (FLAT TO FLAT) | "B" LENGTH | "C" LEG LENGTHS | Load Capacity - Lbs | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|
|
4"L X 0.059" SQ WIRE
HKD 010016
|
0.062 | 4.0 | 0.64 | 9.0 | 2000 |
$172.19/BOX
|
||
|
4"L X 0.118" SQ WIRE
HKD 010027
|
0.120 | 4.0 | 0.72 | 60 | 2000 |
$319.26/BAG
|
||
|
7"L X 0.059" SQ WIRE
HKD 017516
|
0.062 | 7.0 | 0.64 | 9.0 | 2000 |
$204.71/BAG
|
||
|
7"L X 0.118" SQ WIRE
HKD 017527
|
0.120 | 7.0 | 0.72 | 60 | 1500 |
$304.92/BOX
|
||
|
9"L X 0.118" SQ WIRE
HKD 022530
|
0.120 | 9.0 | 0.73 | 60 | 1000 |
$347.81/BOX
|
||
|
9"L X 0.177" SQ WIRE
HKD 022546
|
0.180 | 9.0 | 0.81 | 180 | 250 |
$113.18/BOX
|
||
|
12"L X 0.118" SQ WIRE
HKD 030030
|
0.120 | 12.0 | 0.73 | 60 | 500 |
$208.06/BOX
|
||
|
12"L X 0.177" SQ WIRE
HKD 030046
|
0.180 | 12.0 | 0.81 | 180 | 250 |
$158.44/BOX
|
||
|
12"L X 0.250" SQ WIRE
HKD 030064
|
$127.94/BOX
|
|||||||
|
15"L X 0.118" SQ WIRE
HKD 037530
|
0.120 | 15.0 | 0.73 | 60 | 500 |
$255.90/BOX
|
||
|
15"L X 0.177" SQ WIRE
HKD 037546
|
0.180 | 15.0 | 0.81 | 180 | 250 |
$169.41/BOX
|
||
|
18"L X 0.118" SQ WIRE
HKD 045030
|
0.120 | 18.0 | 0.73 | 60 | 500 |
$287.87/BOX
|
||
|
18"L X 0.177" SQ WIRE
HKD 045046
|
0.180 | 18.0 | 0.81 | 180 | 250 |
$199.33/BOX
|
||
|
21"L X 0.177" SQ WIRE
HKD 052546
|
0.180 | 21.0 | 0.81 | 180 | 250 |
$214.76/BOX
|
||
|
24"L X 0.118" SQ WIRE
HKD 060030
|
0.120 | 24.0 | 0.73 | 60 | 500 |
$358.25/BOX
|
||
|
24"L X 0.177" SQ WIRE
HKD 060046
|
0.180 | 24.0 | 0.81 | 180 | 125 |
$126.18/BOX
|
