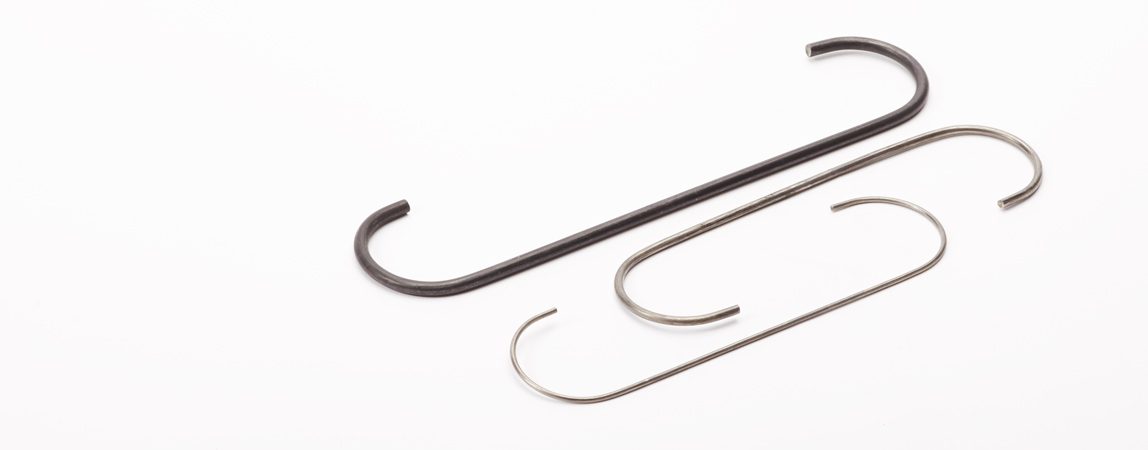

HC Series - C-Hooks
- Can be Used in Combination to Daisy Chain Multiple Items Together
- Ideal for Wider Parts or Multiple Styles of Parts with Varying Thicknesses
*NOTE: The recommended safe load limits were compiled under static load conditions in a laboratory fully accredited by the American Association for Laboratory Accreditation, conforming to ISO Guide 25. Although all load limits incorporate a safety factor, many factors will affect the actual dynamic load capacity of a hook. Such factors include sudden change in line speed, vibration in the conveyor, or in the case of suspension from two hooks, a shift in the center of gravity caused by an incline or stretching along curves in the conveyor. This product should be tested to determine the suitability for its intended use.
Please call your EPSI representative for further details.
========================================================================
| Part Number | Diameter - IN | Length - IN | Diameter - MM | Bowl Diameter - IN | Bowl Diameter - MM | Length - MM | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|
|
15.000 (375.0mm) L X 0.080" ("
HC 37520-38
|
0.080 | 15.000 | 2.0 | 1.500 | 38.0 | 375.0 | 1000 |
$200.00/BOX
|
||
|
3.000 (75.0mm) L X 0.080" (2."
HC 07520-32
|
0.080 | 3.000 | 2.0 | 1.250 | 32.0 | 75.0 | 2500 |
$92.22/BOX
|
||
|
4.000 (100.0mm) L X 0.060" (1"
HC 10015-32
|
0.060 | 4.000 | 1.5 | 1.250 | 32.0 | 100.0 | 2500 |
$89.25/BOX
|
||
|
4.000 (100.0mm) L X 0.080" (2"
HC 10020-32
|
0.080 | 4.000 | 2.0 | 1.250 | 32.0 | 100.0 | 2500 |
$103.53/BOX
|
||
|
4.000 (100.0mm) L X 0.120" (3"
HC 10030-32
|
0.120 | 4.000 | 3.0 | 1.250 | 32.0 | 100.0 | 1000 |
$69.69/BOX
|
||
|
6.000 (150.0mm) L X 0.060" (1"
HC 15015-38
|
0.060 | 6.000 | 1.5 | 1.500 | 38.0 | 150.0 | 2500 |
$148.75/BOX
|
||
|
6.000 (150.0mm) L X 0.080" (2"
HC 15020-38
|
0.080 | 6.000 | 2.0 | 1.500 | 38.0 | 150.0 | 2500 |
$167.78/BOX
|
||
|
6.000 (150.0mm) L X 0.120" (3"
HC 15030-38
|
0.120 | 6.000 | 3.0 | 1.500 | 38.0 | 150.0 | 1000 |
$97.25/BOX
|
||
|
6.000 (150.0mm) L X 0.180" (4"
HC 15045-38
|
0.180 | 6.000 | 4.5 | 1.500 | 38.0 | 150.0 | 500 |
$89.52/BOX
|
||
|
6.000 (150.0mm) L X 0.250" (6"
HC 15060-38
|
0.250 | 6.000 | 6.0 | 1.500 | 38.0 | 150.0 | 250 |
$129.75/BOX
|
||
|
8.000 (200.0mm) L X 0.080" (2"
HC 20020-38
|
0.080 | 8.000 | 2.0 | 1.500 | 38.0 | 200.0 | 2500 |
$218.95/BOX
|
||
|
8.000 (200.0mm) L X 0.120" (3"
HC 20030-38
|
0.120 | 8.000 | 3.0 | 1.500 | 38.0 | 200.0 | 1000 |
$119.00/BOX
|
||
|
8.000 (200.0mm) L X 0.180" (4"
HC 20045-38
|
0.180 | 8.000 | 4.5 | 1.500 | 38.0 | 200.0 | 500 |
$115.36/BOX
|
||
|
10.000 (250.0mm) L X 0.080" ("
HC 25020-38
|
0.080 | 10.000 | 2.0 | 1.500 | 38.0 | 250.0 | 2500 |
$290.04/BOX
|
||
|
10.000 (250.0mm) L X 0.120" ("
HC 25030-38
|
0.120 | 10.000 | 3.0 | 1.500 | 38.0 | 250.0 | 1000 |
$142.79/BOX
|
||
|
12.000 (300.0mm) L X 0.080" ("
HC 30020-38
|
0.080 | 12.000 | 2.0 | 1.500 | 38.0 | 300.0 | 1000 |
$139.11/BOX
|
||
|
12.000 (300.0mm) L X 0.120" ("
HC 30030-38
|
0.120 | 12.0 | 3.0 | 1.500 | 38.0 | 300.0 | 500 |
$88.29/BOX
|
||
|
12.000 (300.0mm) L X 0.180" ("
HC 30045-38
|
0.180 | 12.000 | 4.5 | 1.500 | 38.0 | 300.0 | 250 |
$97.04/BOX
|
||
|
12.000 (300.0mm) L X 0.250" ("
HC 30060-38
|
0.250 | 12.000 | 6.0 | 1.500 | 38.0 | 300.0 | 200 |
$259.47/BOX
|
||
|
18.000 (450.0mm) L X 0.120" ("
HC 45030-38
|
1.500 | 18.000 | 2.0 | 1.500 | 38.0 | 450.0 | 500 |
$213.75/BOX
|
||
|
18.000 (450.0mm) L X 0.180" ("
HC 45045-38
|
0.180 | 18.000 | 4.5 | 1.500 | 38.0 | 450.0 | 250 |
$141.22/BOX
|
||
|
18.000 (450.0mm) L X 0.250" ("
HC 45060-38
|
0.250 | 18.000 | 6.0 | 1.500 | 38.0 | 450.0 | 125 |
$194.65/BOX
|
