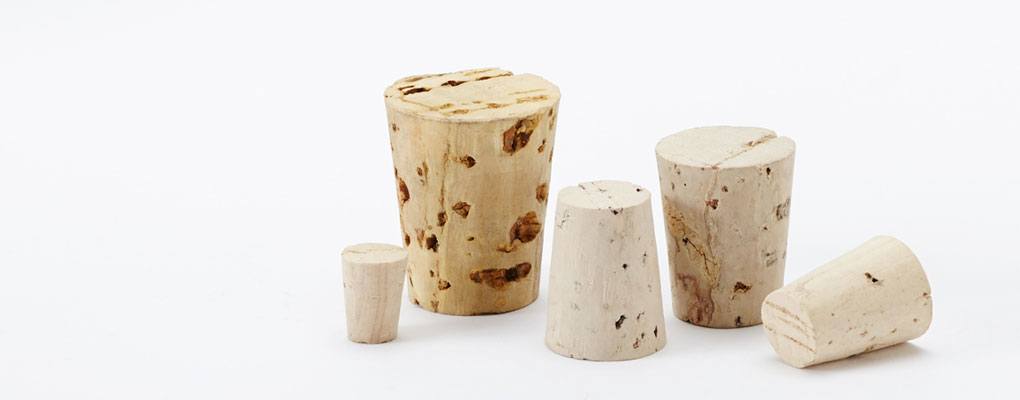

CRKR Series - Cork Stoppers
- Tapered to Fit a Variety of Hole Diameters
- Economical Cork Material is Ideal for Wet Paint and Shipping Applications
Product Description:
Our Cork Stopper (CRKR) product line is an economical solution for wet spray applications and low temp powder coating or where it is necessary to leave the plug in for shipping. With many sizes available, holes from 0.120” to 2.125” in diameter can easily be plugged.
Helpful Hints:
- Make sure that the major diameter of the plug is at least 15% larger than the hole diameter.
- The minor diameter should be at least 15% smaller than the hole diameter.
- Cork Stoppers can be easily cut for shallow cavities.
| Part Number | MJD - IN | MND - IN | MPD - IN | L - IN | MJD - MM | MND - MM | MPD - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.748 Major Dia. X 0.579" Min"
CRKR 0748
|
0.748 | 0.579 | 0.664 | 0.937 | 19 | 14.7 | 16.9 | 23.8 | 100 |
$33.43/BAG
|
||
|
0.189 Major Dia. X 0.094" Min"
CRKR 0189
|
0.189 | 0.094 | 0.142 | 0.500 | 4.8 | 2.4 | 3.6 | 12.7 | 1000 |
$210.00/BAG
|
||
|
0.248 Major Dia. X 0.157" Min"
CRKR 0248
|
0.248 | 0.157 | 0.203 | 0.500 | 6.3 | 4.0 | 5.1 | 12.7 | 1000 |
$215.00/BAG
|
||
|
0.311 Major Dia. X 0.217" Min"
CRKR 0311
|
0.311 | 0.217 | 0.264 | 0.500 | 7.9 | 5.5 | 6.7 | 12.7 | 1000 |
$220.00/BAG
|
||
|
0.374 Major Dia. X 0.280" Min"
CRKR 0374
|
0.374 | 0.280 | 0.327 | 0.500 | 9.5 | 7.1 | 8.3 | 12.7 | 1000 |
$225.00/BAG
|
||
|
0.437 Major Dia. X 0.327" Min"
CRKR 0437
|
0.437 | 0.327 | 0.382 | 0.626 | 11.1 | 8.3 | 9.7 | 15.9 | 500 |
$117.92/BAG
|
||
|
0.500 Major Dia. X 0.378" Min"
CRKR 0500
|
0.500 | 0.378 | 0.439 | 0.689 | 12.7 | 9.6 | 11.2 | 17.5 | 250 |
$58.96/BAG
|
||
|
0.563 Major Dia. X 0.436" Min"
CRKR 0563
|
0.563 | 0.436 | 0.500 | 0.748 | 14.3 | 11.1 | 12.7 | 19.0 | 250 |
$62.54/BAG
|
||
|
0.626 Major Dia. X 0.469" Min"
CRKR 0626
|
0.626 | 0.469 | 0.548 | 0.811 | 15.9 | 11.9 | 13.9 | 20.6 | 250 |
$82.28/BAG
|
||
|
0.689 Major Dia. X 0.531" Min"
CRKR 0689
|
0.689 | 0.531 | 0.610 | 0.874 | 17.5 | 13.5 | 15.5 | 22.2 | 250 |
$83.57/BAG
|
||
|
0.799 Major Dia. X 0.626" Min"
CRKR 0799
|
0.799 | 0.626 | 0.713 | 1.000 | 20.3 | 15.9 | 18.1 | 25.4 | 100 |
$41.29/BAG
|
||
|
1.000 Major Dia. X 0.764" Min"
CRKR 1000
|
1.000 | 0.764 | 0.882 | 1.252 | 25.4 | 19.4 | 22.4 | 31.8 | 100 |
$70.00/BAG
|
