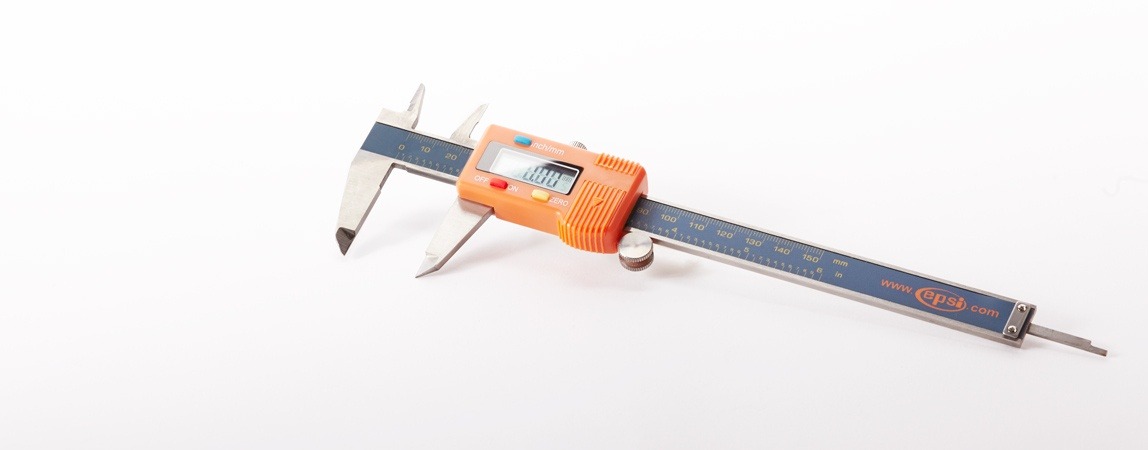

CALIPER TECHNICAL SPECIFICATIONS

• Measuring Range:
  • 0–75mm/0–3" ,
  • 0–100mm/0–4"
  • 0–150mm/0–6" ,
  • 0–200mm/0–8"
  • 0–300mm/0–12"
• Resolution: 0.01mm/0.0005
• Accuracy: ±0.02mm/0.001"(<100mm)
• ±0.03 mm/0.001(>100–200mm)
• ±0.04 mm/0.0015"(>200–300mm)
• Repeatability: 0.01 mm/0.0005"
• Max. measuring speed: 1.5m/sec. 60"/sec.
• Measuring System: Linear capacitive measuring system
• Display: LCD display
• Power: One 1.55V button cell
