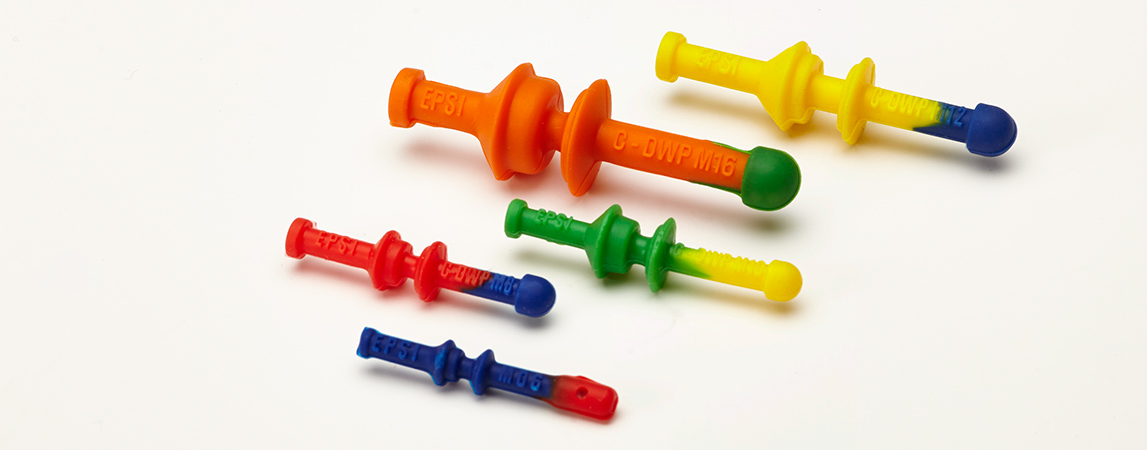

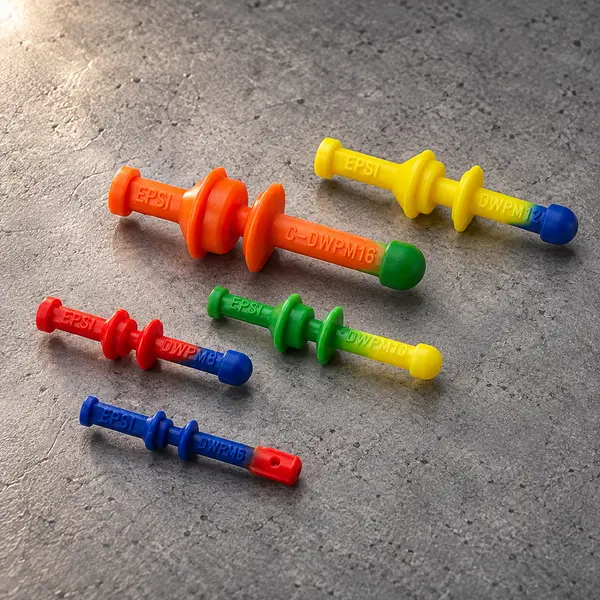

C-DWP Series - Caterpillar Double Washer Pull Plugs
- Designed for Caterpillar
- Masks entry and exit threads simultaneously
- Designed for common metric threads
- Provides positive seal
- DWP and C-DWP CAD drawing of DWP and C-DWP series. Renders in Adobe Acrobat.
- DWP 3D 3D drawing of DWP and C-DWP series. Some browsers may require opening in a separate instance of Adobe Acrobat.
| Part Number | COLOR | FD - IN | GAP - IN | OL - IN | SL - IN | FD - MM | GAP MM | OL - MM | SL - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dual Washer Plug - M06 Thread
C-DWP M06 BLUE w/RED TIP
|
BLUE W/RED TIP | 0.243 | 0.175 | 1.239 | 0.574 | 6.2 | 4.4 | 31.5 | 14.6 | 1000 |
$141.29/BAG
|
||
|
Dual Washer Plug - M08 Thread
C-DWP M08 RED w/BLUE TIP
|
RED W/BLUE TIP | 0.323 | 0.242 | 1.500 | 0.668 | 8.2 | 6.1 | 38.1 | 17.0 | 1000 |
$171.20/BAG
|
||
|
Dual Washer Plug - M10 Thread
C-DWP M10 GREEN w/YELLOW TIP
|
GREEN W/YELLOW TIP | 0.410 | 0.322 | 1.643 | 0.717 | 10.4 | 8.2 | 41.7 | 18.2 | 500 |
$98.48/BAG
|
||
|
Dual Washer Plug - M12 Thread
C-DWP M12 YELLOW w/BLUE TIP
|
YELLOW W/BLUE TIP | 0.503 | 0.377 | 1.870 | 0.820 | 12.8 | 9.6 | 47.5 | 20.8 | 500 |
$194.25/BAG
|
||
|
Dual Washer Plug - M16 Thread
C-DWP M16 ORANGE w/GREEN TIP
|
ORANGE W/ GREEN TIP | 0.658 | 0.495 | 2.282 | 1.057 | 16.7 | 12.6 | 58.0 | 26.8 | 250 |
$175.32/BAG
|
