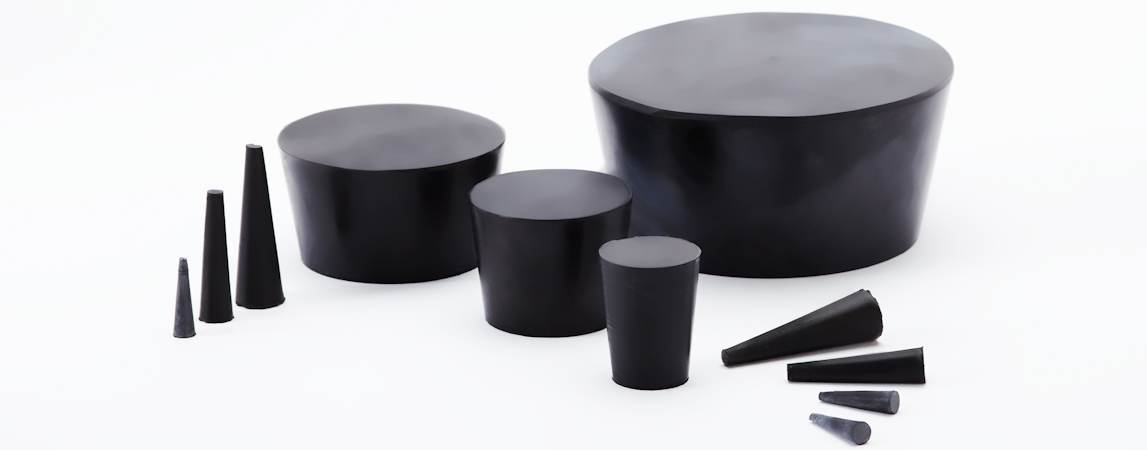

BES Series - Black EPDM Stoppers
- Tapered to fit a variety of hole diameters
- Compressible for better sealling of both threaded and non-threaded holes
- Ideal for sand blasting
- excellent chemical and hydrocarbon resistance
Typical Applications:
Used as a plug in both threaded and non-threaded holes and in combination with hardware to seal off large cavities.
Helpful Hints:
- Make sure that the major diameter of the plug is at least 15% larger than the hole diameter. The minor diameter should be at least 15% smaller than the hole diameter.
- EPDM Tapered Stoppers are not recommended for prolonged exposure to intense heat.
Product Description:
Our Black EPDM Stopper (BES) product line is an economical substitute for our STS product line for general plugging applications. With many sizes available, holes from 0.020” to 4.710” in diameter can easily be plugged. Our high temperature EPDM is specially formulated to resist chemical attack and ensure reusability and economy during masking.
| Part Number | COLOR | MJD - IN | MND - IN | MPD - IN | L - IN | MJD - MM | MND - MM | MPD - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.100 (2.5mm) Major Dia. X 0."
BES 0100X0625
|
BLACK | 0.100 | 0.031 | 0.066 | 0.625 | 2.5 | 0.8 | 1.7 | 15.9 | 1000 |
$33.60/1000 Per BAG
|
||
|
0.125 (3.2mm) Major Dia. X 0."
BES 0125
|
BLACK | 0.125 | 0.062 | 0.094 | 0.625 | 3.2 | 1.6 | 2.4 | 15.9 | 1000 |
$37.50/1000 Per BAG
|
||
|
0.187 (4.7mm) Major Dia. X 0."
BES 0187X0625
|
BLACK | 0.187 | 0.062 | 0.125 | 0.625 | 4.7 | 1.6 | 3.2 | 15.9 | 1000 |
$25.20/1000 Per BAG
|
||
|
0.187 (4.7mm) Major Dia. X 0."
BES 0187X0750
|
BLACK | 0.187 | 0.062 | 0.125 | 0.750 | 4.7 | 1.6 | 3.2 | 19.1 | 1000 |
$27.40/1000 Per BAG
|
||
|
0.197 (5.0mm) Major Dia. X 0."
BES 0197
|
BLACK | 0.197 | 0.049 | 0.123 | 1.100 | 5.0 | 1.2 | 3.1 | 28.0 | 1000 |
$30.96/1000 Per BAG
|
||
|
0.200 (5.1mm) Major Dia. X 0."
BES 0200
|
BLACK | 0.200 | 0.062 | 0.131 | 0.750 | 5.1 | 1.6 | 3.3 | 19.1 | 1000 |
$29.80/1000 Per BAG
|
||
|
0.216 (5.5mm) Major Dia. X 0."
BES 0216
|
BLACK | 0.216 | 0.047 | 0.132 | 1.5 | 5.5 | 1.2 | 3.3 | 38.1 | 1000 |
$41.40/1000 Per BAG
|
||
|
0.250 (6.4mm) Major Dia. X 0."
BES 0250X0750
|
BLACK | 0.250 | 0.125 | 0.188 | 0.750 | 6.4 | 3.2 | 4.8 | 19.1 | 1000 |
$31.50/1000 Per BAG
|
||
|
0.250 (6.4mm) Major Dia. X 0."
BES 0250X1000
|
BLACK | 0.250 | 0.125 | 0.188 | 1.000 | 6.4 | 3.2 | 4.8 | 25.4 | 1000 |
$39.20/1000 Per BAG
|
||
|
0.343 (8.7mm) Major Dia. X 0."
BES 0343X0625
|
BLACK | 0.343 | 0.187 | 0.265 | 0.625 | 8.7 | 4.7 | 6.7 | 15.9 | 1000 |
$44.10/1000 Per BAG
|
||
|
0.343 (8.7mm) Major Dia. X 0."
BES 0343X1000
|
BLACK | 0.343 | 0.187 | 0.265 | 1.000 | 8.7 | 4.7 | 6.7 | 25.4 | 1000 |
$59.70/1000 Per BAG
|
||
|
0.375 (9.5mm) Major Dia. X 0."
BES 0375X0500
|
BLACK | 0.375 | 0.250 | 0.313 | 0.500 | 9.5 | 6.4 | 8.0 | 12.7 | 500 |
$24.75/500 Per BAG
|
||
|
0.375 (9.5mm) Major Dia. X 0."
BES 0375X0750
|
BLACK | 0.375 | 0.250 | 0.313 | 0.750 | 9.5 | 6.4 | 8.0 | 19.1 | 500 |
$29.80/500 Per BAG
|
||
|
0.375 (9.5mm) Major Dia. X 0."
BES 0375X1250
|
BLACK | 0.375 | 0.125 | 0.250 | 1.250 | 9.5 | 3.2 | 6.4 | 31.8 | 500 |
$35.65/500 Per BAG
|
||
|
0.394 (10.0mm) Major Dia. X 0"
BES 0394
|
BLACK | 0.394 | 0.197 | 0.296 | 1.890 | 10.0 | 5.0 | 7.5 | 48.0 | 500 |
$66.70/500 Per BAG
|
||
|
0.437 (11.1mm) Major Dia. X 0"
BES 0437
|
BLACK | 0.437 | 0.250 | 0.344 | 1 | 25.4 | 11.1 | 6.4 | 8.7 | 500 |
$47.10/500 Per BAG
|
||
|
0.438 (11.1mm) Major Dia. X 0"
BES 0438
|
BLACK | 0.438 | 0.344 | 0.391 | 0.688 | 11.1 | 8.7 | 9.9 | 17.5 | 500 |
$44.80/500 Per BAG
|
||
|
0.500 (12.7mm) Major Dia. X 0"
BES 0500X0813
|
BLACK | 0.500 | 0.313 | 0.407 | 0.813 | 12.7 | 8.0 | 10.3 | 20.7 | 250 |
$33.18/250 Per BAG
|
||
|
0.500 (12.7mm) Major Dia. X 0"
BES 0500X1000
|
BLACK | 0.500 | 0.312 | 0.406 | 1.000 | 12.7 | 7.9 | 10.3 | 25.4 | 250 |
$33.18/250 Per BAG
|
||
|
0.563 (14.3mm) Major Dia. X 0"
BES 0563
|
BLACK | 0.563 | 0.375 | 0.469 | 1.000 | 14.3 | 9.5 | 11.9 | 25.4 | 250 |
$42.18/250 Per BAG
|
||
|
0.590 (15.0mm) Major Dia. X 0"
BES 0590
|
BLACK | 0.590 | 0.393 | 0.492 | 1.000 | 15.0 | 10.0 | 12.5 | 25.4 | 250 |
$40.90/250 Per BAG
|
||
|
0.625 (15.9mm) Major Dia. X 0"
BES 0625
|
BLACK | 0.625 | 0.437 | 0.531 | 0.813 | 15.9 | 11.1 | 13.5 | 20.7 | 250 |
$45.60/250 Per BAG
|
||
|
0.656 (16.7mm) Major Dia. X 0"
BES 0656
|
BLACK | 0.656 | 0.500 | 0.578 | 1.000 | 16.7 | 12.7 | 14.7 | 25.4 | 250 |
$51.03/250 Per BAG
|
||
|
0.669 (17.0mm) Major Dia. X 0"
BES 0669
|
BLACK | 0.669 | 0.510 | 0.590 | 1.000 | 17.0 | 13.0 | 15.0 | 25.4 | 250 |
$55.73/250 Per BAG
|
||
|
0.687 (17.4mm) Major Dia. X 0"
BES 0687
|
BLACK | 0.687 | 0.437 | 0.562 | 1.000 | 17.4 | 11.1 | 14.3 | 25.4 | 250 |
$52.65/250 Per BAG
|
||
|
0.748 (19.0mm) Major Dia. X 0"
BES 0748
|
BLACK | 0.748 | 0.550 | 0.649 | 1.000 | 19.0 | 14.0 | 16.5 | 25.4 | 250 |
$58.48/250 Per BAG
|
||
|
0.812 (20.6mm) Major Dia. X 0"
BES 0812
|
BLACK | 0.812 | 0.625 | 0.719 | 1.000 | 20.6 | 15.9 | 18.2 | 25.4 | 100 |
$31.76/100 Per BAG
|
||
|
0.938 (23.8mm) Major Dia. X 0"
BES 0938
|
BLACK | 0.938 | 0.708 | 0.823 | 1.000 | 23.8 | 18.0 | 20.9 | 25.4 | 100 |
$36.95/100 Per BAG
|
||
|
1.024 (26.0mm) Major Dia. X 0"
BES 1024
|
BLACK | 1.024 | 0.787 | 0.906 | 1.000 | 26.0 | 20.0 | 23.0 | 25.4 | 100 |
$44.45/100 Per BAG
|
||
|
1.063 (27.0mm) Major Dia. X 0"
BES 1063
|
BLACK | 1.063 | 0.905 | 0.984 | 1.000 | 27.0 | 23.0 | 25.0 | 25.4 | 100 |
$49.76/100 Per BAG
|
||
|
1.102 (28.0mm) Major Dia. X 0"
BES 1102X1000
|
BLACK | 1.102 | 0.945 | 1.024 | 1.00 | 28.0 | 24.0 | 26.0 | 30.0 | 100 |
$53.01/100 Per BAG
|
||
|
1.220 (31.0mm) Major Dia. X 0"
BES 1220X1181
|
BLACK | 1.220 | 0.984 | 1.102 | 1.181 | 31.0 | 25.0 | 28.0 | 25.4 | 100 |
$71.31/100 Per BAG
|
||
|
1.260 (32.0mm) Major Dia. X 1"
BES 1260
|
BLACK | 1.260 | 1.024 | 1.142 | 1.000 | 32.0 | 26.0 | 29.0 | 25.4 | 100 |
$62.79/100 Per BAG
|
||
|
1.338 (34.0mm) Major Dia. X 1"
BES 1338
|
BLACK | 1.338 | 1.063 | 1.201 | 1.000 | 34.0 | 27.0 | 30.5 | 25.4 | 100 |
$74.63/100 Per BAG
|
||
|
1.456 (37.0mm) Major Dia. X 1"
BES 1456
|
BLACK | 1.456 | 1.180 | 1.318 | 1.000 | 37.0 | 30.0 | 33.5 | 25.4 | 100 |
$91.21/100 Per BAG
|
||
|
1.535 (39.0mm) Major Dia. X 1"
BES 1535
|
BLACK | 1.535 | 1.220 | 1.378 | 1.000 | 39.0 | 31.0 | 35.0 | 25.4 | 50 |
$51.81/50 Per BAG
|
||
|
1.614 (41.0mm) Major Dia. X 1"
BES 1614
|
BLACK | 1.614 | 1.300 | 1.457 | 1.000 | 41.0 | 33.0 | 37.0 | 25.4 | 50 |
$52.58/50 Per BAG
|
||
|
1.693 (43.0mm) Major Dia. X 1"
BES 1693
|
BLACK | 1.693 | 1.417 | 1.555 | 1.000 | 43.0 | 36.0 | 39.5 | 25.400 | 50 |
$63.03/50 Per BAG
|
||
|
1.772 (45.0mm) Major Dia. X 1"
BES 1772
|
BLACK | 1.772 | 1.457 | 1.615 | 1.000 | 45.0 | 37.0 | 41.0 | 25.4 | 50 |
$68.43/50 Per BAG
|
||
|
1.810 (46.0mm) Major Dia. X 1"
BES 1810
|
BLACK | 1.810 | 1.496 | 1.653 | 1.000 | 46.0 | 38.0 | 42.0 | 25.4 | 50 |
$72.55/50 Per BAG
|
||
|
1.968 (50.0mm) Major Dia. X 1"
BES 1968
|
BLACK | 1.968 | 1.653 | 1.811 | 1.000 | 50.0 | 42.0 | 46.0 | 25.4 | 50 |
$82.71/50 Per BAG
|
||
|
2.205 (56.0mm) Major Dia. X 1"
BES 2205
|
BLACK | 2.205 | 1.890 | 2.048 | 1.000 | 25.4 | 56.0 | 52.0 | 52.0 | 25 |
$53.90/25 Per BAG
|
||
|
2.480 (63.0mm) Major Dia. X 1"
BES 2480
|
BLACK | 2.480 | 1.968 | 2.224 | 1.000 | 63.0 | 50.0 | 56.5 | 25.4 | 25 |
$60.22/25 Per BAG
|
||
|
2.520 (64.0mm) Major Dia. X 2"
BES 2520
|
BLACK | 2.520 | 2.125 | 2.323 | 1.000 | 64.0 | 54.0 | 59.0 | 25.4 | 25 |
$64.25/25 Per BAG
|
||
|
2.677 (68.0mm) Major Dia. X 2"
BES 2677
|
BLACK | 2.677 | 2.283 | 2.480 | 1.000 | 68.0 | 58.0 | 63.0 | 25.4 | 25 |
$72.55/25 Per BAG
|
||
|
2.953 (75.0mm) Major Dia. X 2"
BES 2953
|
BLACK | 2.953 | 2.440 | 2.697 | 1.377 | 75.0 | 62.0 | 68.5 | 35.0 | 25 |
$100.39/25 Per BAG
|
||
|
3.543 (90.0mm) Major Dia. X 2"
BES 3543
|
BLACK | 3.543 | 2.953 | 3.248 | 1.535 | 90.0 | 75.0 | 82.5 | 39.0 | 10 |
$60.23/10 Per BAG
|
||
|
4.055 (103.0mm) Major Dia. X "
BES 4055
|
BLACK | 4.055 | 3.267 | 3.661 | 1.535 | 103.0 | 83.0 | 93.0 | 39.0 | 10 |
$80.81/10 Per BAG
|
