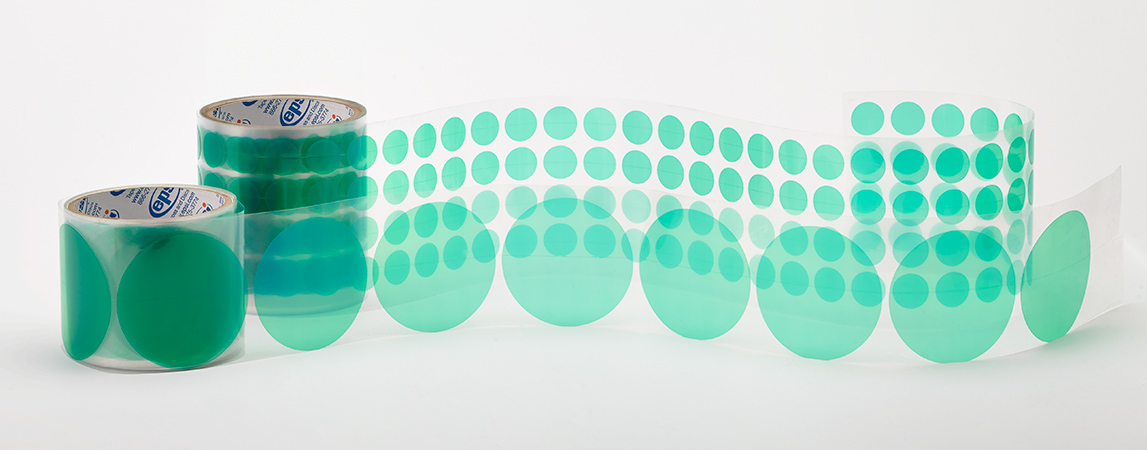

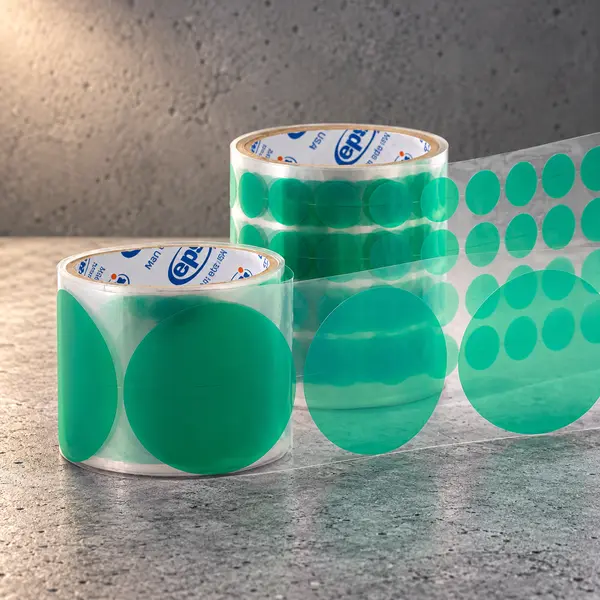

AD12 Series - Green Poly Discs
- Maximum Temperature: 400°F
- Removes Cleanly After Use with No Shrinkage
Product Description:
AD12 is a polyester film, single coated with a silicone pressure sensitive adhesive. Tape is laminated and discs are rotary die-cut on a specially formulated fluorosilicone liner.
Construction:
- Total Thickness 3.5 mils (w/o liner)
- Adhesive Thickness 1.5 mils
- Carrier Thickness 2.0 mils
- Adhesive Type Silicone
- Carrier Type Polyester
- Color Green
Specifications:
- Maximum Temperature (F) 400
- Tensile Strength (lbs/inch) 50
- Elongation (%) 110
- Peel Adhesion (oz/inch) 35
| Part Number | Diameter - IN | Standard Diameter - IN | Diameter - MM | Discs per Roll | Unit | Purchase | |
|---|---|---|---|---|---|---|---|
|
0.125 Green Polyester Disc on"
AD12-0032
|
0.125 | 1/8 in | 3.2 | 2000 |
$12.30/ROL
|
||
|
0.188 Green Polyester Disc on"
AD12-0048
|
0.188 | 3/16 in | 4.8 | 2000 |
$13.36/ROL
|
||
|
0.313 Green Polyester Disc on"
AD12-0079
|
0.313 | 5/16 in | 7.9 | 2000 |
$16.56/ROL
|
||
|
0.375 Green Polyester Disc on"
AD12-0095
|
0.375 | 3/8 in | 9.5 | 2000 |
$20.67/ROL
|
||
|
0.393 Green Polyester Disc on"
AD12-0100
|
0.394 | x | 10.0 | 2000 |
$21.80/ROL
|
||
|
0.438 Green Polyester Disc on"
AD12-0111
|
0.438 | 7/16 in | 11.1 | 2000 |
$24.02/ROL
|
||
|
0.563 Green Polyester Disc on"
AD12-0143
|
0.563 | 9/16 in | 14.3 | 2000 |
$33.61/ROL
|
||
|
0.688 Green Polyester Disc on"
AD12-0174
|
0.685 | 11/16 in | 17.4 | 1000 |
$26.17/ROL
|
||
|
0.750 Green Polyester Disc on"
AD12-0190
|
0.750 | 3/4 in | 19.0 | 1000 |
$26.89
$26.88/ROL
|
||
|
0.750 Green Polyester Disc on"
AD12-0190 MEGA
|
0.750 | 3/4 in | 19.0 | 5000 |
$107.56/ROL
|
||
|
0.875 Green Polyester Disc on"
AD12-0222
|
0.875 | 7/8 in | 22.2 | 1000 |
$33.09/ROL
|
||
|
0.933" (23.7mm) Green Disc
AD12-0237
|
0.937 | 15/16 in | 23.7 | 500 |
$22.82/ROL
|
||
|
1.000 Green Polyester Disc on"
AD12-0254 MEGA
|
1.000 | 1 in | 25.4 | 2500 |
$98.32/ROL
|
||
|
1.125 Green Polyester Disc on"
AD12-0286
|
1.125 | 1 1/8 in | 28.6 | 500 |
$26.89
$26.88/ROL
|
||
|
1.188 Green Polyester Disc on"
AD12-0302
|
1.187 | 1 3/16 in | 30.2 | 500 |
$30.66/ROL
|
||
|
1.250 Green Polyester Disc on"
AD12-0318
|
1.250 | 1 1/4 in | 31.8 | 500 |
$31.02
$31.01/ROL
|
||
|
1.375 Green Polyester Disc on"
AD12-0349
|
1.375 | 1 3/8in | 34.9 | 500 |
$37.23/ROL
|
||
|
1.438 Green Polyester Disc on"
AD12-0365
|
1.438 | 1 7/16 in | 36.5 | 500 |
$40.98/ROL
|
||
|
1.625 Green Polyester Disc on"
AD12-0413
|
1.625 | 1 5/8 in | 41.3 | 500 |
$58.56/ROL
|
||
|
1.750 Green Polyester Disc on"
AD12-0445
|
1.750 | 1 3/4 in | 44.5 | 500 |
$62.04/ROL
|
||
|
1.813 Green Polyester Disc on"
AD12-0460
|
1.813 | x | 46 | 500 |
$69.60/ROL
|
||
|
1.875 Green Polyester Disc on"
AD12-0476
|
1.875 | 1 7/8 in | 47.6 | 500 |
$72.87/ROL
|
||
|
2.000 Green Polyester Disc on"
AD12-0508
|
2.000 | 2 in | 50.8 | 250 |
$36.18/ROL
|
||
|
2.250 Green Polyester Disc on"
AD12-0572 MEGA
|
2.250 | 2 1/4 in | 57.2 | 1250 |
$165.49/ROL
|
||
|
2.250 Green Polyester Disc on"
AD12-0572
|
2.250 | 2 1/4 in | 57.2 | 250 |
$41.38
$41.37/ROL
|
||
|
2.500 Green Polyester Disc on"
AD12-0635
|
2.500 | 2 1/2 in | 63.5 | 250 |
$51.69/ROL
|
||
|
2.500 Green Polyester Disc on"
AD12-0635 MEGA
|
2.500 | 2 1/2 in | 63.5 | 1250 |
$206.76/ROL
|
||
|
2.625 Green Polyester Disc on"
AD12-0667
|
2.625 | 2 5/8 in | 66.7 | 250 |
$57.42/ROL
|
||
|
2.750 Green Polyester Disc on"
AD12-0699
|
2.750 | 2 3/4 in | 69.9 | 250 |
$62.06/ROL
|
||
|
3.500 Green Polyester Disc on"
AD12-0889
|
3.500 | 3 1/2 in | 88.9 | 100 |
$33.09/ROL
|
||
|
3.750 Green Polyester Disc on"
AD12-0952
|
3.750 | 3 3/4 in | 95.2 | 100 |
$38.10/ROL
|
||
|
4.250 Green Polyester Disc on"
AD12-1079
|
4.250 | 4 1/4 in | 107.9 | 100 |
$47.71
$47.70/ROL
|
||
|
5.000 Green Polyester Disc on"
AD12-1270
|
5.000 | 5 in | 127.0 | 100 |
$63.57/ROL
|
||
|
5.500 Green Polyester Disc on"
AD12-1397
|
5.500 | 5 1/2 in | 139.7 | 100 |
$84.96/ROL
|
||
|
6.000 Green Polyester Disc on"
AD12-1524
|
6.000 | 6 in | 152.4 | 100 |
$86.76/ROL
|
