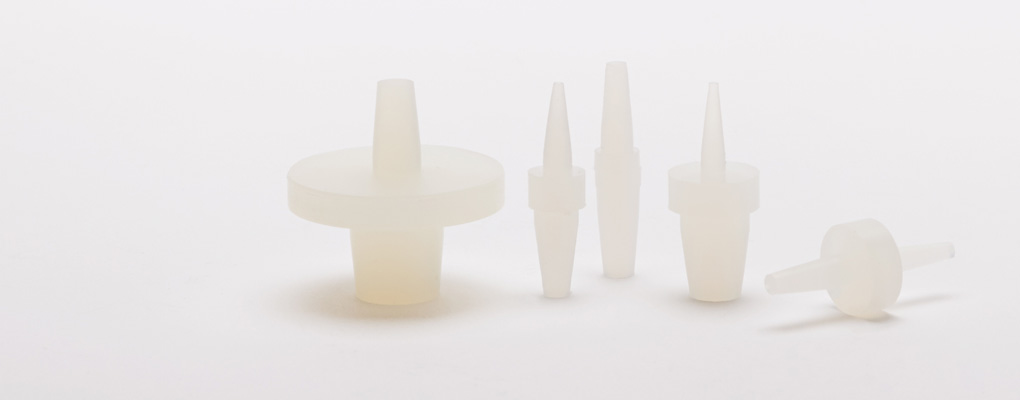

WP Series - Washer Plugs
- Tapered design for easy insertion.
- Washer masks grounding area around holes.
- One plug can be used to plug two different hole diameters.
- Second plug acts as handle.
Product Description:
Our Washer Plug (WP) sizes are conveniently grouped first by washer diameter, and then by the larger plug diameter. Many other combinations are possible. If you don’t see the size you need listed, call an EPSI representative for other options.
Typical Applications:
- Plugging threaded and non-threaded blind holes with grounding area. Powder coated banjo connectors.
| Part Number | COLOR | MJD1 - IN | MJD2 - IN | MND1 - IN | MND2 - IN | PL1 - IN | PL2 - IN | WD - IN | WT - IN | MJD1 - MM | MJD2 - MM | MND1 - MM | MND2 - MM | PL1 - MM | PL2 - MM | WD MM | WT - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.103 Plug Dia. #1 X 0.250" W"
WP103-250-130
|
Clear | 0.103 | 0.130 | 0.069 | 0.103 | 0.500 | 0.550 | 0.250 | 0.200 | 206 | 3.3 | 1.8 | 2.6 | 12.7 | 12.7 | 6.4 | 5.1 | 1000 |
$74.80/1000 Per BAG
|
||
|
0.130 Plug Dia. #1 X 0.312" W"
WP130-312-155
|
Clear | 0.130 | 0.155 | 0.069 | 0.094 | 0.500 | 0.500 | 0.312 | 0.200 | 3.3 | 3.9 | 1.8 | 2.4 | 12.7 | 12.7 | 7.9 | 5.1 | 1000 |
$76.88/1000 Per BAG
|
||
|
0.130 Plug Dia. #1 X 0.500" W"
WP130-500-375
|
Clear | 0.130 | 0.375 | 0.069 | 0.314 | 0.500 | 0.500 | 0.500 | 0.200 | 3.3 | 9.5 | 1.8 | 8.0 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$34.29/250 Per BAG
|
||
|
0.140 Plug Dia. #1 X 0.250" W"
WP140-250-180
|
Clear | 0.140 | 0.180 | 0.079 | 0.119 | 0.500 | 0.500 | 0.250 | 0.200 | 3.6 | 4.6 | 2.0 | 3.0 | 12.7 | 12.7 | 6.4 | 5.1 | 1000 |
$60.78/1000 Per BAG
|
||
|
0.140 Plug Dia. #1 X 0.375" W"
WP140-375-200
|
Clear | 0.140 | 0.200 | 0.079 | 0.139 | 0.500 | 0.500 | 0.375 | 0.200 | 3.6 | 5.1 | 2.0 | 3.5 | 12.7 | 12.7 | 9.5 | 5.1 | 500 |
$38.96/500 Per BAG
|
||
|
0.180 Plug Dia. #1 X 0.250" W"
WP180-250-238
|
Clear | 0.180 | 0.238 | 0.119 | 0.177 | 0.500 | 0.500 | 0.250 | 0.200 | 4.6 | 6.0 | 3.0 | 4.5 | 12.7 | 12.7 | 6.0 | 5.1 | 1000 |
$82.15/1000 Per BAG
|
||
|
0.180 Plug Dia. #1 X 0.375" W"
WP180-375-200
|
Clear | 0.180 | 0.200 | 0.119 | 0.139 | 0.500 | 0.500 | 0.375 | 0.200 | 4.6 | 5.1 | 3.0 | 3.5 | 12.7 | 12.7 | 9.5 | 5.1 | 500 |
$47.89/500 Per BAG
|
||
|
0.180 Plug Dia. #1 X 0.500" W"
WP180-500-200
|
Clear | 0.180 | 0.200 | 0.119 | 0.139 | 0.500 | 0.500 | 0.500 | 0.200 | 4.6 | 5.1 | 3.0 | 3.5 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$36.69/250 Per BAG
|
||
|
0.180 Plug Dia. #1 X 0.500" W"
WP180-500-238
|
Clear | 0.180 | 0.238 | 0.119 | 0.238 | 0.500 | 0.500 | 0.500 | 0.200 | 4.6 | 6.0 | 3.0 | 6.0 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$27.27/250 Per BAG
|
||
|
0.200 Plug Dia. #1 X 0.250" W"
WP200-250-238
|
Clear | 0.200 | 0.238 | 0.139 | 0.177 | 0.500 | 0.500 | 0.250 | 0.200 | 5.1 | 6.0 | 3.5 | 4.5 | 12.7 | 12.7 | 6.4 | 5.1 | 1000 |
$81.01/1000 Per BAG
|
||
|
0.200 Plug Dia. #1 X 0.312" W"
WP200-312-238
|
Clear | 0.200 | 0.238 | 0.139 | 0.177 | 0.500 | 0.500 | 0.312 | 0.200 | 5.1 | 6.0 | 3.5 | 4.5 | 12.7 | 12.7 | 7.9 | 5.1 | 1000 |
$77.92/1000 Per BAG
|
||
|
0.218 Plug Dia. #1 X 0.716" W"
WP218-716-281
|
Clear | 0.218 | 0.281 | 0.157 | 0.220 | 0.500 | 0.500 | 0.716 | 0.200 | 5.5 | 7.1 | 4.0 | 5.5 | 12.7 | 12.7 | 18.2 | 5.1 | 100 |
$14.80/100 Per BAG
|
||
|
0.238 Plug Dia. #1 X 0.375" W"
WP238-375-250
|
Clear | 0.238 | 0.250 | 0.177 | 0.1789 | 0.500 | 0.500 | 0.375 | 0.200 | 6.0 | 6.4 | 4.5 | 4.8 | 12.7 | 12.7 | 9.5 | 5.1 | 500 |
$53.72/500 Per BAG
|
||
|
0.238 Plug Dia. #1 X 0.500" W"
WP238-500-250
|
Clear | 0.238 | 0.250 | 0.119 | 0.177 | 0.500 | 0.500 | 0.500 | 0.200 | 6.0 | 6.4 | 3.0 | 4.5 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$35.04/250 Per BAG
|
||
|
0.265 Plug Dia. #1 X 1.180" W"
WP265-1180-515
|
Clear | 0.265 | 0.515 | 0.204 | 0.454 | 0.500 | 0.500 | 1.18 | 0.200 | 6.7 | 13.1 | 5.1 | 11.5 | 12.7 | 12.7 | 30.0 | 5.1 | 50 |
$16.32/50 Per BAG
|
||
|
0.265 Plug Dia. #1 X 1.180" W"
WP265-1180-640
|
Clear | 0.265 | 0.640 | 0.204 | 0.579 | 0.500 | 0.500 | 1.18 | 0.200 | 6.7 | 16.3 | 5.1 | 14.7 | 12.7 | 12.7 | 30.0 | 5.1 | 50 |
$15.97/50 Per BAG
|
||
|
0.275 Plug Dia. #1 X 0.375" W"
WP275-375-375
|
Clear | 0.275 | 0.375 | 0.177 | 0.189 | 0.5 | 0.5 | 0.375 | 0.2 | 6.985 | 9.525 | 4.4958 | 4.8006 | 12.7 | 12.7 | 9.525 | 5.08 | 500 |
$66.21/500 Per BAG
|
||
|
0.331 Plug Dia. #1 X 0.787" W"
WP331-787-331
|
Clear | 0.331 | 0.331 | 0.270 | 0.270 | 0.500 | 0.500 | 0.787 | 0.200 | 8.4 | 8.4 | 6.9 | 6.9 | 12.7 | 12.7 | 20.0 | 5.1 | 100 |
$21.82/100 Per BAG
|
||
|
0.346 Plug Dia. #1 X 0.625" W"
WP346-625-413
|
Clear | 0.346 | 0.413 | 0.291 | 0.354 | 0.500 | 0.500 | 0.625 | 0.200 | 8.8 | 10.5 | 7.4 | 9.0 | 12.7 | 12.7 | 15.9 | 5.1 | 250 |
$51.37/250 Per BAG
|
||
|
0.350 Plug Dia. #1 X 0.500" W"
WP350-500-420
|
Clear | 0.350 | 0.420 | 0.289 | 0.359 | 0.500 | 0.500 | 0.500 | 0.200 | 8.9 | 10.7 | 7.3 | 9.1 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$44.79/250 Per BAG
|
||
|
0.375 Plug Dia. #1 X 0.787" W"
WP375-787-512
|
Clear | 0.375 | 0.512 | 0.394 | 0.512 | 0.500 | 0.500 | 0.787 | 0.200 | 9.5 | 13.0 | 8.0 | 13.0 | 12.7 | 12.7 | 20.0 | 5.1 | 100 |
$23.36/100 Per BAG
|
||
|
0.390 Plug Dia. #1 X 0.500" W"
WP390-500-455
|
Clear | 0.390 | 0.455 | 0.329 | 0.394 | 0.500 | 0.500 | 0.500 | 0.200 | 9.9 | 11.6 | 8.4 | 10.0 | 12.7 | 12.7 | 12.7 | 5.1 | 250 |
$52.56/250 Per BAG
|
||
|
0.551 Plug Dia. #1 X 0.787" W"
WP551-787-551
|
Clear | 0.551 | 0.551 | 0.490 | 0.490 | 0.500 | 0.500 | 0.787 | 0.200 | 14.0 | 14.0 | 12.4 | 12.4 | 12.7 | 12.7 | 20.0 | 5.1 | 100 |
$29.60/100 Per BAG
|
||
|
0.551 Plug Dia. #1 X 0.787" W"
WP551-787-689
|
Clear | 0.551 | 0.689 | 0.490 | 0.628 | 0.500 | 0.500 | 0.787 | 0.200 | 14.0 | 17.5 | 12.4 | 16.0 | 12.7 | 12.7 | 20.0 | 5.1 | 100 |
$31.15/100 Per BAG
|
