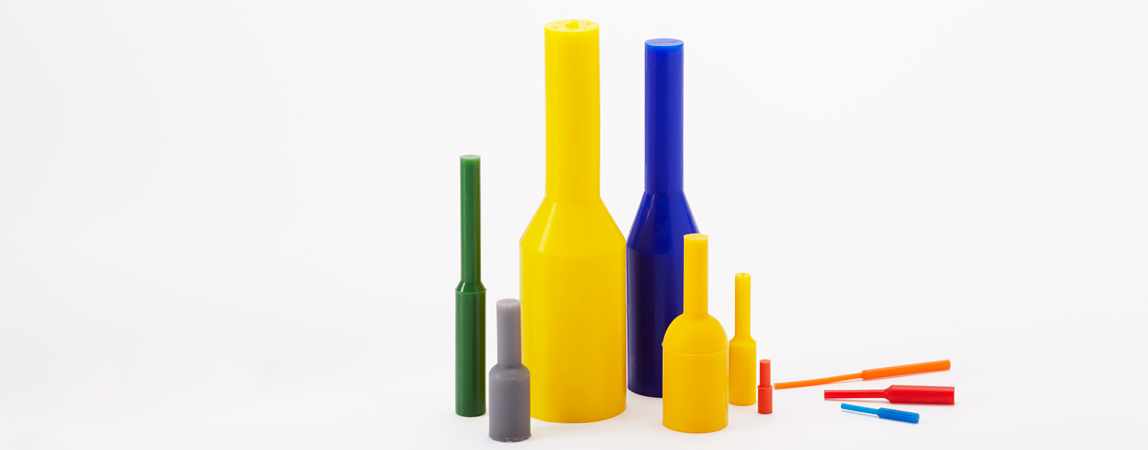

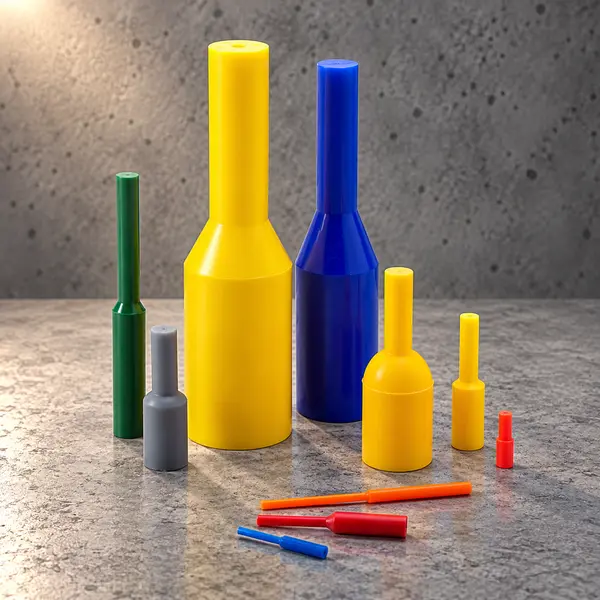

SPP Series - Silicone Pull Plugs
- When Pulled Through Holes, Large Diameter Compresses Until Released, Providing for a Tight Seal
- Chamfered Neck and Smaller Pull-Tab Diameter Aid Insertion
Product Description:
Our Silicone Pull Plug (SPP) product line is the industry standard solution for threaded and non-threaded through holes in powder coating and E-coating applications. With many sizes available, holes from 0.050” to 2.250” in diameter can easily be plugged.
Helpful Hints:
- When plugging a hole, make sure that the major diameter of the plug is larger than the diameter of the hole being plugged by at least 4%.
- Keep in mind any interference issues that will be created by the Pull-Tab being exposed after plug is inserted.
- Not recommended for holes with a lead-in chamfer or a countersink that require protection from paint. For these applications, EPSI recommends the Weld Nut Pull Plug (WPP) or the Washer Plug (WP) lines.
| Part Number | COLOR | MJD - IN | PL - IN | SD - IN | OL - IN | MJD - MM | PL - MM | OL - MM | SD - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.156 X 0.093 X 1.250 CLEAR
SPP 0156X1250-C
|
$66.33/BAG
|
||||||||||||
|
0.073 X 0.047 tag X 0.625L Gre
SPP 0073X0625-G
|
GREEN | 0.073 | 0.625 | 0.047 | 1.273 | 1.9 | 15.9 | 32.3 | 1.2 | 500 |
$39.17/BAG
|
||
|
0.091 X 0.062 tag X 0.625L Yel
SPP 0091X0625-L
|
YELLOW | 0.091 | 0.625 | 0.062 | 1.275 | 2.3 | 15.9 | 32.4 | 1.6 | 500 |
$61.93/BAG
|
||
|
0.091 X 0.052 tag X 1.000L Yel
SPP 0091X1000-L
|
YELLOW | 0.091 | 1.000 | 0.052 | 2.034 | 2.3 | 25.4 | 51.7 | 1.3 | 500 |
$66.26/BAG
|
||
|
0.093 X 0.062 tag X 0.625L Sil
SPP 0093X0625
|
GRAY | 0.093 | 0.625 | 0.062 | 1.277 | 2.4 | 15.9 | 32.4 | 1.6 | 500 |
$67.21/BAG
|
||
|
0.093 X 0.062 tag X 0.625L Gre
SPP 0093X0625-Y
|
$67.21/BAG
|
||||||||||||
|
0.105" Major Diameter X 0.070"
SPP 0105X0500-U
|
$65.81/BAG
|
||||||||||||
|
0.105 X 0.070 tag X 1.000L Blu
SPP 0105X1000-U
|
BLUE | 0.105 | 1.000 | 0.070 | 2.030 | 2.7 | 25.4 | 51.6 | 1.8 | 500 |
$66.32/BAG
|
||
|
0.109 X 0.062 tag X 0.625L Red
SPP 0109X0625-R
|
RED | 0.109 | 0.625 | 0.062 | 1.291 | 2.8 | 15.9 | 32.8 | 1.6 | 500 |
$67.12/BAG
|
||
|
0.109 X 0.062 tag X 1.000L Red
SPP 0109X1000-R
|
RED | 0.109 | 1.000 | 0.062 | 2.041 | 2.8 | 25.4 | 51.8 | 1.6 | 500 |
$68.40/BAG
|
||
|
0.118 X 0.082 tag X 1.000L Sil
SPP 0118X1000
|
CLEAR | 0.118 | 1.000 | 0.082 | 2.031 | 3.0 | 25.4 | 51.6 | 2.1 | 500 |
$71.93/BAG
|
||
|
0.125 X 0.082 tag X 0.625L Whi
SPP 0125X0625-W
|
WHITE | 0.125 | 0.625 | 0.082 | 1.287 | 3.2 | 15.9 | 32.7 | 2.1 | 500 |
$71.93/BAG
|
||
|
0.130 X 0.082 tag X 0.625L Pin
SPP 0130X0625-N
|
PINK | 0.130 | 0.625 | 0.082 | 1.292 | 3.3 | 15.9 | 32.8 | 2.1 | 500 |
$70.45/BAG
|
||
|
0.130 X 0.082 tag X 1.000L Sil
SPP 0130X1000
|
CLEAR | 0.130 | 1.000 | 0.082 | 2.042 | 3.3 | 25.4 | 51.9 | 2.1 | 500 |
$73.72/BAG
|
||
|
0.140 X 0.082 tag X 0.625L Gre
SPP 0140X0625-G
|
GREEN | 0.140 | 0.625 | 0.082 | 1.300 | 3.6 | 15.9 | 33.0 | 2.1 | 500 |
$68.83/BAG
|
||
|
0.145 X 0.093 tag X 1.250L Bla
SPP 0145X1250-B
|
BLACK | 0.145 | 1.25 | 0.093 | 2.545 | 3.7 | 31.8 | 64.6 | 2.4 | 500 |
$82.57/BAG
|
||
|
0.154 X 0.082 tag X 0.625L Yel
SPP 0154X0625-L
|
YELLOW | 0.154 | 0.625 | 0.082 | 1.312 | 3.9 | 15.9 | 33.3 | 2.1 | 500 |
$74.10/BAG
|
||
|
0.156 X 0.082 tag X 0.625L Gre
SPP 0156X0625-Y
|
GRAY | 0.156 | 0.625 | 0.082 | 1.314 | 4.0 | 15.9 | 33.4 | 2.1 | 500 |
$75.92/BAG
|
||
|
0.156 X 0.093 tag X 1.250L Gre
SPP 0156X1250-Y
|
COLOR | 0.156 | 1.25 | 0.093 | 2.555 | 4.0 | 31.8 | 64.9 | 2.4 | 500 |
$82.57/BAG
|
||
|
0.158 Plug Dia. X 0.093 Tag D"
SPP 0158X1000-O
|
Orange | 0.158 | 1.000 | 0.093 | 2.056 | 4.0 | 25.4 | 52.2 | 2.4 | 500 |
$87.76/BAG
|
||
|
0.158 Plug Dia. X 1.500" Plug"
SPP 0158X1500-O
|
Orange | 0.158 | 1.500 | 0.093 | 3.056 | 4.0 | 38.1 | 77.6 | 2.4 | 500 |
$87.76/BAG
|
||
|
0.160 Major Dia. X 0.118" Min"
SPP 0160X0780
|
CLEAR | 0.160 | 0.780 | 0.118 | 1.596 | 4.1 | 19.8 | 40.5 | 3.0 | 500 |
$82.57/BAG
|
||
|
0.162 X 0.093 tag X 0.625L Blu
SPP 0162X0625-U
|
BLUE | 0.162 | 0.625 | 0.093 | 1.310 | 4.1 | 15.9 | 33.3 | 2.4 | 500 |
$77.23/BAG
|
||
|
0.175 Plug Dia. X 0.123" TagD"
SPP 0175X1250-P
|
Purple | 0.175 | 1.25 | 0.123 | 2.545 | 4.4 | 31.8 | 64.6 | 3.1 | 500 |
$87.76/BAG
|
||
|
0.187 X 0.110 tag X 0.625L Red
SPP 0187X0625-R
|
RED | 0.187 | 0.625 | 0.110 | 1.317 | 4.7 | 15.9 | 33.5 | 2.8 | 500 |
$87.76/BAG
|
||
|
0.190 X 0.140 tag X 1.250L Yel
SPP 0190X1250-L
|
YELLOW | 0.190 | 1.250 | 0.140 | 2.574 | 4.8 | 31.8 | 65.4 | 3.6 | 500 |
$90.35/BAG
|
||
|
0.195 X 0.110 tag X 0.625L Whi
SPP 0195X0625-W
|
WHITE | 0.195 | 0.625 | 0.110 | 1.324 | 5.0 | 15.9 | 33.6 | 2.8 | 500 |
$92.24/BAG
|
||
|
0.195 X 0.110 tag X 1.250L Whi
SPP 0195X1250-W
|
WHITE | 0.195 | 1.250 | 0.110 | 2.574 | 5.0 | 31.8 | 65.4 | 2.8 | 500 |
$85.04/BAG
|
||
|
0.197 X 0.110 tag X 1.000L Rus
SPP 0197X1000-F
|
RUSTY | 0.197 | 1.000 | 0.110 | 2.075 | 5.0 | 25.4 | 52.7 | 2.8 | 500 |
$85.04/BAG
|
||
|
0.218 X 0.110 tag X 1.000L Sil
SPP 0218X1000
|
CLEAR | 0.218 | 1.000 | 0.110 | 2.094 | 5.5 | 25.4 | 53.2 | 2.8 | 500 |
$94.98/BAG
|
||
|
0.225 X 0.125 tag X 1.000L Pin
SPP 0225X1000-N
|
PINK | 0.225 | 1.000 | 0.125 | 2.087 | 5.7 | 25.4 | 53.0 | 3.2 | 500 |
$97.75/BAG
|
||
|
0.225 X 0.120 tag X 1.181L Pin
SPP 0225X1181-N
|
PINK | 0.225 | 1.181 | 0.120 | 2.453 | 5.7 | 30.0 | 62.3 | 3.0 | 500 |
$85.04/BAG
|
||
|
0.236 X 0.177 tag X 0.400L Ora
SPP 0236X0400-O
|
Orange | 0.236 | 0.400 | 0.177 | 0.851 | 6.0 | 10.2 | 21.6 | 4.5 | 500 |
$85.04/BAG
|
||
|
0.236 Plug Dia. X 0.165" TagD"
SPP 0236X1250-O
|
Orange | 0.236 | 1.250 | 0.165 | 2.561 | 6.0 | 31.8 | 65.0 | 4.2 | 500 |
$91.76/BAG
|
||
|
0.244 X 0.170 tag X 1.250L Pur
SPP 0244X1250-P
|
Purple | 0.244 | 1.250 | 0.170 | 2.564 | 6.2 | 31.8 | 65.1 | 4.3 | 500 |
$102.68/BAG
|
||
|
0.257 X 0.130 tag X 1.000L Gre
SPP 0257-G
|
GREEN | 0.257 | 1.000 | 0.130 | 2.11 | 6.5 | 25.4 | 53.6 | 3.3 | 500 |
$102.68/BAG
|
||
|
0.260 X 0.130 tag X 1.000L Blu
SPP 0260-U
|
BLUE | 0.260 | 1.000 | 0.130 | 2.113 | 6.6 | 25.4 | 53.7 | 3.3 | 500 |
$91.76/BAG
|
||
|
0.265 Plug Dia. X 0.186" TagD"
SPP 0265-Y
|
GRAY | 0.265 | 1.250 | 0.186 | 2.568 | 6.7 | 31.8 | 65.2 | 4.7 | 500 |
$93.91/BAG
|
||
|
0.275 Plug Diameter X 0.130" "
SPP 0275-L
|
YELLOW | 0.275 | 0.950 | 0.130 | 2.026 | 7.0 | 24.1 | 51.5 | 3.3 | 500 |
$102.68/BAG
|
||
|
0.278 Diam X 2.00" Long Pull "
SPP 0278X2000-W
|
$201.46/BAG
|
||||||||||||
|
0.281 Plug Diameter X 0.138" "
SPP 0281-R
|
RED | 0.281 | 1.000 | 0.138 | 2.124 | 7.1 | 25.4 | 53.9 | 3.5 | 500 |
$108.96/BAG
|
||
|
0.312 Plug Diameter X 0.147 t"
SPP 0312X1000-Y
|
GRAY | 0.312 | 1.000 | 0.147 | 2.143 | 7.9 | 25.4 | 54.4 | 3.7 | 500 |
$107.93/BAG
|
||
|
0.312 X 0.187 tag X 1.250L Gre
SPP 0312X1250-Y
|
GRAY | 0.312 | 1.250 | 0.187 | 2.608 | 7.9 | 31.8 | 66.2 | 4.7 | 500 |
$112.88/BAG
|
||
|
0.332 Plug Diameter X 0.750" "
SPP 0332-U
|
BLUE | 0.332 | 0.750 | 0.050 | 1.79 | 8.4 | 31.8 | 52.6 | 6.4 | 500 |
$118.89/BAG
|
||
|
0.335 X 0.157 tag X 1.000L Whi
SPP 0335-W
|
WHITE | 0.335 | 1.000 | 0.157 | 2.154 | 8.5 | 25.4 | 54.7 | 4.0 | 500 |
$111.32/BAG
|
||
|
0.350 X 0.157 tag X 0.900L Sil
SPP 0350
|
CLEAR | 0.350 | 0.900 | 0.157 | 1.967 | 8.9 | 22.9 | 50.0 | 4.0 | 500 |
$108.45/BAG
|
||
|
0.370 Plug X 0.187" Tag X 0.4"
SPP 0370
|
Hollow Clear | 0.370 | 0.454 | 0.187 | 2.520 | 9.4 | 11.5 | 64.0 | 4.7 | 250 |
$61.35/BAG
|
||
|
0.375 X 0.157 tag X 1.000L Yel
SPP 0375-L
|
YELLOW | 0.375 | 1.000 | 0.157 | 2.189 | 9.5 | 25.4 | 55.6 | 4.0 | 250 |
$58.10/BAG
|
||
|
0.388 X 0.157 tag X 1.000L Red
SPP 0388-R
|
RED | 0.388 | 1.000 | 0.157 | 2.2 | 9.9 | 25.4 | 55.9 | 4.0 | 250 |
$59.83/BAG
|
||
|
0.400 X 0.157 tag X 1.000L Sil
SPP 0400X1000
|
CLEAR | 0.400 | 1.000 | 0.157 | 2.334 | 10.2 | 25.4 | 59.3 | 4.0 | 250 |
$62.63/BAG
|
||
|
0.414 X 0.157 tag X 1.000L Gre
SPP 0414-G
|
GREEN | 0.414 | 1 | 0.157 | 2.223 | 10.5 | 25.4 | 56.5 | 4.0 | 250 |
$63.19/BAG
|
||
|
0.437 Plug Dia. X 0.306" TagD"
SPP 0437-F
|
RUSTY | 0.437 | 1.250 | 0.306 | 2.113 | 11.1 | 31.8 | 53.7 | 7.8 | 250 |
$81.38/BAG
|
||
|
0.440'' Plug dia. X 2.000'' Bo
SPP 0440X2000-B
|
BLACK | 0.440 | 2.000 | 0.157 | 4.245 | 11.2 | 50.8 | 107.8 | 4.0 | 250 |
$145.82/BAG
|
||
|
0.445 X 0.255 tag X 1.000L Gre
SPP 0445-Y
|
GRAY | 0.445 | 1.000 | 0.255 | 2.165 | 11.3 | 25.4 | 55.0 | 6.5 | 250 |
$73.95/BAG
|
||
|
0.468 MD X 0.250"TD X 1.250"p"
SPP 0468-U
|
BLUE | 0.468 | 1.250 | 0.250 | 2.689 | 11.9 | 31.8 | 68.3 | 6.4 | 250 |
$87.89/BAG
|
||
|
0.500 X 0.250 tag X 1.000L Whi
SPP 0500-W
|
WHITE | 0.500 | 1.000 | 0.250 | 2.217 | 12.7 | 25.4 | 56.3 | 6.4 | 100 |
$33.72/BAG
|
||
|
0.530 X 0.250 tag X 1.000L Pin
SPP 0530-N
|
PINK | 0.530 | 1.000 | 0.250 | 2.242 | 13.5 | 25.4 | 56.9 | 6.4 | 100 |
$36.68/BAG
|
||
|
0.551X 0.250 tag X 1.181 plugL
SPP 0551
|
CLEAR | 0.551 | 1.181 | 0.250 | 2.623 | 14.0 | 30.0 | 66.6 | 6.4 | 100 |
$42.71/BAG
|
||
|
0.580 Plug Dia. X 0.315" Tag "
SPP 0580-F
|
RUSTY | 0.580 | 1.500 | 0.315 | 3.229 | 14.7 | 38.1 | 82.0 | 8.0 | 100 |
$55.13/BAG
|
||
|
0.590 Plug Dia. X 0.250 Tag D"
SPP 0590-R
|
RED | 0.590 | 1.000 | 0.250 | 2.294 | 15.0 | 25.4 | 58.3 | 6.4 | 100 |
$46.54/BAG
|
||
|
0.612 X 0.250 tag X 1.000L Yel
SPP 0612-L
|
YELLOW | 0.612 | 1.000 | 0.250 | 2.314 | 15.5 | 25.4 | 58.8 | 6.4 | 100 |
$49.61/BAG
|
||
|
0.640 X 0.375 tag X 1.000L Gre
SPP 0640X1000-Y
|
GRAY | 0.640 | 1.000 | 0.375 | 2.229 | 16.3 | 25.4 | 56.6 | 9.5 | 100 |
$55.92/BAG
|
||
|
0.640 X 0.375 tag X 1.772L Sil
SPP 0640X1772
|
CLEAR | 0.640 | 1.772 | 0.375 | 3.773 | 16.3 | 45.0 | 95.8 | 9.5 | 100 |
$80.47/BAG
|
||
|
0.700 X 0.375 tag X 1.250L Blu
SPP 0700X1250-U
|
BLUE | 0.700 | 1.250 | 0.375 | 2.781 | 17.8 | 31.8 | 70.6 | 9.5 | 100 |
$69.21/BAG
|
||
|
0.700 Plug Dia. X 0.371" TagD"
SPP 0700X1500-U
|
BLUE | 0.700 | 1.500 | 0.371 | 3.285 | 17.8 | 38.1 | 83.4 | 9.4 | 100 |
$90.28/BAG
|
||
|
0.729 X 0.315 tag X 1.000L Whi
SPP 0729X1000-W
|
WHITE | 0.729 | 1.000 | 0.315 | 2.359 | 18.5 | 25.4 | 59.9 | 8.0 | 100 |
$68.71/BAG
|
||
|
0.729 Plug Dia. X 0.386" TagD"
SPP 0729X1500-W
|
WHITE | 0.729 | 1.500 | 0.386 | 3.297 | 18.5 | 38.1 | 83.7 | 9.8 | 100 |
$91.27/BAG
|
||
|
0.770 X 0.375 tag X 1.125L Sil
SPP 0770X1125
|
CLEAR | 0.770 | 1.125 | 0.375 | 2.592 | 19.6 | 28.6 | 65.8 | 9.5 | 50 |
$43.54/BAG
|
||
|
0.770 Plug Dia. X 0.408" TagD"
SPP 0770X1500
|
CLEAR | 0.770 | 1.5 | 0.408 | 3.314 | 19.6 | 38.1 | 84.2 | 10.4 | 50 |
$58.03/BAG
|
||
|
0.809 X 0.315 tag X 1.000L Pin
SPP 0809X1000-N
|
PINK | 0.809 | 1.000 | 0.315 | 2.428 | 20.5 | 25.4 | 61.7 | 8.0 | 50 |
$44.82/BAG
|
||
|
0.896 X 0.375 tag X 1.000L Gre
SPP 0896X1000-G
|
GREEN | 0.896 | 1.000 | 0.375 | 2.451 | 22.8 | 25.4 | 62.3 | 9.5 | 50 |
$47.97/BAG
|
||
|
1.020 X 0.375 tag X 1.250L Yel
SPP 1020-L
|
YELLOW | 1.020 | 1.250 | 0.375 | 3.059 | 25.9 | 31.8 | 77.7 | 9.5 | 50 |
$70.04/BAG
|
||
|
1.265 X 0.625 tag X 2.470 L Si
SPP 1265-U
|
BLUE | 1.265 | 2.470 | 0.625 | 5.514 | 32.1 | 62.7 | 140.1 | 15.9 | 50 |
$278.12/BAG
|
||
|
2.000 X 0.787 tag X 2.000L Rus
SPP 2000-F
|
RUSTY | 2.000 | 2.000 | 0.787 | 5.050 | 50.8 | 50.8 | 128.3 | 20.0 | 25 |
$198.59/BAG
|
