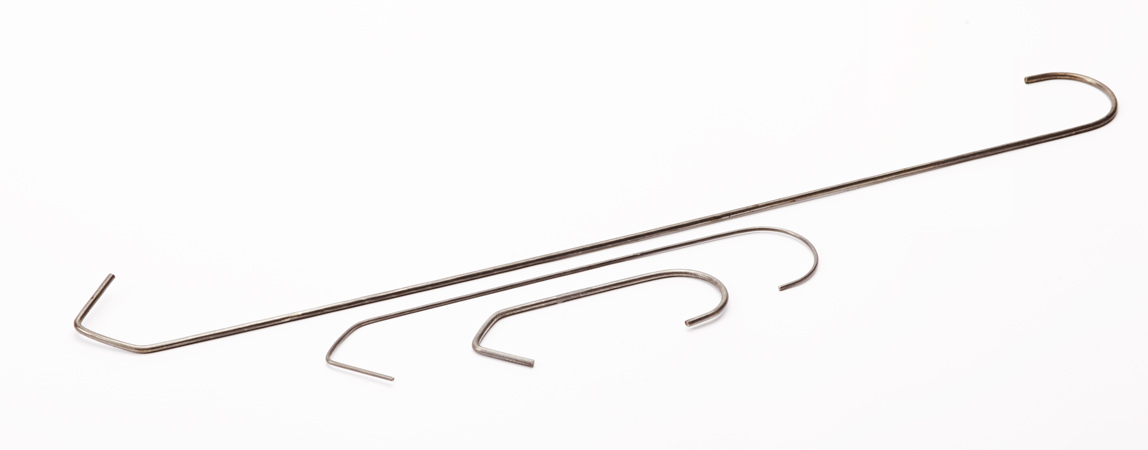

HCV Series - CV-Hooks
- Hybrid Hook Configuration
- Combines the Features of a V-Hook with the Ease of Use of a C-Hook
- Can be Used on Both Traditional and Round Stock Conveyor Systems
- Offer the Greatest Load Capacity with the Smallest Amount of Hook Marking
- NOTE: The recommended safe load limits were compiled under static load conditions in a laboratory fully accredited by the American Association for Laboratory Accreditation, conforming to ISO Guide 25. Although all load limits incorporate a safety factor, many factors will affect the actual dynamic load capacity of a hook. Such factors include sudden change in line speed, vibration in the conveyor, or in the case of suspension from two hooks, a shift in the center of gravity caused by an incline or stretching along curves in the conveyor. This product should be tested to determine the suitability for its intended use.
- Please call your EPSI representative for further details.
========================================================================
| Part Number | Diameter - IN | Length - IN | Diameter - MM | Bowl Diameter - IN | Bowl Diameter - MM | Length - MM | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|
|
3.000 (75.0mm) L X 0.060" (1."
HCV 07515-25
|
0.060 | 3.000 | 1.5 | 1.000 | 25.0 | 75.0 | 2500 |
$99.53/BOX
|
||
|
3.000 (75.0mm) L X 0.080" (2."
HCV 07520-25
|
0.080 | 3.000 | 2.0 | 1.000 | 25.0 | 75.0 | 2500 |
$119.31/BOX
|
||
|
4.000 (100.0mm) L X 0.060" (1"
HCV 10015-32
|
0.060 | 4.000 | 1.5 | 1.250 | 32.0 | 100.0 | 2500 |
$86.41/BOX
|
||
|
4.000 (100.0mm) L X 0.080" (2"
HCV 10020-32
|
0.080 | 4.000 | 2.0 | 1.250 | 32.0 | 100.0 | 2500 |
$100.14/BOX
|
||
|
4.000 (100.0mm) L X 0.120" (3"
HCV 10030-32
|
0.120 | 4.000 | 3.0 | 1.250 | 32.0 | 100.0 | 1000 |
$70.83/BOX
|
||
|
6.000 (150.0mm) L X 0.060" (1"
HCV 15015-38
|
0.060 | 6.000 | 1.5 | 1.500 | 38.0 | 150.0 | 2500 |
$177.23/BOX
|
||
|
6.000 (150.0mm) L X 0.080" (2"
HCV 15020-38
|
0.080 | 6.000 | 2.0 | 1.500 | 38.0 | 150.0 | 2500 |
$184.17/BOX
|
||
|
6.000 (150.0mm) L X 0.120" (3"
HCV 15030-38
|
0.120 | 6.000 | 3.0 | 1.500 | 38.0 | 150.0 | 1000 |
$94.62/BOX
|
||
|
6.000 (150.0mm) L X 0.180" (4"
HCV 15045-38
|
0.180 | 6.000 | 4.5 | 1.500 | 38.0 | 150.0 | 500 |
$108.65/BOX
|
||
|
8.000 (200.0mm) L X 0.080" (2"
HCV 20020-38
|
0.080 | 8.000 | 2.0 | 1.500 | 38.0 | 200.0 | 2500 |
$223.33/BOX
|
||
|
8.000 (200.0mm) L X 0.120" (3"
HCV 20030-38
|
0.120 | 8.000 | 3.0 | 1.500 | 38.0 | 200.0 | 1000 |
$128.92/BOX
|
||
|
8.000 (200.0mm) L X 0.180" (4"
HCV 20045-38
|
0.180 | 8.000 | 4.5 | 1.500 | 38.0 | 200.0 | 500 |
$121.02/BOX
|
||
|
10.000 (250.0mm) L X 0.080" ("
HCV 25020-38
|
0.080 | 10.000 | 2.0 | 1.500 | 38.0 | 250.0 | 2500 |
$365.99/BOX
|
||
|
10.000 (250.0mm) L X 0.120" ("
HCV 25030-38
|
0.120 | 10.000 | 3.0 | 1.500 | 38.0 | 250.0 | 1000 |
$172.11/BOX
|
||
|
10.000 (250.0mm) L X 0.180" ("
HCV 25045-38
|
0.180 | 10.000 | 4.5 | 1.500 | 38.0 | 250.0 | 250 |
$75.41/BOX
|
||
|
12.000 (300.0mm) L X 0.120" ("
HCV 30030-38
|
0.120 | 12.000 | 3.0 | 1.500 | 38.0 | 300.0 | 500 |
$99.71/BOX
|
||
|
12.000 (300.0mm) L X 0.180" ("
HCV 30045-38
|
0.180 | 12.000 | 4.5 | 1.500 | 38.0 | 300.0 | 250 |
$98.04/BOX
|
||
|
12.000 (300.0mm) L X 0.250" ("
HCV 30060-38
|
0.250 | 12.000 | 6.0 | 1.500 | 38.0 | 300.0 | 200 |
$142.20/BOX
|
||
|
15.000 (375.0mm) L X 0.120" ("
HCV 37530-38
|
0.120 | 15.0 | 3.0 | 1.500 | 38.0 | 375.0 | 500 |
$168.53/BOX
|
||
|
18.000 (450.0mm) L X 0.120" ("
HCV 45030-38
|
0.120 | 18.000 | 3.0 | 1.500 | 38.0 | 450.0 | 500 |
$193.47/BOX
|
||
|
18.000 (450.0mm) L X 0.180" ("
HCV 45045-38
|
0.180 | 18.000 | 4.5 | 1.500 | 38.0 | 450.0 | 250 |
$116.82/BOX
|
||
|
24.000 (600.0mm) L X 0.180" ("
HCV 60045-38
|
0.180 | 24.000 | 4.5 | 1.500 | 38.0 | 600.0 | 100 |
$78.19/BOX
|
