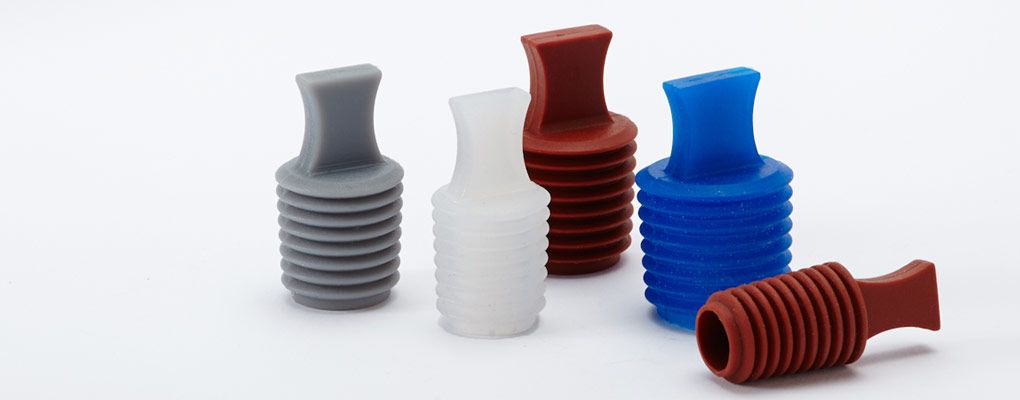

FLPS Series - Silicone Flangless Plugs
Product Description:
EPSI’s Flangeless Plug (FLPS or FLPE) product line is specifically designed to mask threaded holes, including the top thread, without masking the surrounding area. The tapered ribs and hollow core allow for many different size holes to be masked, regardless of the thread pitch. Imitation plugs have rounded ribs that do not offer the same degree of protection as EPSI’s FLPS line. Made of a rugged blend of our High Temperature Silicone the FLPS has excellent sealing characteristics and reusability.Tapered ribs and hollow core allow for masking of multiple sizes of holes. Sharp rib profile offers excellent chamfer coverage. Specially Formulated to be rigid. Allowing plug to be pushed into place.
Typical Applications:
- Used as a plug for threaded holes, including the top thread.
Helpful Hints:
- Silicone Flangeless Plugs are designed to be inserted via direct pressure. EPSI does not recommend threading these plugs into place, as threading may cause damage to the plug and difficulty during removal.
- Due to the low tear resistance of Silicone, do not use tools (such as pliers) to remove plugs.
| Part Number | COLOR | MJD - IN | MND - IN | MPD - IN | L - IN | Length - IN | MJD - MM | MND - MM | MPD - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.157" Major Dia. X 0.079" Minor Dia. X 0.748
FLPS 00402-N
|
PINK | 0.157 | 0.079 | 0.118 | 0.748 | 4.0 | 2.0 | 3.0 | 19 | 500 |
$75.96/BAG
|
|||
|
0.236 Major Dia. X 0.157" Min"
FLPS 00604-C
|
CLEAR | 0.236 | 0.157 | 0.197 | 1.000 | 6.0 | 4.0 | 5.0 | 25.4 | 250 |
$43.95/BAG
|
|||
|
0.315 Major Dia. X 0.236" Min"
FLPS 00806-Y
|
GRAY | 0.315 | 0.236 | 0.276 | 1.000 | 8.0 | 6.0 | 7.0 | 25.4 | 250 |
$53.72/BAG
|
|||
|
0.394 Major Dia. X 0.315" Min"
FLPS 01008-F
|
RUSTY | 0.394 | 0.315 | 0.355 | 1.000 | 10.0 | 8.0 | 9.0 | 25.4 | 250 |
$62.55/BAG
|
|||
|
0.472 Major Dia. X 0.394" Min"
FLPS 01210-U
|
BLUE | 0.472 | 0.394 | 0.433 | 1.000 | 12.0 | 10.0 | 11.0 | 25.4 | 250 |
$77.07/BAG
|
|||
|
0.551 Major Dia. X 0.472" Min"
FLPS 01412-C
|
CLEAR | 0.551 | 0.472 | 0.512 | 1.000 | 14.0 | 12.0 | 13.0 | 25.4 | 250 |
$79.98/BAG
|
|||
|
0.630 Major Dia. X 0.551" Min"
FLPS 01614-Y
|
GRAY | 0.630 | 0.551 | 0.591 | 1.000 | 16.0 | 14.0 | 15.0 | 25.4 | 250 |
$104.06/BAG
|
|||
|
0.709 Major Dia. X 0.630" Min"
FLPS 01816-F
|
RUSTY | 0.709 | 0.630 | 0.670 | 1.000 | 18.0 | 16.0 | 17.0 | 25.4 | 250 |
$104.93/BAG
|
|||
|
0.787 Major Dia. X 0.709" Min"
FLPS 02018-U
|
BLUE | 0.787 | 0.709 | 0.748 | 1.000 | 20.0 | 18.0 | 19.0 | 25.4 | 100 |
$63.25/BAG
|
|||
|
0.886 Major Dia. X 0.787" Min"
FLPS 02220-C
|
CLEAR | 0.886 | 0.787 | 0.837 | 1.000 | 22.5 | 20.0 | 21.2 | 25.4 | 100 |
$68.34/BAG
|
|||
|
0.945 Major Dia. X 0.886" Min"
FLPS 02422-Y
|
GRAY | 0.945 | 0.886 | 0.916 | 1.000 | 24.0 | 22.5 | 23.3 | 25.4 | 100 |
$80.05/BAG
|
|||
|
1.024 Major Dia. X 0.945" Min"
FLPS 02624-F
|
RUSTY | 1.024 | 0.945 | 0.985 | 1.000 | 26.0 | 24.0 | 25.0 | 25.4 | 100 |
$102.89/BAG
|
|||
|
1.102 Major Dia. X 1.024" Min"
FLPS 02826-U
|
BLUE | 1.102 | 1.024 | 1.063 | 1.000 | 28.0 | 26.0 | 27.0 | 25.4 | 100 |
$115.51/BAG
|
