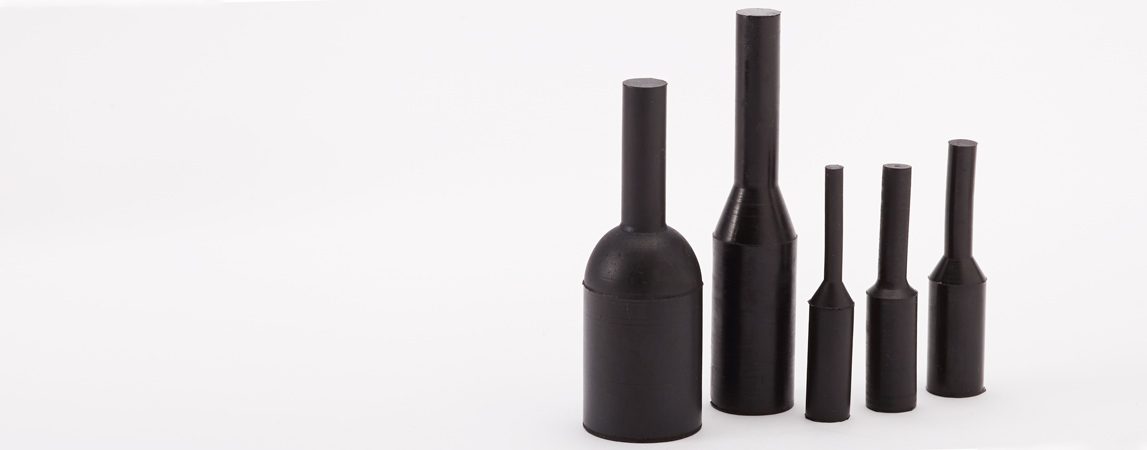

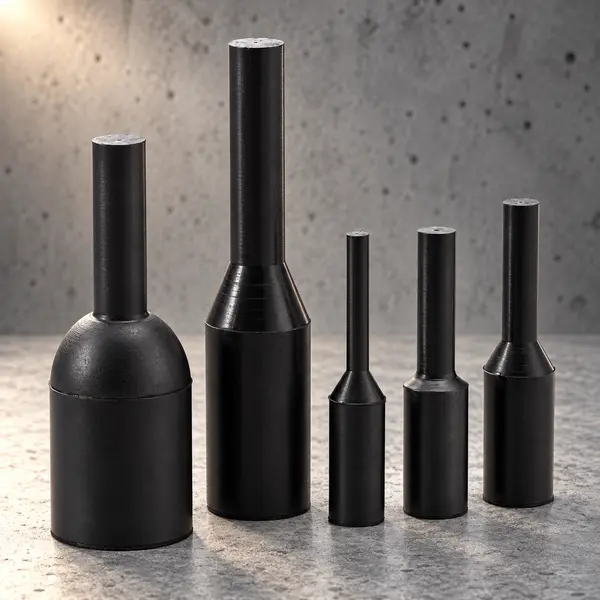

EPP Series - EDPM Pull Plugs

  • Chamfered Neck and Smaller Pull-Tab Diameter Aid Insertion
  • When Pulled Through Holes, Large Diameter Compresses Until Released, Providing for a Tight Seal
  • High Temperature EPDM Formulation is Extremely Chemically Resistant and Economical

Typical Applications:

  • Used as a plug for non-threaded and threaded through holes.

Product Description:

Our EPDM Pull Plug (EPP) product line is an extremely economical solution for threaded and non-threaded through hole applications. With many sizes available, holes from 0.050” to 2.250” in diameter can easily be plugged. Our high temperature EPDM is specially formulated to ensure chemical resistance while maintaining reusability and economy during masking.

Helpful Hints:

  • When plugging a hole, make sure that the major diameter of the plug is larger than the diameter of the hole being plugged by at least 4%.
  • Keep in mind any interference issues that will be created by the Pull-Tab being exposed after plug is inserted.
  • Not recommended for holes with a leadin chamfer or a countersink that requires protection from paint. For these applications, EPSI recommends the Weld Nut Pull Plug (WPP) or the Washer Plug (WP) lines.
Filter
Part Number MJD - IN PL - IN SD - IN OL - IN MJD - MM PL - MM OL - MM SD - MM PCS/BAG COLOR Unit Purchase
0.093 (2.4mm) Major Dia. X 0."
EPP 0093
 0.093 0.625 0.062 1.277 2.4 15.9 32.4 1.6 500 BLACK
Buy 1 $36.480/500 Per BAG
Buy 5 $33.953/500 Per BAG
In Stock
0.109 (2.8mm) Major Dia. X 0."
EPP 0109X0625
 0.109 0.625 0.062 1.291 2.8 15.9 32.8 1.6 500 BLACK
Buy 1 $38.390/500 Per BAG
Buy 5 $35.707/500 Per BAG
In Stock
0.118 (3.0mm) Major Dia. X 0."
EPP 0118
 0.118 1.000 0.082 2.031 3.0 25.4 51.6 2.1 500 BLACK
Buy 1 $43.650/500 Per BAG
Buy 5 $40.609/500 Per BAG
In Stock
0.130 (3.3mm) Major Dia. X 0."
EPP 0130X0625
 0.130 0.625 0.082 1.292 303 15.9 32.8 2.1 500 BLACK
Buy 1 $39.526/500 Per BAG
Buy 5 $36.739/500 Per BAG
In Stock
0.140 (3.6mm) Major Dia. X 0."
EPP 0140
 0.140 0.625 0.082 1.300 3.6 15.9 33.0 2.1 500 BLACK
Buy 1 $40.660/500 Per BAG
Buy 5 $37.823/500 Per BAG
In Stock
0.154 (3.9mm) Major Dia. X 0."
EPP 0154
 0.154 0.625 0.082 1.312 3.9 15.9 33.3 2.1 500 BLACK
List Price $43.654/500 Per BAG
Buy 1 $43.650/500 Per BAG
Buy 5 $40.609/500 Per BAG
In Stock
0.156 (4.0mm) Major Dia. X 0."
EPP 0156X0625
 0.156 0.625 0.082 1.314 4.0 15.9 33.4 2.1 5000 BLACK
List Price $43.654/500 Per BAG
Buy 1 $43.650/500 Per BAG
Buy 5 $40.609/500 Per BAG
In Stock
0.162 (4.1mm) Major Dia. X 0."
EPP 0162
 0.162 0.625 0.093 1.310 4.1 15.9 33.3 2.4 500 BLACK
List Price $43.654/500 Per BAG
Buy 1 $43.650/500 Per BAG
Buy 5 $40.609/500 Per BAG
In Stock
0.187 (4.7mm) Major Dia. X 0."
EPP 0187
 0.187 0.625 0.110 1.317 4.7 15.9 33.5 2.8 500 BLACK
Buy 1 $47.369/500 Per BAG
Buy 5 $44.066/500 Per BAG
In Stock
0.195 (5.0mm) Major Dia. X 0."
EPP 0195X0625
 0.195 0.6265 0.110 1.324 5.0 15.9 33.6 2.8 500 BLACK
Buy 1 $47.369/500 Per BAG
Buy 5 $44.066/500 Per BAG
In Stock
0.197 (5.0mm) Major Dia. X 0."
EPP 0197X1000
 0.197 1.0 0.110 2.075 5.0 25.4 52.7 2.8 500 BLACK
Buy 1 $49.536/500 Per BAG
Buy 5 $46.079/500 Per BAG
In Stock
0.225 (5.7mm) Major Dia. X 0."
EPP 0225
 0.225 1.0 0.125 2.087 5.7 25.4 53.0 3.2 500 BLACK
Buy 1 $47.369/500 Per BAG
Buy 5 $44.066/500 Per BAG
In Stock
0.281 (7.1mm) Major Dia. X 0."
EPP 0281
 0.281 1.000 0.138 2.124 7.1 25.4 53.9 3.5 500 BLACK
Buy 1 $51.136/500 Per BAG
Buy 5 $47.575/500 Per BAG
In Stock
0.312 (7.9mm) Major Dia. X 0."
EPP 0312X1000
 0.312 1.000 0.147 2.143 7.9 25.4 54.4 3.7 500 BLACK
Buy 1 $51.136/500 Per BAG
Buy 5 $47.575/500 Per BAG
In Stock
0.332 Plug Diameter X 0.750" "
EPP 0332
 0.332 1.125 0.250 2.071 8.4 28.6 52.6 6.4 500 BLACK
Buy 1 $64.500/500 Per BAG
Buy 5 $59.959/500 Per BAG
In Stock
0.335 (8.5mm) Major Dia. X 0."
EPP 0335
 0.335 1.0 0.157 2.154 8.5 25.4 54.7 4.0 500 BLACK
Buy 1 $56.399/500 Per BAG
Buy 5 $52.426/500 Per BAG
In Stock
0.350 (8.9mm) Major Dia. X 0."
EPP 0350
 0.350 0.900 0.157 1.967 8.9 22.9 50.0 4.0 500 BLACK
Buy 1 $55.625/500 Per BAG
Buy 5 $51.755/500 Per BAG
In Stock
0.388 (9.9mm) Major Dia. X 0."
EPP 0388
 0.388 1.000 0.157 2.200 9.9 25.4 55.9 4.0 250 BLACK
Buy 1 $30.857/250 Per BAG
Buy 5 $28.690/250 Per BAG
In Stock
0.400 (10.2mm) Major Dia. X 0"
EPP 0400X1000
 0.400 1.000 0.157 2.334 10.2 25.4 59.3 4.0 250 BLACK
Buy 1 $33.829/250 Per BAG
Buy 5 $31.455/250 Per BAG
In Stock
0.445 (11.3mm) Major Dia. X 0"
EPP 0445
 0.445 1.000 0.255 2.165 11.3 25.4 55.0 6.5 250 BLACK
Buy 1 $38.370/250 Per BAG
Buy 5 $35.687/250 Per BAG
In Stock
0.468 (11.9mm) Major Dia. X 0"
EPP 0468
 0.468 1.250 0.250 2.689 11.9 31.8 68.3 6.4 250 BLACK
Buy 1 $45.510/250 Per BAG
Buy 5 $42.333/250 Per BAG
In Stock
0.500 (12.7mm) Major Dia. X 0"
EPP 0500
 0.500 1.000 0.25 2.217 12.7 25.4 56.3 6.4 100 BLACK
Buy 1 $18.256/100 Per BAG
Buy 5 $16.976/100 Per BAG
In Stock
0.770 (19.6mm) Major Dia. X 0"
EPP 0770X1125
 0.770 1.125 0.375 2.592 19.6 28.6 65.8 9.5 50 BLACK
Buy 1 $19.267/50 Per BAG
Buy 5 $17.916/50 Per BAG
In Stock
1.020 (25.9mm) Major Dia. X 0"
EPP 1020
 1.020 1.250 0.375 3.059 25.6 31.8 77.7 9.5 50 BLACK
Buy 1 $30.846/50 Per BAG
Buy 5 $28.690/50 Per BAG
In Stock
