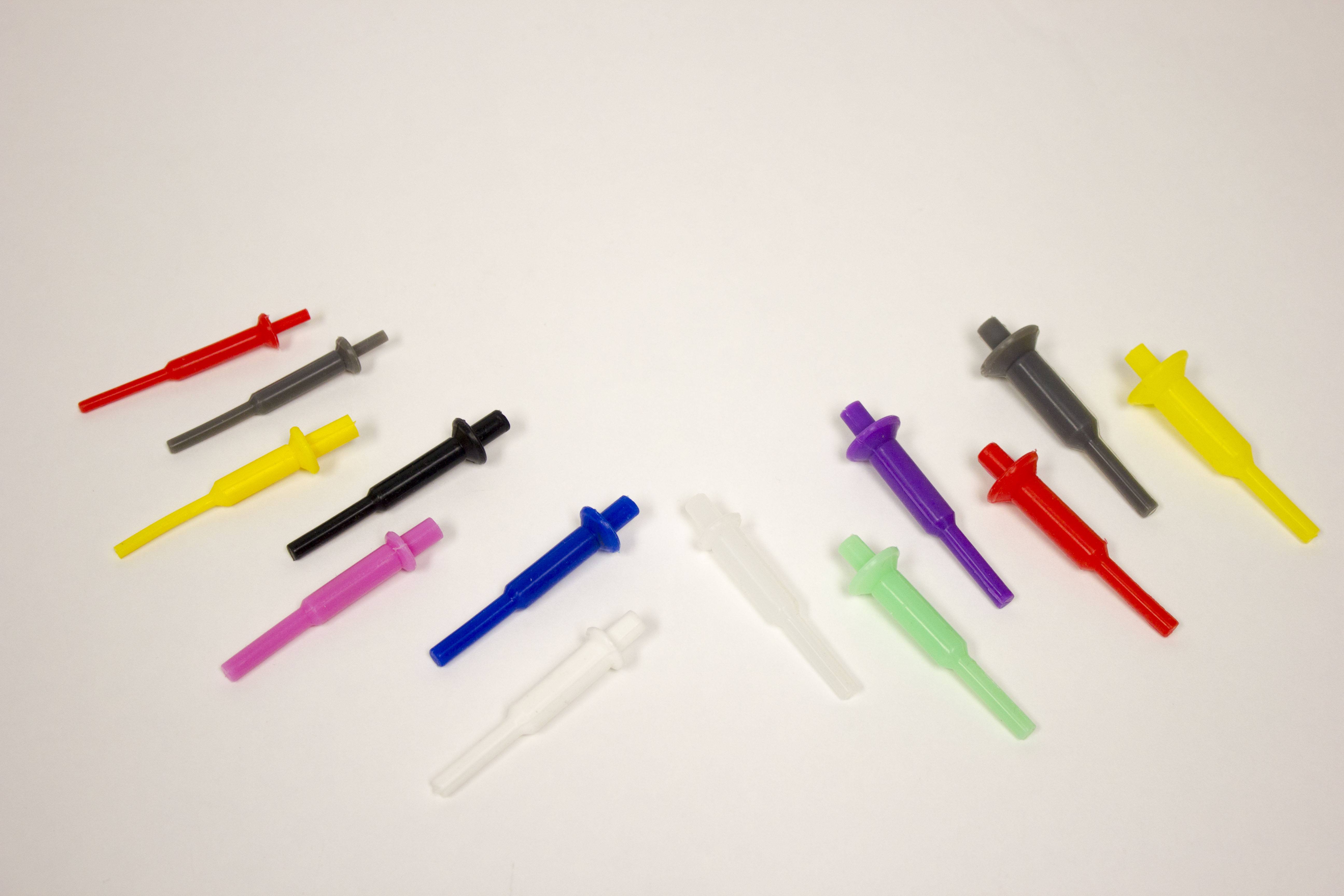

CPP Series - Flex-Tite™ Pull Plugs
- The best way to mask 82° / 90° / 100° countersink holes
- Crucial point first contact design ensures liquid tight seal
Product Description:
Our Flex-Tite™ Countersink Pull Plug (CPP) product link is the industry standard masking solution for countersink through holes. With many sizes available, 82° / 90° / 100° countersink holes from 0.220” to 0.428” can easily be masked.
Typical Applications:
The Flex-Tite™ Countersink Pull Plugs can be used in all coating applications.
Helpful Hints:
- When plugging a countersink, make sure the plug diameter (PD) is larger than the diameter of the through hole by at least 4%
- Keep in mind any interference issues created by the exposure of the pull tab after inserting the plug
| Part Number | COLOR | FD - IN | PD - IN | PL - IN | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|
|
100deg Countersink Pull Plug
CPP 0220X0368-R
|
RED | 0.368 | 0.220 | 0.980 | 250 |
$37.82/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0243X0402-Y
|
GREY | 0.402 | 0.243 | 0.980 | 250 |
$50.75/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0280X0493-L
|
YELLOW | 0.439 | 0.280 | 0.810 | 250 |
$78.27/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0280X0515-B
|
BLACK | 0.515 | 0.280 | 0.980 | 250 |
$79.72/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0293X0422-N
|
PINK | 0.422 | 0.280 | 0.980 | 250 |
$75.21/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0302X0532-U
|
BLUE | 0.532 | 0.302 | 0.980 | 250 |
$93.50/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0343X0487-C
|
CLEAR | 0.487 | 0.343 | 0.980 | 250 |
$97.82/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0343X0620-G
|
GREEN | 0.620 | 0.343 | 0.980 | 250 |
$112.32/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0343X0642-P
|
Purple | 0.642 | 0.343 | 0.980 | 250 |
$112.32/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0365X0660-R
|
RED | 0.660 | 0.365 | 0.980 | 250 |
$124.88/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0405X0744-Y
|
GREY | 0.744 | 0.405 | 0.980 | 250 |
$147.27/BAG
|
||
|
100deg Countersink Pull Plug
CPP 0428X0787-L
|
YELLOW | 0.787 | 0.428 | 0.980 | 250 |
$163.07/BAG
|
