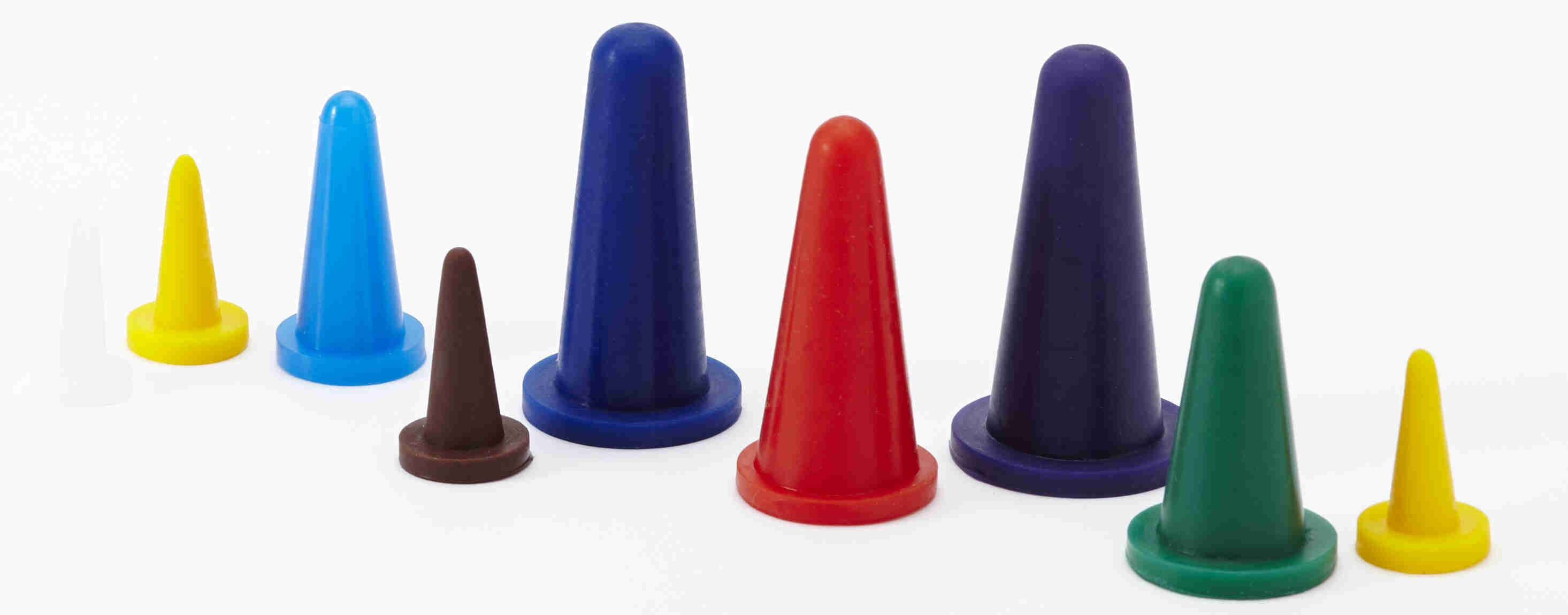

CONS Series - Silicone CONS Caps
- Conical Profile Allows for Easy Insertion as a Plug
- Washer Feature Creates a Grounding Area Around Holes and Studs
- Will Fit Multiple Diameter Threads When Used as a Cap
- Flexible Enough to Conform to Irregular Geometry, Great For Square Holes
- Silicone Cone Caps are Reusable, and Will Not Melt or Harden
Typical Applications:
Used as a cap over threaded studs, dowels, and protrusions. Used as a plug for tapped holes, irregular contours and threaded holes.
Helpful Hints:
- Versatile enough to be used as caps, stoppers, plug in any variety of applications.
- When sizing parts as a cap, the ID of the cap should be 2 - 5% smaller than the stud diameter.
- To ensure easy removal, select a cap length that is at least 1/4” longer than the masking length of the stud. This is especially important if the cap ID is less than 5% of the stud diameter.
Product Description:
Our Cone Cap (CON) product line is an alternative to our Washer Cap (WC) product line when masking off holes or studs and a surrounding surface for grounding. Their versatile nature allow them to fit over extrusions, threaded studs, PEMS and dowels, as well as be used as a plug for tapped holes, irregular contours and threaded holes. Our high temperature silicone is specially formulated to ensure stability at elevated temperatures, to ensure reliable masking with every part.
| Part Number | COLOR | MJD - IN | MND - IN | WD - IN | L - IN | MJD - MM | MND - MM | WD MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.130 ID X 0.250" OD X 0.500""
CONS 00613-C
|
CLEAR | 0.250 | 0.071 | 0.071 | 0.906 | 6.4 | 1.8 | 12.7 | 23.0 | 500 |
$64.61/BAG
|
||
|
0.216 ID X 0.316" OD X 0.500""
CONS 00813-F
|
RUSTY | 0.316 | 0.099 | 0.500 | 1.000 | 8.0 | 2.5 | 12.7 | 25.4 | 500 |
$73.37/BAG
|
||
|
0.177 ID X 0.335" OD X 0.625""
CONS 00916-L
|
YELLOW | 0.335 | 0.111 | 0.625 | 1.000 | 8.5 | 2.8 | 15.9 | 25.4 | 500 |
$120.77/BAG
|
||
|
0.197 ID X 0.394" OD X 0.650""
CONS 01017-Z
|
BROWN | 0.394 | 0.137 | 0.650 | 1.102 | 10.0 | 3.5 | 16.5 | 28.0 | 500 |
$124.80/BAG
|
||
|
0.230 ID X 0.400" OD X 0.635""
CONS 01116-C
|
CLEAR | 0.400 | 0.139 | 0.635 | 1.100 | 10.1 | 3.5 | 16.1 | 28.0 | 250 |
$66.76/BAG
|
||
|
0.315 ID X 0.551" OD X 0.750""
CONS 01419-B
|
BLACK | 0.551 | 0.199 | 0.750 | 1.417 | 14.0 | 5.1 | 19.0 | 36.0 | 250 |
$71.49/BAG
|
||
|
0.453 ID X 0.689" OD X 0.980""
CONS 01725-G
|
GREEN | 0.689 | 0.266 | 0.980 | 1.500 | 17.5 | 6.8 | 25.0 | 38.1 | 250 |
$96.63/BAG
|
||
|
0.532 ID X 0.767" OD X 1.100""
CONS 02028-U
|
BLUE | 0.767 | 0.270 | 1.100 | 2.009 | 19.5 | 6.9 | 28.0 | 51.0 | 100 |
$56.47/BAG
|
||
|
0.583 ID X 0.819" OD X 1.000""
CONS 02125-R
|
RED | 0.819 | 0.304 | 1.000 | 1.929 | 20.8 | 7.7 | 25.4 | 49.0 | 100 |
$59.99/BAG
|
||
|
0.630 ID X 0.866" OD X 1.220""
CONS 02231-P
|
Purple | 0.866 | 0.317 | 1.220 | 2.087 | 22.0 | 8.1 | 31.0 | 53.0 | 100 |
$66.13/BAG
|
