BTM Series - Blind-Hole Thread Mask Plug
- Shallow Design is Ideal for Blind Hole Applications
- Flange Geometry is Specially Engineered to Mask off Lead-In Chamfers of Threads
- Make Sure Diameter of Mask is at Least 5% Greater than Hole Size.
- 600° F (315° C)
Product Description:

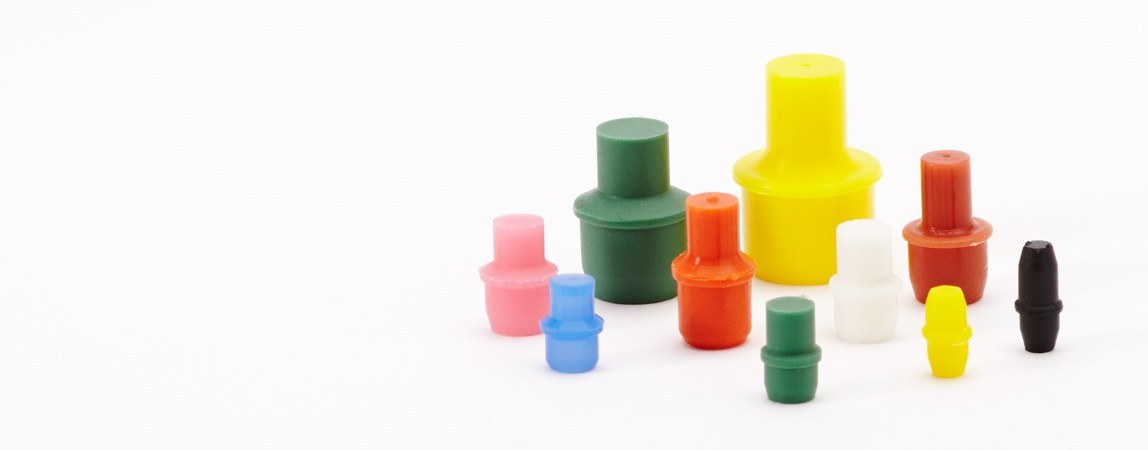

Our Blind-Hole Threaded Mask (BTM) product line is the answer to the common problem of masking off blind threaded holes. The BTM product line has several features engineered into their design to ensure complete sealing of threads.
| Part Number | COLOR | PD - IN | A | PL - IN | PL2 - IN | WD - IN | SD - IN | OL - IN | PD - MM | PL - MM | PL2 - MM | WD MM | OL - MM | SD - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.208 (5.3mm) Plug Diameter X"
BTM 0208-C
|
CLEAR | 0.208 | 120° | 0.215 | 0.197 | 0.248 | x | 0.551 | 5.3 | 5.5 | 5.0 | 6.3 | 14.0 | x | 500 |
$31.69/BAG
|
||
|
0.218 (5.5mm) Plug Diameter X"
BTM 0218-L
|
YELLOW | 0.218 | 120° | 0.201 | 0.197 | 0.26 | x | 0.449 | 5.5 | 5.1 | 5.0 | 6.6 | 11.4 | x | 500 |
$33.11/BAG
|
||
|
0.278 (7.1mm) Plug Diameter X"
BTM 0278-G
|
GREEN | 0.278 | 120° | 0.201 | x | 0.319 | 0.255 | 0.500 | 7.1 | 5.1 | x | 8.1 | 12.7 | 6.5 | 500 |
$40.24/BAG
|
||
|
0.283 (7.2mm) Plug Diameter X"
BTM 0283-U
|
BLUE | 0.283 | 120° | 0.197 | x | 0.331 | 0.235 | 0.480 | 7.2 | 5.0 | x | 8.4 | 12.2 | 6.0 | 500 |
$43.56/BAG
|
||
|
0.336 (8.5mm) Plug Diameter X"
BTM 0336-W
|
WHITE | 0.336 | 120° | 0.252 | x | 0.386 | 0.289 | 0.598 | 8.5 | 6.4 | x | 9.8 | 15.2 | 7.3 | 500 |
$51.27/BAG
|
||
|
0.358 (9.1mm) Plug Diameter X"
BTM 0358-N
|
PINK | 0.358 | 120° | 0.276 | x | 0.409 | 0.270 | 0.591 | 9.1 | 7.0 | x | 10.4 | 15.0 | 6.9 | 250 |
$28.42/BAG
|
||
|
0.392 (10.0mm) Plug Diameter "
BTM 0392-O
|
Orange | 0.392 | 100 | 0.350 | x | 0.441 | 0.289 | 0.752 | 10.0 | 8.9 | x | 11.2 | 19.1 | 7.3 | 250 |
$41.57/BAG
|
||
|
0.426 (10.8mm) Plug Diameter "
BTM 0426-F
|
RUSTY | 0.426 | 120° | 0.346 | x | 0.492 | 0.316 | 0.791 | 10.8 | 8.8 | x | 12.5 | 20.1 | 8.0 | 250 |
$57.68/BAG
|
||
|
0.451 (11.5mm) Plug Diameter "
BTM 0451-C
|
CLEAR | 0.451 | 120° | 0.350 | x | 0.512 | 0.366 | 0.752 | 11.5 | 8.9 | x | 13.0 | 19.1 | 9.3 | 250 |
$60.49/BAG
|
||
|
0.583 (14.8mm) Plug Diameter "
BTM 0583-G
|
GREEN | 0.583 | 120° | 0.433 | x | 0.654 | 0.390 | 0.906 | 14.8 | 11.0 | x | 16.6 | 23.0 | 9.9 | 100 |
$35.75/BAG
|
||
|
0.724 (18.4mm) Plug Diameter "
BTM 0724-L
|
YELLOW | 0.724 | 120° | 0.512 | x | 0.811 | 0.512 | 1.122 | 18.4 | 13.0 | x | 20.6 | 28.5 | 13.0 | 100 |
$51.29/BAG
|
