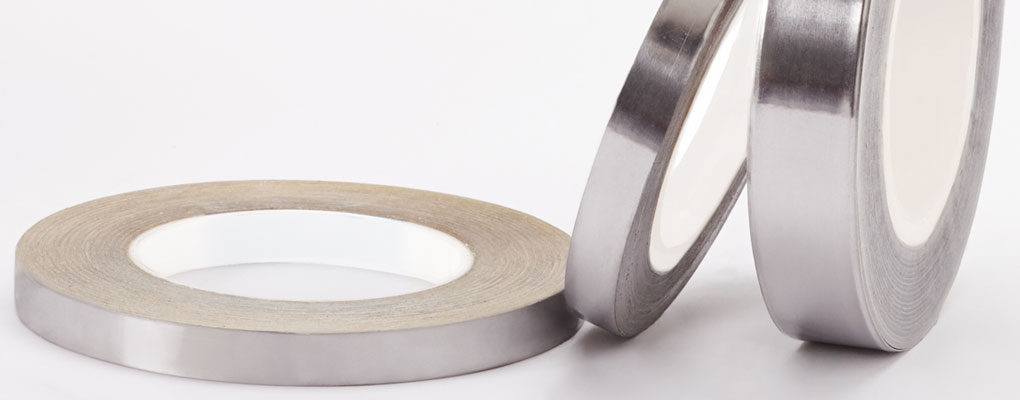

P12 Series - Lead Foil Tape

  • Maximum Temperature: 225°F
  • Good Solvent Resistance
  • Excellent Adhesion to a Wide Variety of Surfaces
  • Highly Malleable

Product Description:

100% pure lead foil with a synthetic rubber adhesive; wound with a liner.

Typical Application:

  • Used for stop off masking during electroplating,chemical milling, paint stripping, and where a moisture proof seal is required. Also used as an electromagnetic and radio frequency shield.

Construction:

  • Total Thickness 6.5 mils
  • Adhesive Thickness 1.5 mils
  • Carrier Thickness 5.0 mils
  • Adhesive Type Blended Rubber
  • Carrier Type Lead Foil
  • Color Silver

Specifications:

  • Maximum Temperature (F) 225
  • Tensile Strength (lbs/inch) 23
  • Elongation (%) 30
  • Peel Adhesion (oz/inch) 96
  • Government Specifications HH-T-29A, Amendment 2
  • Other sizes available upon request.
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty Unit Purchase
12.7mm dark silver lead foil t
P12-00127
36 1/2 in 0.500 33 12.7 18
Buy 1 $25.130/ROL
Buy 18 $23.370/ROL
In Stock
25.4mm dark silver lead foil t
P12-00254
36 1 in 1.000 33 25.4 9
Buy 1 $56.160/ROL
Buy 9 $52.230/ROL
In Stock

With Selected Items:
