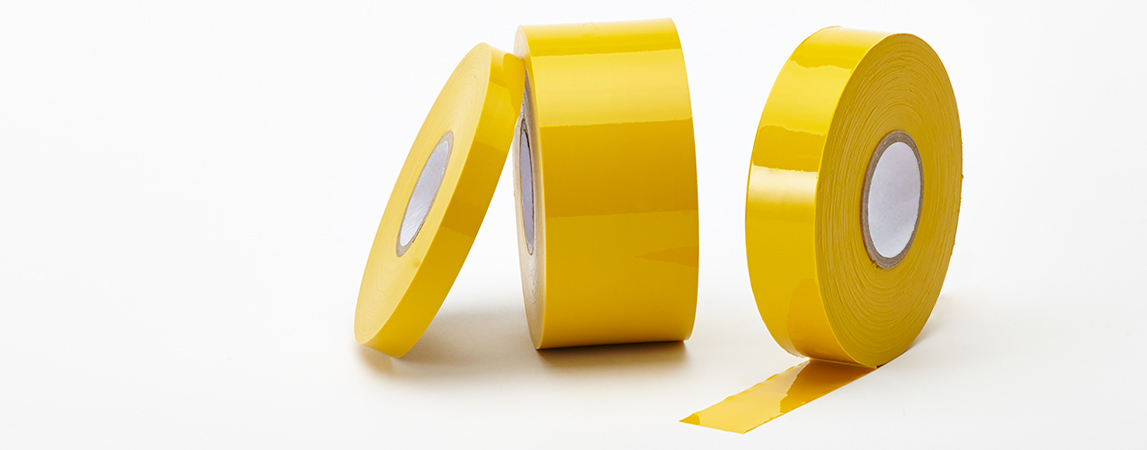

V71 Series - Non-Adhesive Vinyl Tape

  • Extremely Conformable Matrix; Clings to Corners
  • Clings Securely to Itself without Adhesive
  • Durable and Highly Resistant to Oil, Acid, Alkaline and Corrosive Chemicals
  • High Elongation and Good Strength
  • Mask 2 to 3 Times Faster than with Adhesive

Product Description:

Our V71 product is a multi-purpose tape, with excellent chemical resistance and insulation properties. It is the premier choice for plating, Type II and Type III anodizing applications. Overlapping while stretching the film allows for a liquid tight seal around racks and other parts. It can also be used to replace plastisol dipping for racks. The lack of an adhesive makes V71 extremely easy and economical to apply.

Construction:

  • Total Thickness 4.0 mils
  • Carrier Type Polyvinyl Chloride Film
  • Color Yellow

Specifications:

  • Maximum Temperature (F) 176
  • Tensile Strength (lbs/inch) 11.5
  • Elongation (%) 250
  • Dielectric Strength (vpm) 1200
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty Unit Purchase
19.0mm Non-Adhesive Vinyl Tape
V71-00190
83.33 3/4 in 0.750 76 19.0 48
Buy 1 $2.440/ROL
Buy 10 $2.270/ROL
In Stock
25.4mm Non-Adhesive Vinyl Tape
V71-00254
83.33 1 in 1.000 76 25.4 32
Buy 1 $3.260/ROL
Buy 10 $3.040/ROL
In Stock
38.1mm Non-Adhesive Vinyl Tape
V71-00381
83.33 1 1/2 in 1.500 76 38.1 24
Buy 1 $4.900/ROL
Buy 10 $4.550/ROL
In Stock
50.8mm Non-Adhesive Vinyl Tape
V71-00508
83.33 2 in 2.000 76 50.8 16
Buy 1 $6.530/ROL
Buy 10 $6.070/ROL
In Stock
76.2mm Non-Adhesive Vinyl Tape
V71-00762
83.33 3 in 3.000 76 76.2 12
Buy 1 $9.780/ROL
Buy 10 $9.100/ROL
In Stock
