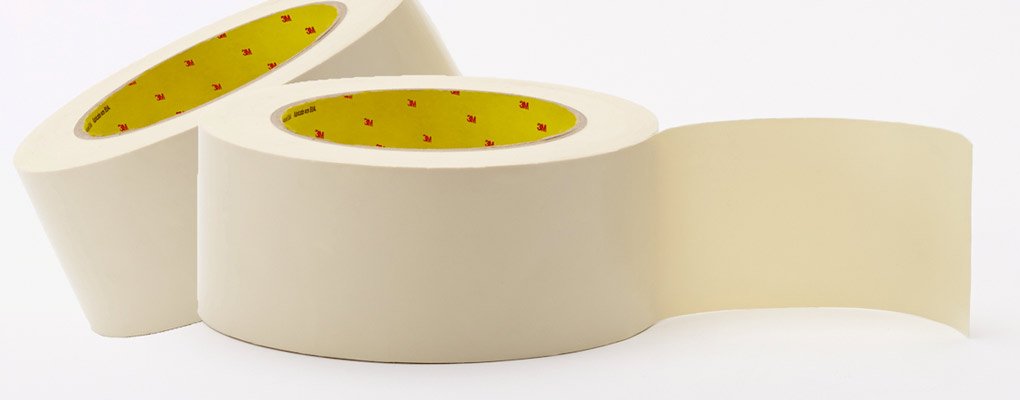

V14 Series - Vinyl Electroplating Tape

  • Maximum Temperature: 170°F
  • Excellent Resistance to Electroplating Chemicals
  • Abrasive Resistant
  • Meets Federal Specification HH-T-0025 (GSA-FSS)

Product Description:

V14 (470) is a 7.1 mil self-wound conformable colored vinyl backing with a rubber adhesive.

Typical Applications:

  • Masking during many electroplating operations, including both flat strip and overlapping masks. Wrapping, patching, coated racks and masking many irregular surfaces.

Construction:

  • Total Thickness 7.1 mils (w/o liner)
  • Adhesive Thickness 0.8 mils
  • Carrier Thickness 6.3 mils
  • Adhesive Type Rubber
  • Carrier Type Pigmented vinyl plastic
  • Color Tan

Specifications:

  • Temperature Range (°F) 170
  • Tensile Strength (lbs/inch) 20
  • Elongation (%) 180
  • Peel Adhesion (oz/inch) 26
  • Government Specifications: Can be qualified to meet federal Specification HH-T-0025 (GSA-FSS)
  • Note: While V14 (470) resists most solvents, avoid ketones, chlorinated hydrocarbons, and esters, found in thinners, degreasers, paint strippers, etc., which may cause the backing to swell or curl. Prolonged exposure to elevated temperatures and hot caustics may cause weakening of the adhesive bond.
  • 170°F intermittent rating. Contact an EPSI representative for recommendations on tapes for continuous or extended use. Many factors can affect the use and performance of a product in a particular application. This product should be tested to determine the suitability for its intended use.
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty Unit Purchase
25.4 mm Vinyl Tape (with PSA)
V14-00254
36 1 in 1.000 32.9 25.4 24
Buy 1 $20.670/ROL
Buy 24 $19.950/ROL
Buy 120 $19.220/ROL
In Stock
38.1mm Vinyl Tape (with PSA) (
V14-00381
36 1 1/2 in 1.500 32.9 38.1 16
Buy 1 $31.030/ROL
Buy 16 $29.940/ROL
Buy 80 $28.850/ROL
In Stock
50.8 mm Vinyl Tape (with PSA)
V14-00508
36 2 in 2.000 32.9 50.8 12
Buy 1 $41.380/ROL
Buy 12 $39.930/ROL
Buy 60 $38.490/ROL
In Stock
