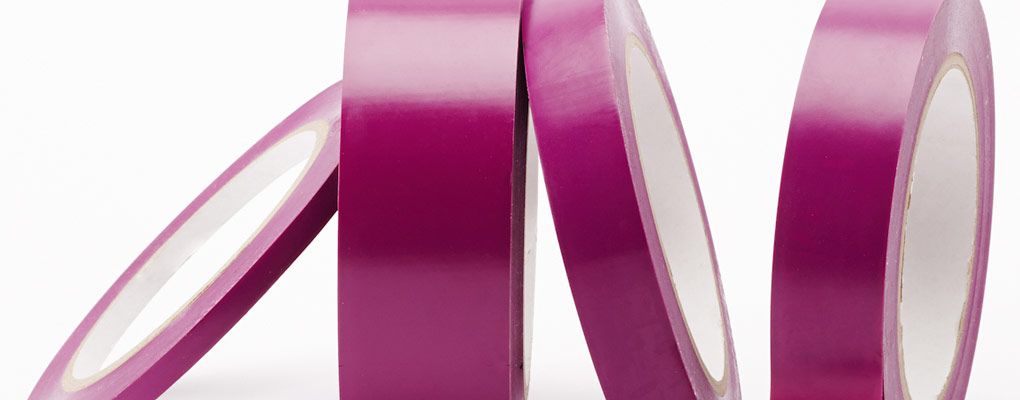

V10 Series - General Purpose Vinyl Tape
- Superior Quality with a Long Shelf-Life
- Effective Vapor and Moisture Barrier
- Highly Conformable
- Resistant to Aging, Sun, Water, Fungus, Bacteria, Oil, Acids, Alkalis and Corrosive Chemicals
- Good Abrasion, Impact and Rupture Resistance.
- Conforms to PPP-T-66E, Type 1, Class 2; A-A-1689A
Product Description:
Used for color coding (“write-on” capabilities); lane marking and safety coding to meet OSHA requirements; decorating, striping on vehicles, boats, and sporting equipment. Masking for Hard Chrome Plating, Electroplating, Type II and Type III Anodizing, Abrasive Blasting, Wet Painting, Fixture Wrapping, Harness and Pipe Wrapping; Duct and Joint Sealing.
Construction:
- Total Thickness 6.0 mils
- Adhesive Type Synthetic Rubber Resin
- Carrier Type Matte surface, soft PVC
- Color Purple
Specifications
- Maximum Temperature (F) 176°F
- Tensile Strength (lbs/inch) 16
- Elongation (%) 150
- Peel Adhesion (oz/inch) 22
- Moisture Absorption Less than 1.5%
- Moisture Vapor Less than 2.5% (gm/100 sq in/24hrs)
- Metal Corrosion None to Copper, Brass, Steel or Aluminum
- Government Specifications Conforms to PPP-T-66E, Type 1, Class 2; A-A-1689A
| Part Number | Length - YDS | Standard Width - IN | Width - IN | Length - M | Width - MM | Case Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|
|
12.7mm Purple Vinyl Tape with
V10-00127
|
36 | 1/2 in | 0.500 | 33 | 12.7 | 48 |
$2.65
$2.64/ROL
|
||
|
19.0mm Purple Vinyl Tape with
V10-00190
|
36 | 3/4 in | 0.750 | 33 | 19.1 | 32 |
$4.46/ROL
|
||
|
25.4mm Purple Vinyl Tape with
V10-00254
|
36 | 1 in | 1.000 | 33 | 25.4 | 24 |
$4.47/ROL
|
||
|
38.1mm Purple Vinyl Tape with
V10-00381
|
36 | 1 1/2 in | 1.500 | 33 | 38.1 | 16 |
$6.55/ROL
|
||
|
50.8mm Purple Vinyl Tape with
V10-00508
|
36 | 2 in | 2.000 | 33 | 50.8 | 12 |
$8.40
$8.39/ROL
|
