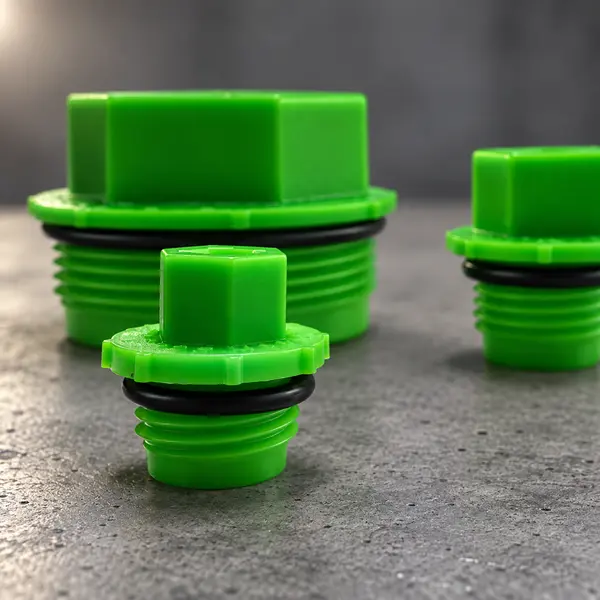

TPSP Series Port-Tite™ Threaded Port Sealing Plugs
- Made from High-Density Polyethylene for Increased Durability
- Integrated Flange and O-Ring Provide a Liquid and Air Tight Seal
- Protects Port from Damage and Contamination During Shipping and Handling
- Raised Hex Head and Socket Allow for Application by Hand, Socket, Wrench or #2 Phillips Screwdriver
- Designed to be Used for Masking as well as Protection during Shipping
Product Description:
Our Threaded Port Sealing Plug (TPSP) product line is a threaded plug line specifically engineered to tackle the tough requirements of masking off threaded ports. Made of high-density polyethlyene, Threaded Port Sealing Plugs provide a liquid tight seal, while maintaining reusability and reliability during masking.
Typical Applications:
- Used to protect ports from damage and contamination during coating and provides a liquid and air tight seal during shipping and handling.
Helpful Hint:
- The flange can be used to mask an offset region around the port hole during a finishing process
- Port-Tite™ can be used for protection during shipping and then discarded or re-used
Patent Pending
Part Number | Thread Size | FD - IN | PL - IN | RD | Hex | PCS/BAG | COLOR | Unit | Purchase | |
---|---|---|---|---|---|---|---|---|---|---|
9/16-18 Thread Size
TPSP-00563
|
9/16-18, FINE | 0.709 | 0.432 | 0.629 | 1/4" | 1500 | GREEN |
$135.000/1500 Per Bag
|
||
3/4-16 Thread Size
TPSP-00750
|
3/4-16, FINE | 0.956 | 0.500 | 0.800 | 7/16 | 750 | GREEN |
$84.750/750 Per Bag
|
||
7//-14 Thread
TPSP-00875
|
7/8-14, FINE | 1.081 | 0.625 | 1.005 | 1/2" | 400 | GREEN |
$46.000/400 Per Bag
|
||
1-1/2 Thread Size
TPSP-01875
|
1-7/8-12, COARSE | 2.059 | 0.750 | 1.943 | 1" | 100 | GREEN |
$34.300/100 Per BAG
|
||
M12X1.75 Thread Size
TPSP-M0472
|
M12X1.75, COARSE | 0.646 | 0.375 | 0.504 | M6 | 2000 | GREEN |
$156.000/2000 Per Bag
|
||
M14X1.5 Thread Size
TPSP-M0551
|
M14X1.5, FINE | 0.709 | 0.375 | 0.629 | M6 | 1500 | GREEN |
$117.000/1500 Per Bag
|
||
M16X1.5 Thread Size
TPSP-M0630
|
M16X1.5, FINE | 0.771 | 0.500 | 0.755 | M8 | 1000 | GREEN |
$83.000/1000 Per Bag
|
||
M154.5018X1.5 Thread Size
TPSP-M0709
|
M18X1.5, FINE | 0.894 | 0.500 | 0.818 | 14mm | 500 | GREEN |
$51.500/500 Per Bag
|
||
M22X1.5 Thread Size
TPSP-M0866
|
M22X1.5, FINE | 1.081 | 0.500 | 1.005 | M10 | 500 | GREEN |
$52.500/500 Per Bag
|
