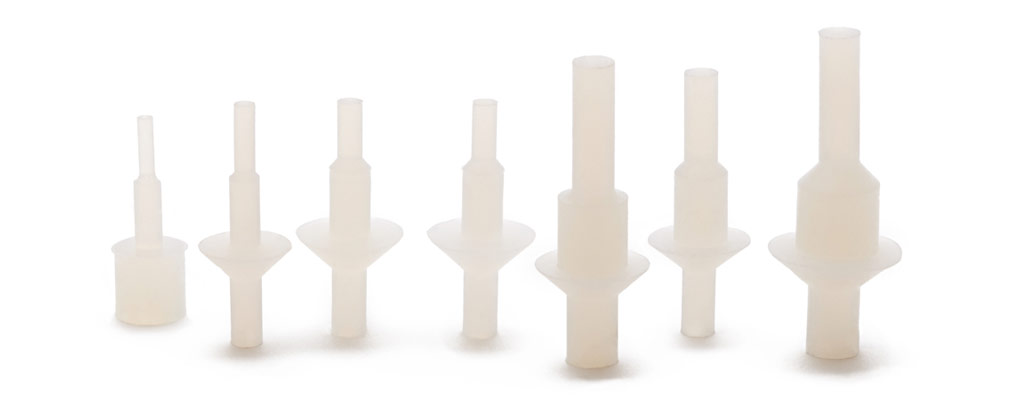

SOMS Series - Sink-O-Mask™ Plugs
- Masking Through Holes and Surrounding Washer Area
- Sink-O-Mask™ Plugs Feature Pull Tab for Easy Removal After Coating
- 600°F (315°C)
Product Decription:
The Sink-O-Mask™ (SOM™) should be used where it is necessary to protect both a through hole and its surrounding washer area. The tapered design of the flange resists lifting at the edges for a clean finish.
Helpful Hints:
- When plugging a hole, make sure that the plug diameter is larger than the diameter of the hole being plugged by at least 5%.
| Part Number | COLOR | PD - IN | A - IN | PL - IN | WD - IN | SD - IN | OL - IN | PD - MM | A - MM | PL - MM | WD MM | OL - MM | SD - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.138 Tag Diameter X 0.197" W"
SOMS X2012-C
|
CLEAR | 0.118 | 1.448 | 0.433 | 0.197 | 0.138 | 1.920 | 3.0 | 36.8 | 11.0 | 5.0 | 48.8 | 3.5 | 500 |
$81.12/BAG
|
||
|
0.138 Tag Diameter X 0.197" W"
SOMS X2012-EB
|
$81.12/BAG
|
||||||||||||||||
|
0.118 Tag Diameter X 0.311" W"
SOMS X3116-C
|
CLEAR | 0.157 | 1.448 | 0.394 | 0.311 | 0.118 | 1.232 | 4.0 | 20.0 | 10.0 | 7.9 | 31.3 | 3.0 | 500 |
$86.80/BAG
|
||
|
0.138 Tag Diameter X 0.394" W"
SOMS X4016-C
|
CLEAR | 0.157 | 0.821 | 0.394 | 0.394 | 0.138 | 1.378 | 4.0 | 20.9 | 10.0 | 10.0 | 35.0 | 3.5 | 500 |
$86.80/BAG
|
||
|
0.138 Tag Diameter X 0.394" W"
SOMS X4020-C
|
CLEAR | 0.197 | 0.787 | 0.394 | 0.394 | 0.138 | 1.307 | 5.0 | 20.0 | 10.0 | 10.0 | 33.2 | 3.5 | 500 |
$100.46/BAG
|
||
|
0.315"pd x 0.432"wd x0.158" td
SOMS X4032-C
|
CLEAR | 0.315 | 0.984 | 0.394 | 0.394 | 0.138 | 1.575 | 8.0 | 25.0 | 10.0 | 10.0 | 40.0 | 3.5 | 500 |
$114.75/BAG
|
||
|
0.402 Tag Diameter X 0.476" W"
SOMS X4816-C
|
CLEAR | 0.157 | 1.541 | 0.500 | 0.472 | 0.394 | 2.081 | 4.0 | 39.1 | 12.7 | 12.0 | 52.9 | 10.0 | 500 |
$57.38/BAG
|
||
|
0.165 Tag Diameter X 0.530" W"
SOMS X5317-C
|
CLEAR | 0.165 | 0.846 | 0.401 | 0.53 | 0.165 | 1.437 | 4.2 | 21.5 | 10.2 | 13.5 | 36.5 | 4.2 | 500 |
$133.98/BAG
|
||
|
0.197 Tag Diameter X 0.591" W"
SOMS X6020-C
|
CLEAR | 0.197 | 1.016 | 0.394 | 0.591 | 0.197 | 1.606 | 5.0 | 25.8 | 10.0 | 15.0 | 40.8 | 5.0 | 250 |
$66.99/BAG
|
||
|
0.197 Tag Diameter X 0.591" W"
SOMS X6024-C
|
CLEAR | 0.236 | 0.787 | 0.394 | 0.591 | 0.197 | 1.378 | 6.0 | 20.0 | 10.0 | 15.0 | 35.0 | 5.0 | 250 |
$66.99/BAG
|
||
|
0.197 Tag Diameter X 0.591" W"
SOMS X6032-C
|
CLEAR | 0.315 | 0.994 | 0.394 | 0.591 | 0.197 | 1.555 | 8.0 | 25.2 | 10.0 | 15.0 | 39.5 | 5.0 | 250 |
$69.00/BAG
|
||
|
0.295 Tag Diameter X 0.649" W"
SOMS X6540-C
|
CLEAR | 0.394 | 1.169 | 0.382 | 0.649 | 0.295 | 1.762 | 10.0 | 29.7 | 9.7 | 16.5 | 44.8 | 7.5 | 250 |
$69.00/BAG
|
||
|
0.295 Tag Diameter X 0.787" W"
SOMS X7940-C
|
CLEAR | 0.394 | 1.177 | 0.394 | 0.787 | 0.295 | 1.783 | 10.0 | 29.9 | 10.0 | 20.0 | 45.3 | 7.5 | 100 |
$38.27/BAG
|
||
|
0.295 Tag Diameter X 0.787" W"
SOMS X7948-C
|
CLEAR | 0.472 | 1.272 | 0.394 | 0.787 | 0.295 | 1.862 | 12.0 | 32.3 | 10.0 | 20.0 | 47.3 | 7.5 | 100 |
$39.41/BAG
|
