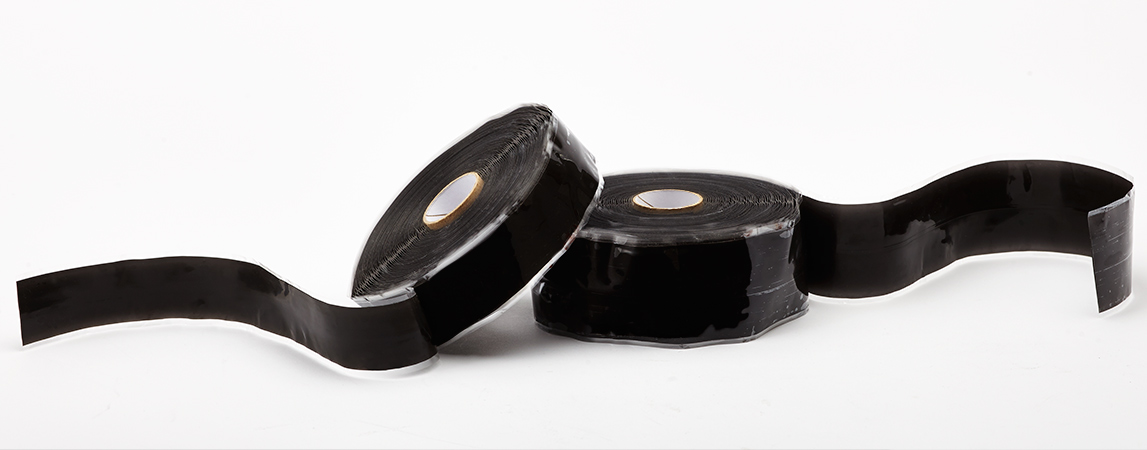

S30 Series - Silicone Fusing Tape

  • Maximum Temperature: 600°F
  • Excellent Insulation Value up to 12,000 Volts
  • No Adhesive; Only Sticks to Itself
  • Waterproof
  • Form Fitting

Product Description:

Our high temperature silicone self-fusing tape line (S10/S20/S30) has no adhesive, leaves no residue, and fuses to itself in 24 hours to form a permanent watertight seal. It is ideal for high temperature applications such as electrical insulation, splicing, and cable harnesses.

Specifications:

  • Temperature Range (F) Continuous: -65 to 500°F;
  • Intermittent: -85 to 600°F
  • Tensile Strength (PSI) 700 PSI Minimum (ASTM D-412)
  • Elongation (%) 300
  • Tear Resistance (PSI) 85
  • Durometer (Shore A) 50 (Room Cured)
  • Dielectric Strength (VPM) 200 - 400
  • Dielectric Constant (1 KHz) 2.95
  • Dissipation Factor (1KHz) <.0004""
  • Insulation Resistance (ohms/cm) 3 X 10^14
  • Moisture Absorption 3% Max. by weight
  • Government Specifications Meets or Exceeds A-A-59163 (Supersedes MILS I-46852C)
Filter
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty COLOR Unit Purchase
25.4mm Black Silicone Self-Adh
S30-00254-B
12 1 in 1.000 11 25.4 8 BLACK
Buy 1 $14.810/ROL
Buy 5 $13.770/ROL
In Stock
38.1mm Black Silicone Self-Adh
S30-00381-B
12 1 1/2 in 1.500 11 38.1 8 BLACK
Buy 1 $16.590/ROL
Buy 5 $15.430/ROL
In Stock
50.8mm Black Silicone Self-Adh
S30-00508-B
12 2 in 2.000 11 50.8 8 BLACK
Buy 1 $18.370/ROL
Buy 5 $17.080/ROL
In Stock
