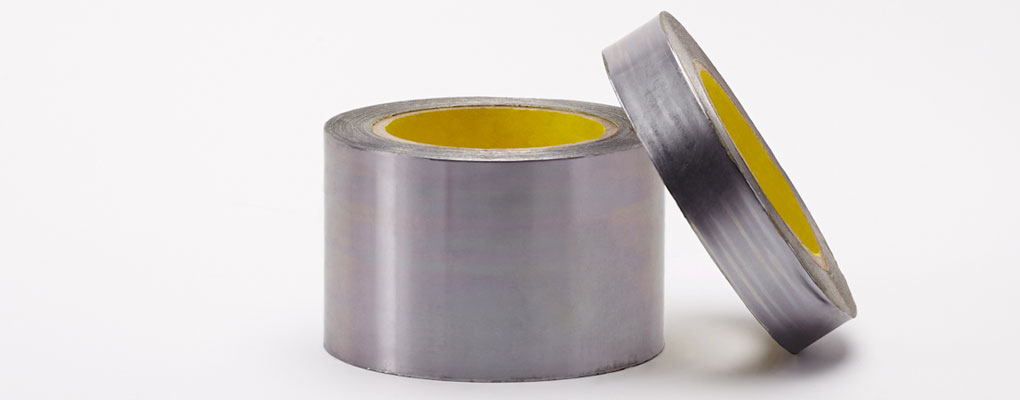

P14 Series - Lead Foil Tape

  • Electrically Conductive
  • Malleable and Conforms to Surfaces
  • Good Chemical Resistance
  • Minimizes Undercutting for Straighter Lines

Product Description:

P14 (421) has a 5 mil nominal lead foil backing with a rubber adhesive, which is well suited as a maskant in electroplating and as a moisture and radiation barrier in certain applications. Additional applications include Radiation Barrier; Moisture Barrier; Chemical Milling; X-Ray Plate Masking.

Construction:

  • Total Thickness 6.8 mils (w/o liner)
  • Adhesive Thickness 2.1 mils
  • Carrier Thickness 4.7 mils
  • Adhesive Type Rubber (green)
  • Carrier Type Lead foil

Specifications:

  • Temperature Range (°F) -60 to 225
  • Tensile Strength (lbs/inch) 20
  • Elongation (%) 12
  • Peel Adhesion (oz/inch) 45
  • Moisture Vapor 0.1g H2O/100sq. In./24hrs
  • Government Specifications Can be certified to Fed. Specs. H-T-29A
  • Note: Wear protective gloves and/or wash hands after working with tape. Lead will slowly leach into water when submerged. Leaching will accelerate as acidity increases. This material when disposed of separately is classified as RCRA hazardous waste. Please consult applicable Federal, State and Local regulations for proper disposal.
  • 225°F intermittent rating. Contact an EPSI representative for recommendations on tapes for continuous or extended use. Many factors can affect the use and performance of a product in a particular application. This product should be tested to determine the suitability for its intended use.
Part Number Length - YDS Standard Width - IN Width - IN Case Qty Unit Purchase
12.7mm Lead Foil Tape (0.500 "
P14-00127
36 1/2 in 0.500 72
Buy 12 $46.030/ROL
Buy 24 $42.810/ROL
In Stock
25.4mm Lead Foil Tape (1.000 "
P14-00254
36 1 in 1.000 36
Buy 1 $123.950/ROL
Buy 9 $115.280/ROL
In Stock
38.1mm Lead Foil Tape (1.500 "
P14-00381
36 1 1/2 in 1.500 24
Buy 1 $109.210/ROL
Buy 6 $101.570/ROL
In Stock
50.8mm Lead Foil Tape (2.000 "
P14-00508
36 2 in 2.000 24
Buy 1 $246.720/ROL
Buy 6 $229.450/ROL
In Stock
101.6mm Lead Foil Tape (4.000"
P14-01016
36 4 in 4.000 12
Buy 1 $271.770/ROL
Buy 4 $252.740/ROL
In Stock
