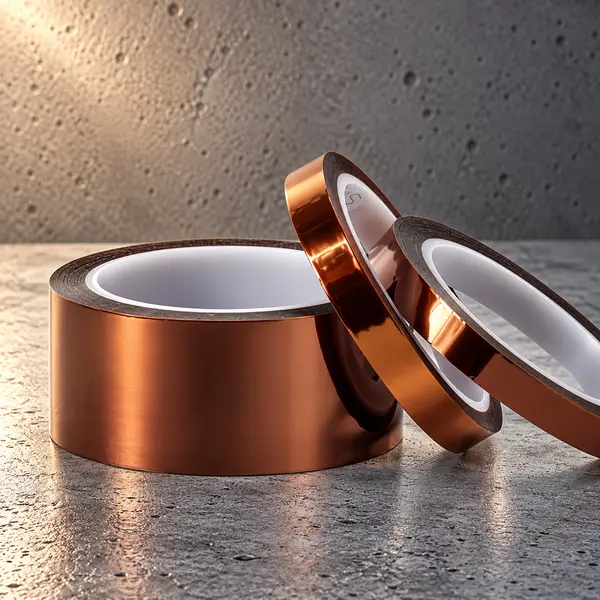

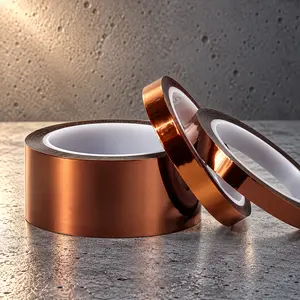

K12 Series - 1 mil Polyimide Tape

Technical Specifications:

  • Maximum Temperature: 500°F
  • K12 is Thin and Conformable, Enabling Masking of Uneven Surfaces
  • Removes Cleanly without Adhesive Residue After Exposure to Heat and/or Chemicals
  • Resistant to Chemical Attack
  • Flame-Retardant and Excellent Electrical Insulation --

PRODUCT DESCRIPTION

Our K12 polyimide film tape combines a 1.6 mil high temperature pressure sensitive adhesive with a 1.0 mil flexible carrier to create a

tape product which is perfect for high temperature masking needs. Typical applications include the protection of printed circuit board

gold finger contact leads during wave soldering. Typical applications include the electrical insulation of high temperature coils,

motors and transformers meeting Class H requirements.

TYPICAL APPLICATION

Powder Coating, E-Coating, Wave Soldering, Circuit Board Insulation, and Hot Air Leveling. The product is UL approved for use in the

electrical insulation applications meeting class H requirements.

CONSTRUCTION K12

  • Total Thickness 2.6 mils
  • Adhesive Thickness 1.6 mils
  • Carrier Thickness 1.0 mil
  • Adhesive Type Silicone
  • Carrier Type Polyimide
  • Color Amber

SPECIFICATIONS K12

  • Maximum Temperature (F) 500°
  • Tensile Strength (lbs/inch) 30
  • Elongation (%) 60
  • Peel Adhesion (oz/inch) 25
  • Dielectric Strength (volts) 6800
  • Government Specifications UL Number E197661
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty Unit Purchase
3.2mm 1-mil Polyimide Tape
K12-00032
36 1/8 in 0.125 33 3.2 192
Buy 1 $2.550/ROL
Buy 192 $2.470/ROL
Buy 960 $2.380/ROL
In Stock
6.4mm 1-mil Polyimide Tape (0.
K12-00064
36 1/4 in 0.250 33 6.4 96
Buy 1 $5.110/ROL
Buy 96 $4.930/ROL
Buy 480 $4.750/ROL
In Stock
9.5mm 1-mil Polyimide Tape (0.
K12-00095
36 3/8 in 0.375 33 9.5 64
Buy 1 $7.590/ROL
Buy 64 $7.320/ROL
Buy 320 $7.060/ROL
In Stock
12.7mm 1-mil Polyimide Tape (0
K12-00127
36 1/2 in 0.500 33 12.7 48
Buy 1 $7.800/ROL
Buy 48 $7.530/ROL
Buy 240 $7.260/ROL
In Stock
15.9mm 1-mil Polyimide Tape (0
K12-00159
36 5/8 in 0.625 33 15.9 40
Buy 1 $9.760/ROL
Buy 40 $9.420/ROL
Buy 200 $9.080/ROL
In Stock
19.0mm 1-mil Polyimide Tape (0
K12-00190
36 3/4 in 0.750 33 19.0 32
Buy 1 $11.680/ROL
Buy 32 $11.270/ROL
Buy 160 $10.860/ROL
In Stock
25.4mm 1-mil Polyimide Tape (1
K12-00254
36 1 in 1.000 33 25.4 24
Buy 1 $15.600/ROL
Buy 24 $15.060/ROL
Buy 120 $14.510/ROL
In Stock
28.6mm 1-mil Polyimide Tape (1
K12-00286
36 1 1/8 in 1.125 33 28.6 20
Buy 1 $17.570/ROL
Buy 20 $16.960/ROL
Buy 100 $16.340/ROL
In Stock
31.8mm 1-mil Polyimide Tape (1
K12-00318
36 1 1/4 in 1.250 33 31.8 20
Buy 1 $19.540/ROL
Buy 20 $18.850/ROL
Buy 100 $18.170/ROL
In Stock
38.1mm 1-mil Polyimide Tape (1
K12-00381
36 1 1/2 in 1.500 33 38.1 16
Buy 1 $23.420/ROL
Buy 16 $22.600/ROL
Buy 80 $21.780/ROL
In Stock
50.8mm 1-mil Polyimide Tape (2
K12-00508
36 2 in 2.000 33 50.8 12
Buy 1 $31.190/ROL
Buy 12 $30.090/ROL
Buy 60 $29.000/ROL
In Stock
76.2mm 1-mil Polyimide Tape (3
K12-00762
36 3 in 3.000 33 76.2 8
Buy 1 $46.790/ROL
Buy 8 $45.150/ROL
Buy 40 $43.510/ROL
In Stock
101.6mm 1-mil Polyimide Tape (
K12-01016
36 4 in 4.000 33 101.6 8
Buy 1 $62.410/ROL
Buy 8 $60.230/ROL
Buy 40 $58.040/ROL
In Stock
152.4mm 1-mil Polyimide Tape (
K12-01524
36 6 in 6.000 33 152.4 4
Buy 1 $93.620/ROL
Buy 4 $90.340/ROL
Buy 20 $87.070/ROL
In Stock
