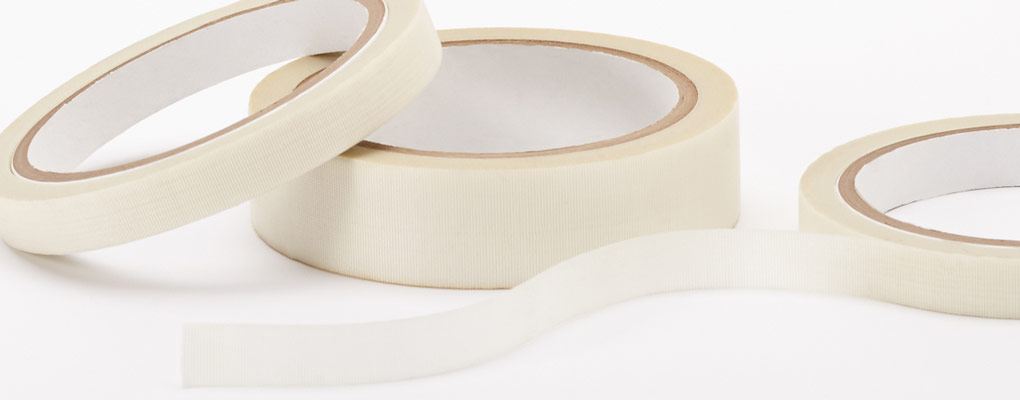

F12 Series - Fiberglass [Glass Cloth] Tape

  • Maximum Temperature: 500°F
  • Total Thickness: 7.0 mils
  • Maximum Resistance to Flagging and Varnish Solvents
  • High Tensile Strength
  • Non-Corrosive
  • Extremely High Abrasive Resistance; Fray-Free Edges

Product Description:

F12 is a fiberglass reinforced cloth substrate with a proprietary Therm-X silicone adhesive system. Our F12 fiberglass tape combines a 2.0 mil Silicone adhesive with 5.0 mil glass cloth carrier to create a tape product which is ideal for shot blasting, grit blasting, thermal spray and plasma spray applications. Typically, fiberglass tape is used to protect machined surfaces during shot blasting applications. F12 is an excellent choice in thermal spray and plasma spray applications due to its excellent resistance to intense heat. Not recommended for applications involving immersion coating due to the porous nature of the glass cloth backing.500°F intermittent rating. Contact an EPSI representative for recommendations on tapes for continuous or extended use. Many factors can affect the use and performance of a product in a particular application. This product should be tested to determine the suitability for its intended use.

Construction:

  • Total Thickness 7.0 mils
  • Adhesive Thickness 2.0 mils
  • Carrier Thickness 5.0 mils
  • Adhesive Type Silicone
  • Carrier Type Glass Cloth
  • Color White

Specifications:

  • Maximum Temperature (F) 500
  • Tensile Strength (lbs/inch) 170
  • Elongation (%) 8
  • Peel Adhesion (oz/inch) 40
  • Dielectric Strength (volts) 3000
  • Insulation Resistance (meg ohms) 1500
Part Number Length - YDS Standard Width - IN Width - IN Length - M Width - MM Case Qty Unit Purchase
9.5mm Fiberglass Tape (0.375 "
F12-00095
36 3/8 in 0.375 33 9.5 64
Buy 1 $7.800/ROL
Buy 64 $7.410/ROL
Buy 320 $7.260/ROL
In Stock
12.7mm Fiberglass Tape (0.500"
F12-00127
36 1/2 in 0.500 33 12.7 48
Buy 1 $8.030/ROL
Buy 48 $7.630/ROL
Buy 240 $7.470/ROL
In Stock
19.0mm Fiberglass Tape (0.750"
F12-00190
36 3/4 in 0.750 33 19.1 32
Buy 1 $12.010/ROL
Buy 32 $11.410/ROL
Buy 160 $11.170/ROL
In Stock
25.4mm Fiberglass Tape (1.000"
F12-00254
36 1 in 1.000 33 25.4 24
Buy 1 $16.050/ROL
Buy 24 $15.250/ROL
Buy 120 $14.920/ROL
In Stock
31.8mm Fiberglass Tape (1.250"
F12-00318
36 1 1/4 in 1.250 33 31.8 20
Buy 1 $20.100/ROL
Buy 20 $19.090/ROL
Buy 100 $18.690/ROL
In Stock
38.1mm Fiberglass Tape (1.500"
F12-00381
36 1 1/2 in 1.500 33 38.1 16
Buy 1 $24.630/ROL
Buy 16 $23.400/ROL
Buy 80 $22.910/ROL
In Stock
50.8mm Fiberglass Tape (2.000"
F12-00508
36 2 in 2.000 33 50.8 12
Buy 1 $32.100/ROL
Buy 12 $30.490/ROL
Buy 60 $29.850/ROL
In Stock
63.5mm Fiberglass Tape (2.500"
F12-00635
36 2 1/2 in 2.500 33 63.5 8
Buy 1 $40.120/ROL
Buy 8 $38.120/ROL
Buy 40 $37.310/ROL
In Stock
76.2mm Fiberglass Tape (3.000"
F12-00762
36 3 in 3.000 33 76.2 8
Buy 1 $48.150/ROL
Buy 8 $45.740/ROL
Buy 40 $44.780/ROL
In Stock
101.6mm Fiberglass Tape (4.000
F12-01016
36 4 in 4.000 33 101.6 8
Buy 1 $64.200/ROL
Buy 8 $60.990/ROL
Buy 40 $59.710/ROL
In Stock
127.0mm Fiberglass Tape (5.000
F12-01270
36 5 in 5.000 33 127.0 4
Buy 1 $80.250/ROL
Buy 4 $76.240/ROL
Buy 20 $74.630/ROL
In Stock
