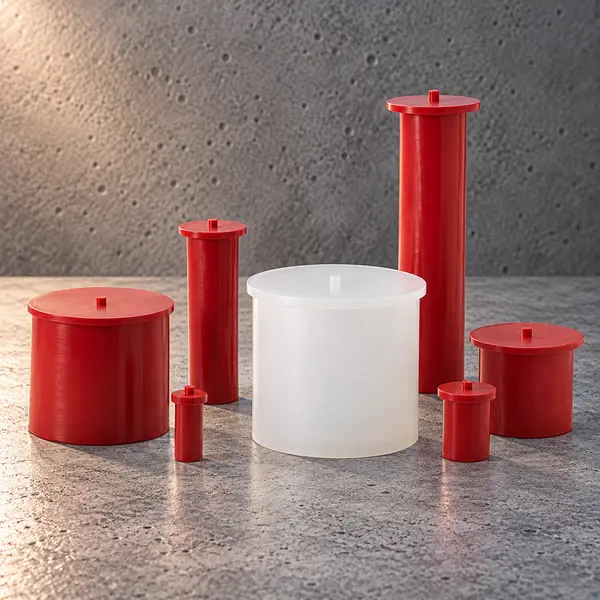

EZY™ Series - Easy Caps
- EZY™ Caps are ideal for large diameter or long length products.
- Specially designed internal ring allows for easy placement and a liquid-tight seal.
- Oversized head for easy removal.
- Many sizes available with built-in air vent to eliminate the effects of pressure build-up.
- EZY™ Caps are reusable and will not melt or harden.
- EZY™ Caps offer fine line masking.
Product Description:
Our EZY™ Cap product line is the best choice when masking off threaded studs or protrusions. Many EZY™ Caps are molded with an air vent which acts as a relief valve for applications where internal pressure is a problem. All EZY™ Caps feature an oversized head and a unique internal gripping design, which makes application and removal easy.
Helpful Hints:
- If internal pressure is causing blowout, place a slitin or remove the nipple. This will allow for venting of internal pressure (not recommended for immersion coatings). ( Due to the internal ring, a much smaller ID can be used compared with a standard cap.
- Size at least 10% less than the stud OD.
| Part Number | COLOR | ID - IN | OD - IN | IL - IN | ID - MM | OD - MM | IL - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.000 (76.2mm) ID X 2.920" (7"
EZY 3000X2920
|
CLEAR | 3.000 | 3.240 | 2.920 | 76.2 | 82.3 | 74.2 | 25 |
$188.63/BAG
|
||
|
0.187 (4.7mm) ID X 1.377" (35"
EZY 0187X1377-F
|
RUSTY | 0.187 | 0.427 | 1.377 | 4.7 | 10.8 | 35.0 | 500 |
$114.69/BAG
|
||
|
0.236 (6.0mm) ID X 1.180" (30"
EZY 0236X1180-F
|
RUSTY | 0.236 | 0.476 | 1.180 | 6.0 | 12.1 | 30.0 | 250 |
$62.01/BAG
|
||
|
0.255 (6.5mm) ID X 0.910" (23"
EZY 0255X0910-F
|
RUSTY | 0.255 | 0.495 | 0.910 | 6.5 | 12.6 | 23.1 | 250 |
$55.29/BAG
|
||
|
0.275 (7.0mm) ID X 1.180" (30"
EZY 0275X1180-F
|
RUSTY | 0.275 | 0.515 | 1.180 | 7.0 | 13.1 | 30.0 | 250 |
$58.64/BAG
|
||
|
0.294 (7.5mm) ID X 1.330" (33"
EZY 0294X1330-F
|
RUSTY | 0.294 | 0.534 | 1.330 | 7.5 | 13.6 | 33.8 | 250 |
$70.85/BAG
|
||
|
0.315 (8.0mm) ID X 0.974" (24"
EZY 0315X0974-F
|
RUSTY | 0.315 | 0.555 | 0.974 | 8.0 | 14.1 | 24.7 | 250 |
$68.63/BAG
|
||
|
0.375 (9.5mm) ID X 1.421" (36"
EZY 0375X1421-F
|
RUSTY | 0.375 | 0.615 | 1.421 | 9.5 | 15.6 | 36.1 | 250 |
$87.14/BAG
|
||
|
0.433 (11.0mm) ID X 0.950" (2"
EZY 0433X0950-F
|
RUSTY | 0.433 | 0.673 | 0.950 | 11.0 | 17.1 | 24.1 | 250 |
$105.57/BAG
|
||
|
0.433 (11.0mm) ID X 1.180" (3"
EZY 0433X1180-F
|
RUSTY | 0.433 | 0.673 | 1.180 | 11.0 | 17.1 | 30.0 | 250 |
$84.60/BAG
|
||
|
0.456 (11.6mm) ID X 2.000" (5"
EZY 0456X2000-F
|
RUSTY | 0.456 | 0.732 | 2.000 | 11.6 | 18.6 | 50.8 | 250 |
$144.08/BAG
|
||
|
0.531 (13.5mm) ID X 1.180" (3"
EZY 0531X1180-F
|
RUSTY | 0.531 | 0.771 | 1.180 | 13.5 | 19.6 | 30.0 | 100 |
$41.07/BAG
|
||
|
0.687 (17.4mm) ID X 1.180" (3"
EZY 0687X1180-F
|
RUSTY | 0.687 | 0.977 | 1.180 | 17.4 | 24.8 | 30.0 | 100 |
$52.48/BAG
|
||
|
0.800 (20.3mm) ID X 3.230" (8"
EZY 0800X3230-F
|
RUSTY | 0.800 | 1.108 | 3.230 | 20.3 | 28.1 | 82.0 | 50 |
$96.16/BAG
|
||
|
1.288 (32.7mm) ID X 2.500" (6"
EZY 1288X2500-F
|
RUSTY | 1.288 | 1.528 | 2.500 | 32.7 | 38.8 | 63.5 | 50 |
$73.91/BAG
|
||
|
2.250 (57.2mm) ID X 1.920" (4"
EZY 2250X1920-F
|
RUSTY | 2.250 | 2.490 | 1.920 | 57.2 | 63.2 | 48.8 | 25 |
$129.97/BAG
|
||
|
2.500 (63.5mm) ID X 2.420" (6"
EZY 2500X2420-F
|
RUSTY | 2.500 | 2.740 | 2.420 | 63.5 | 69.6 | 61.5 | 25 |
$174.99/BAG
|
||
|
2.750 (69.9mm) ID X 2.670" (6"
EZY 2750X2670-F
|
RUSTY | 2.750 | 2.990 | 2.670 | 69.9 | 75.9 | 67.8 | 25 |
$188.90/BAG
|
