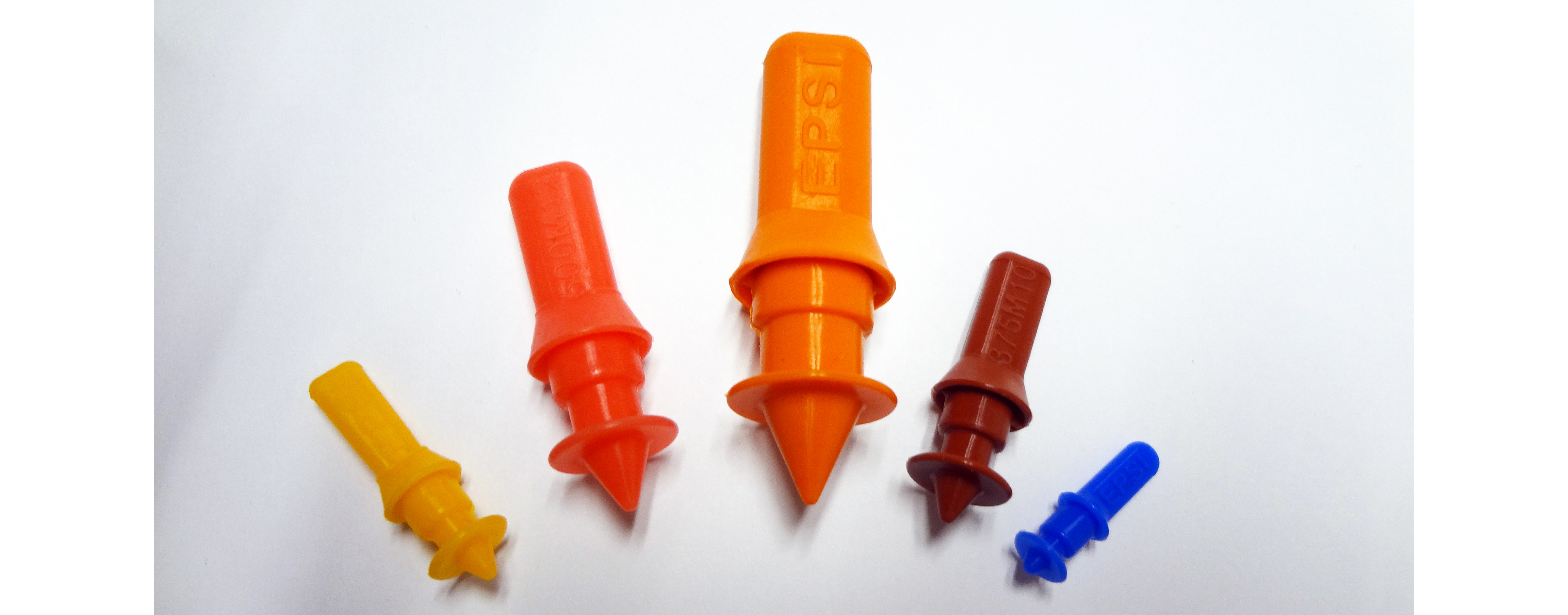

DFP Series Weld-Tite™ Dual Flanged Push Plug
- EPSI Exclusive Flex Flange Ensures Tight Fit
- Ergo-Designed Handle Allows for Quick Installation and Removal
- Designed to Fit the Most Common Metric and English Sized Weld Nuts
- Made with NE-G High-Grade, High-Temp Silicone to Stand Up to Abuse and Repeated Use
Product Description:
EPSI’s Weld-Tite™ (DFP) dual flanged push plugs are designed to fit the most common metric weld nut sizes. These durable pull plugs effectively mask off the chamfer and entire weld nut.
Typical Applications:
- Used in powder coating, E-coating, anodizing, wet-spray and Plating.
Helpful Hint:
- Weld-Tite™ is the perfect alternative to traditional dual washer pull plugs in applications where access to the weld nut is limited.
Patent Pending
| Part Number | COLOR | PD - IN | GAP - IN | DD - IN | SD - IN | OL - IN | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|
|
DUAL FLANGED PULL PLUG
DFP-250M06-SU
|
BLUE | 0.187 | 0.254 | 0.275 | 0.265 | 0.882 | 500 |
$33.17/BAG
|
||
|
DUAL FLANGE PLUG 1/4 M06
DFP-250M06-SU
|
BLUE | 0.187 | 0.254 | 0.275 | 0.265 | 0.882 | 500 |
$33.17/BAG
|
||
|
DUAL FLANGE PLUG 5/16 M08
DFP-313M08-SL
|
YELLOW | 0.247 | 0.281 | 0.370 | 0.360 | 1.203 | 500 |
$44.95/BAG
|
||
|
DUAL FLANGE PLUG 3/8 M10
DFP-375M10-SF
|
Rusty Red | 0.303 | 0.327 | 0.460 | 0.450 | 1.370 | 250 |
$39.10/BAG
|
||
|
DUAL FLANGE PLUG 1/2 M12
DFP-500M12-SR
|
RED | 0.392 | 0.379 | 0.550 | 0.540 | 1.680 | 250 |
$76.89/BAG
|
||
|
DUAL FLANGE PLUG 5/8 M16
DFP-625M16-SO
|
Orange | 0.521 | 0.481 | 0.355 | 0.700 | 2.103 | 100 |
$67.65/BAG
|
