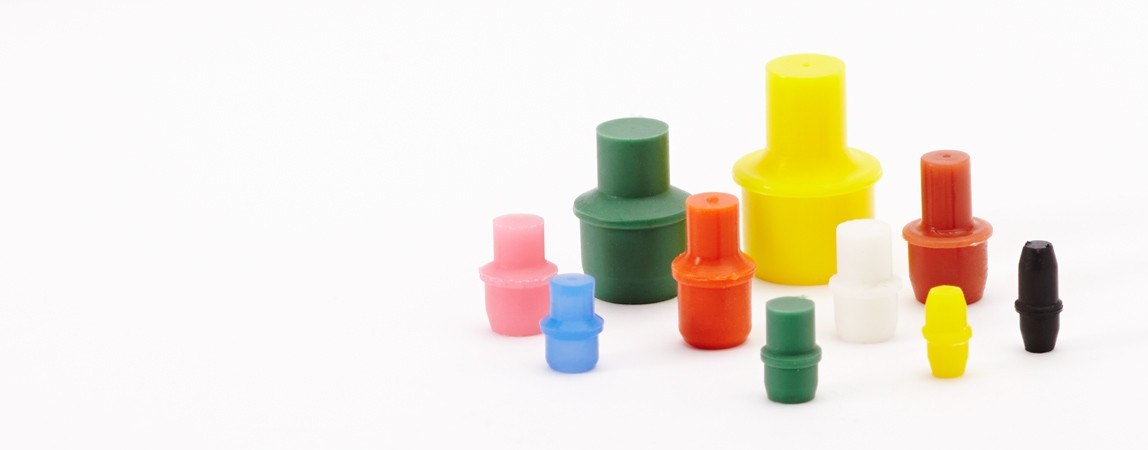

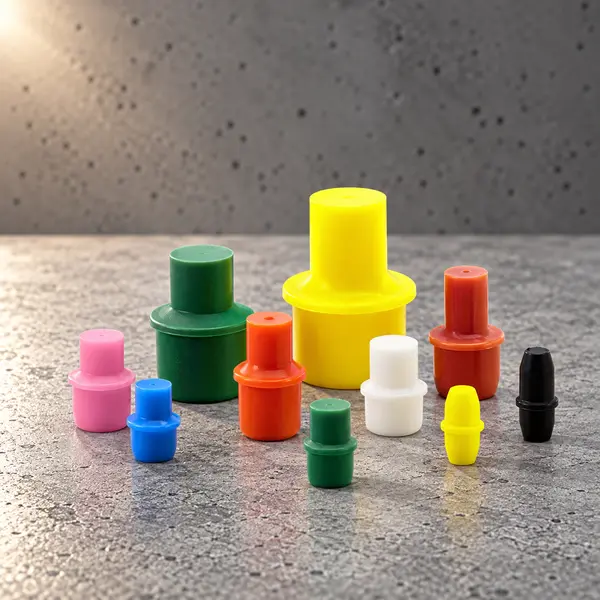

Shallow Blind Hole Plugs Designed for Caterpillar

  • Designed for Caterpillar
  • Shallow Design is Ideal for Blind Hole Applications
  • Flange Geometry is Specially Engineered to Mask off Lead-In Chamfers of Threads
  • Make Sure Diameter of Mask is at Least 5% Greater than Hole Size
  • 600° F (315° C)

Product Description:

Our Blind-Hole Threaded Mask (BTM) product line is the answer to the common problem of masking off blind threaded holes. The BTM product line has several features engineered into their design to ensure complete sealing of threads.

Filter
Part Number ID - IN OD - IN PD - IN A PL - IN OL - IN ID - MM OD - MM PD - MM PL - MM OL - MM PCS/BAG COLOR Unit Purchase
Blind Hole Thread Mask - M06
C-BTM M06
0.080 0.265 0.218 120° 0.200 0.693 2.0 6.7 5.5 5.1 17.6 500 BLUE
List Price $27.503/500 Per BAG
Buy 1 $27.500/500 Per BAG
Buy 5 $25.573/500 Per BAG
In Stock
Blind Hole Thread Mask - M08
C-BTM M08
0.135 0.360 0.292 120° 0.270 0.860 3.4 9.1 7.4 6.9 21.8 500 Red
$36.688/500 Per BAG
In Stock
Blind Hole Thread Mask - M10
C-BTM M10
0.213 0.480 0.358 120° 0.235 0.860 5.4 12.2 9.1 6.0 21.8 250 GREEN
Buy 1 $25.676/250 Per BAG
Buy 5 $23.870/250 Per BAG
In Stock
Blind Hole Thread Mask - M12
C-BTM M12
0.215 0.540 0.435 120° 0.240 0.860 5.5 13.7 11.0 6.1 21.8 250 Yellow
List Price $50.651/250 Per BAG
Buy 1 $50.650/250 Per BAG
Buy 5 $47.100/250 Per BAG
In Stock
Blind Hole Thread Mask - M16
C-BTM M16
0.350 0.700 0.590 120° 0.370 1.091 8.9 17.8 15.0 9.4 27.7 100 Orange
List Price $31.383/100 Per BAG
Buy 1 $31.380/100 Per BAG
Buy 5 $29.185/100 Per BAG
In Stock
