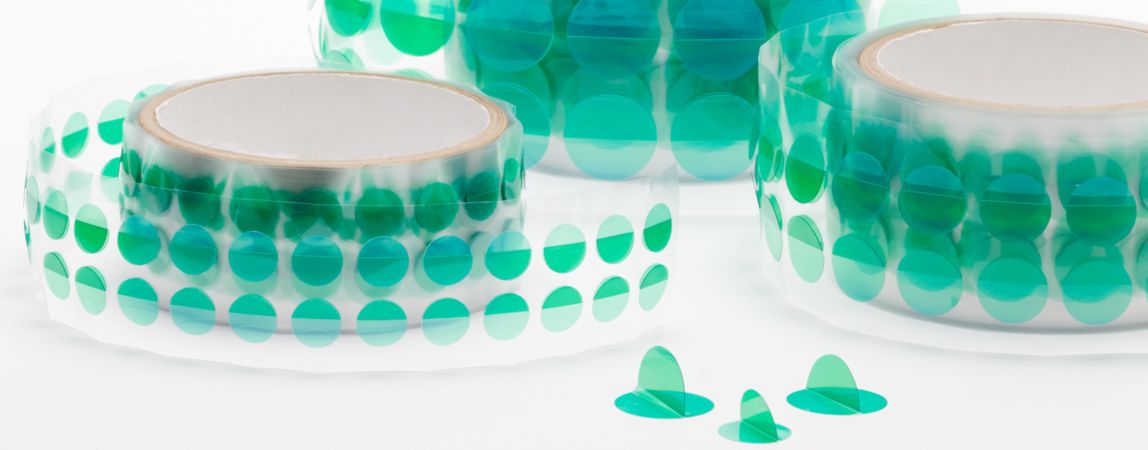

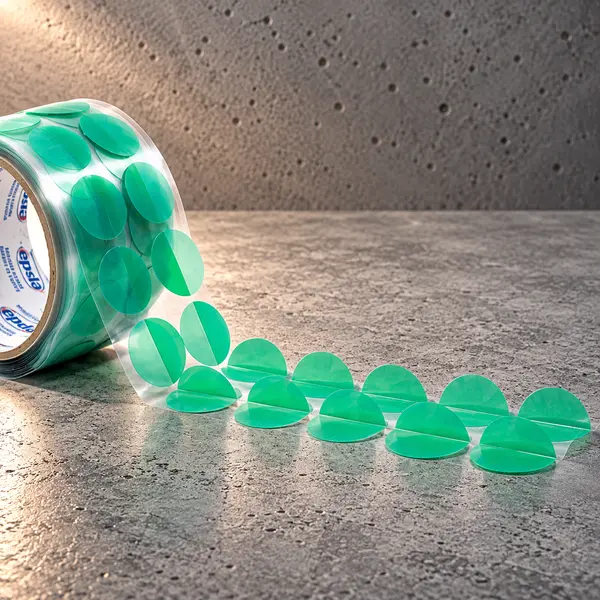

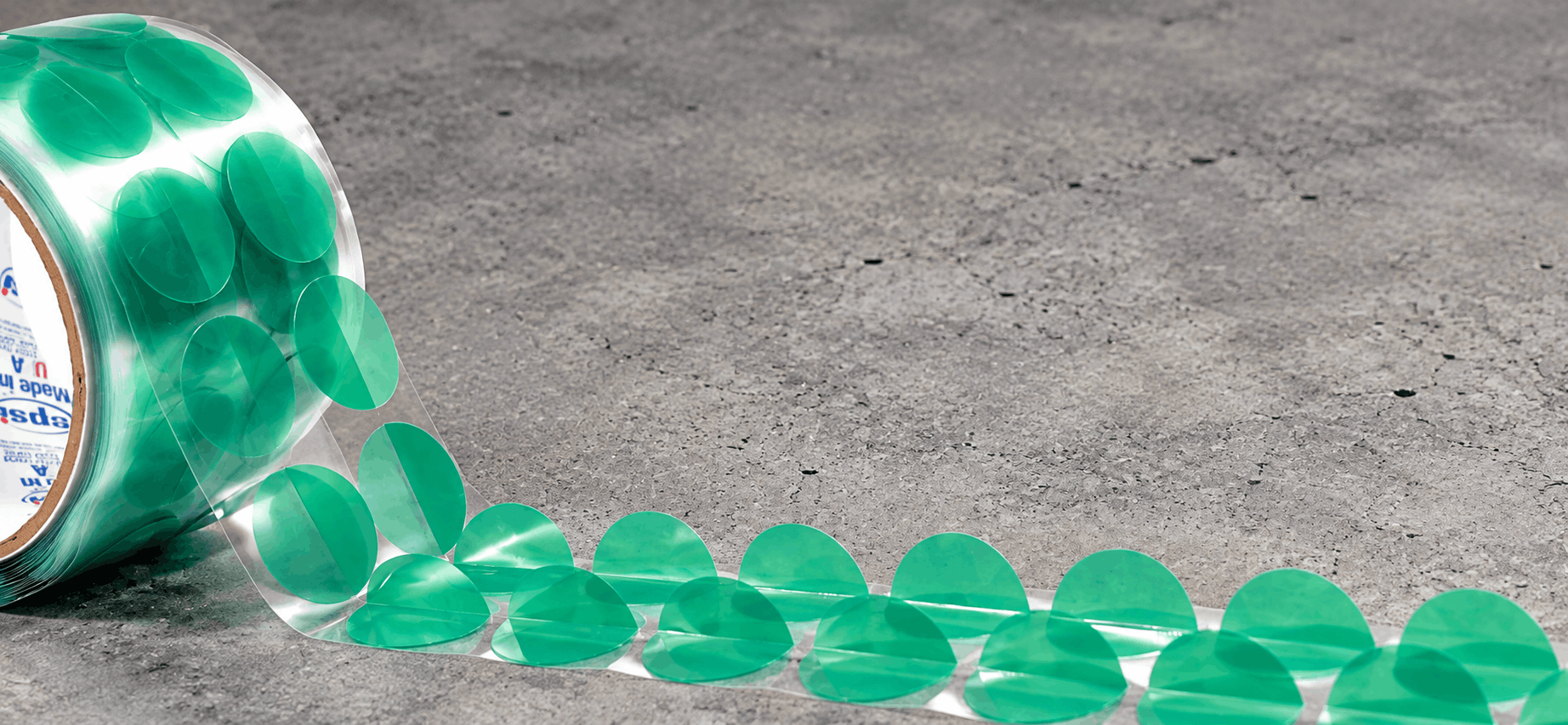

AW12 Series - Green Wishbone™ Discs

  • Maximum Temperature: 400°F
  • Total Thickness (mils): 3.5 mils (w/o liner)

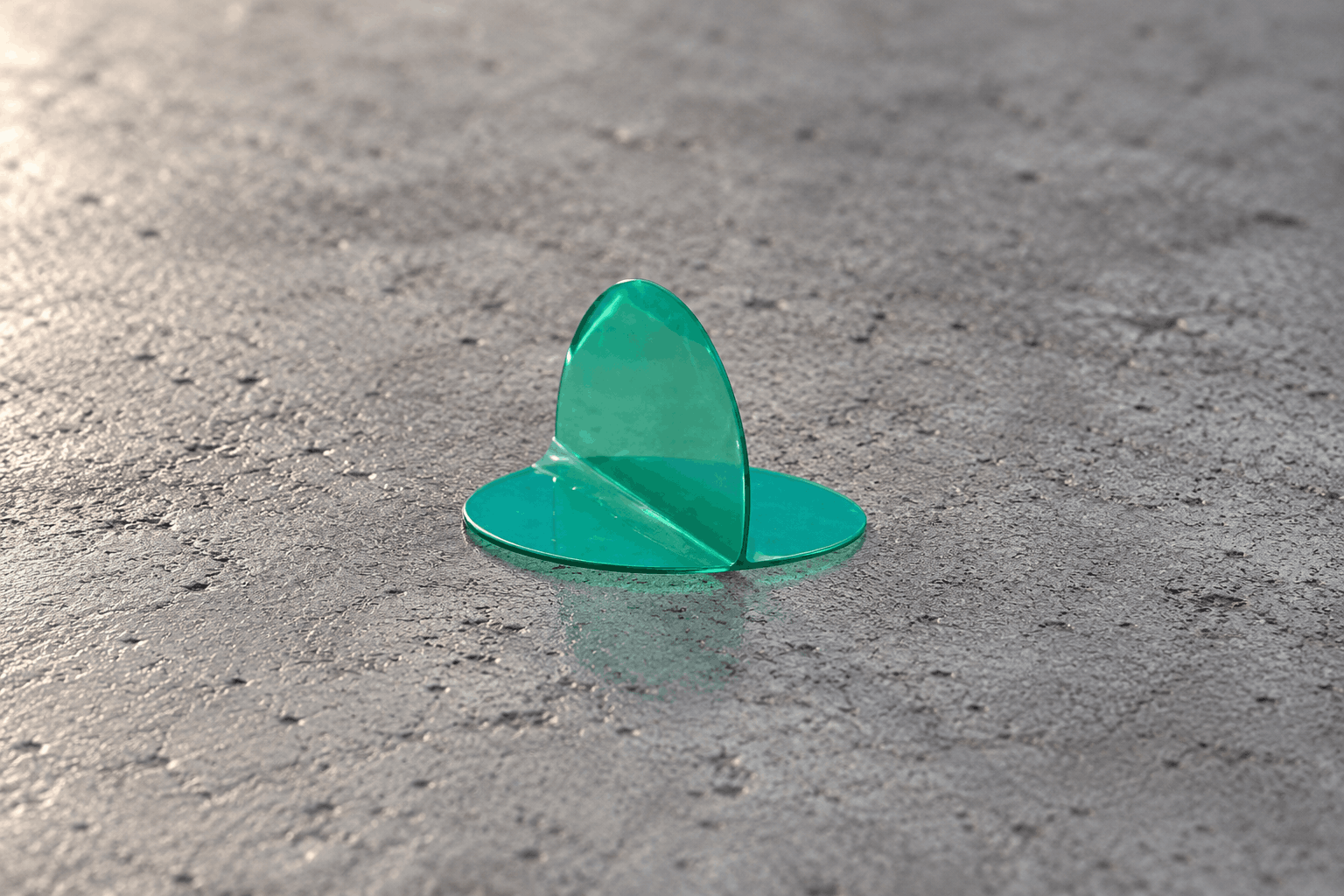

  • Patented Pull Up Tab for Easy Placement and Removal
  • Removal Tab in Center Eliminates Shadow Effect Found in Other Designs
  • Easy-To-Find Tab; Even under Thickest Coatings
  • Hi-Temperature Silicone Adhesive System
  • Removes Cleanly After Use
  • No Shrinkage

Product Description:

AW12 is a polyester film, single coated with a silicone pressure sensitive adhesive. Tape is laminated with a center tab, and discs are rotary die-cut on a specially formulated fluorosilicone liner.

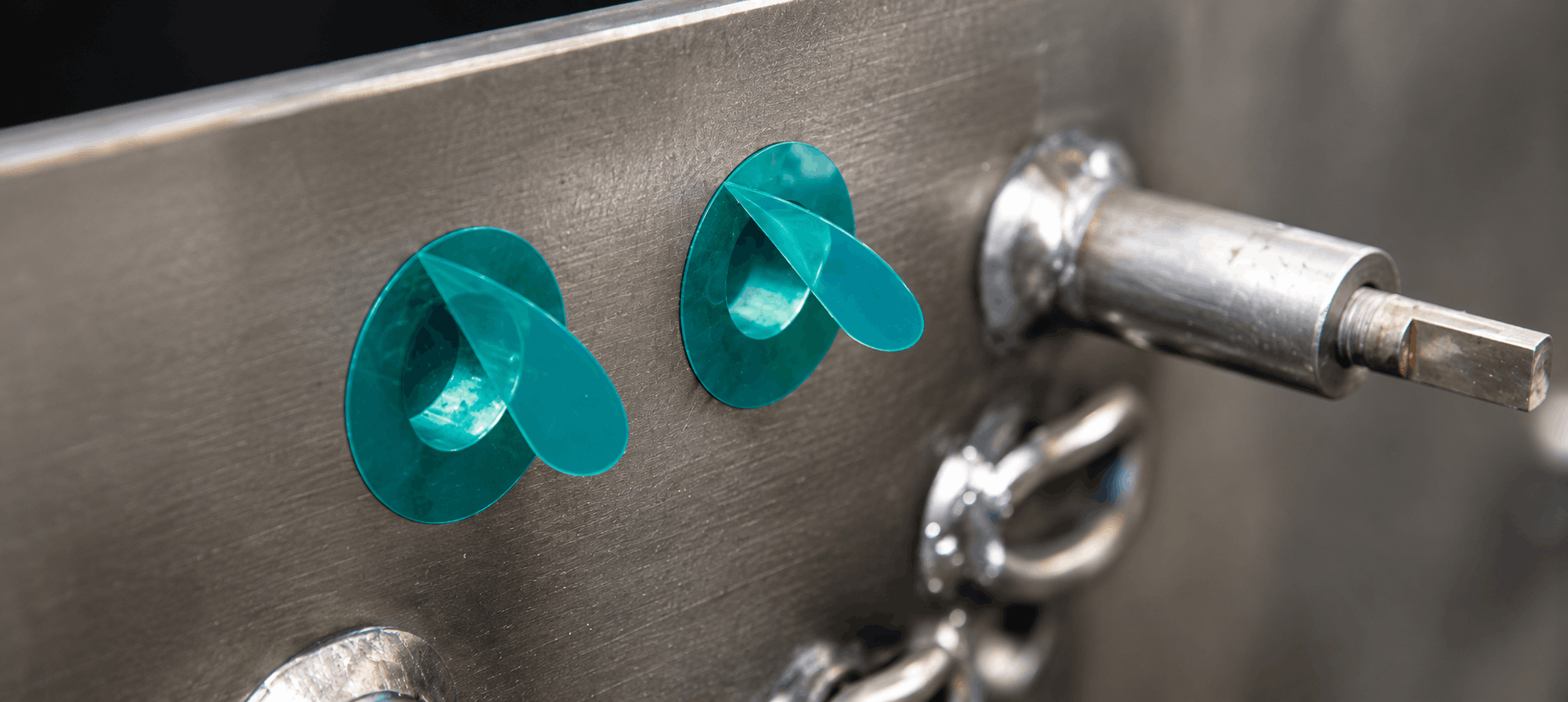

Our U.S. and Internationally Patented AW12 green polyester discs are rapidly becoming the discs of choice for general purpose powder coating applications. Easy grip tab aids in proper disc placement. Eliminate the "hunt" for buried discs that cause rework; the easy-to-find tab makes locating and removing the disc quick and free from surface marring. AW12 discs are cut with high-precision rotary tooling.

Typical Application:

Masking in Powder Coating, and Wet Spray. Also can be used for E-Coating, Anodizing and Plating applications (See Note Below).

Construction:

  • Total Thickness 3.5 mils (w/o liner)
  • Adhesive Thickness 1.5 mils
  • Carrier Thickness 2.0 mils
  • Adhesive Type Silicone
  • Carrier Type Polyester
  • Color Green

Specifications:

  • Maximum Temperature (F) 400
  • Tensile Strength (lbs/inch) 50
  • Elongation (%) 110
  • Peel Adhesion (oz/inch) 35

Patent Information:

  • US Patent - #6,656,558
  • Canada - #2,279,007
  • France - #0 960 175
  • United Kingdom - #0 960 175
  • Germany - #698 14 358.2-08
  • Netherlands - #0 960 175
  • Italy - #0 960 175
  • Sweden - #0 960 175
Part Number Diameter - IN Standard Diameter - IN Diameter - MM Discs per Roll Unit Purchase
0.393 Green Polyester Wishbon"
AW12-0100
0.394 x 10.0 500
Buy 1 $8.560/ROL
Buy 5 $7.970/ROL
In Stock
0.438 Green Polyester Wishbon"
AW12-0111
0.438 7/16 in 11.1 500
Buy 1 $9.280/ROL
Buy 5 $8.630/ROL
In Stock
0.500 Green Polyester Wishbon"
AW12-0127
0.500 1/2 in 12.7 500
Buy 1 $9.440/ROL
Buy 5 $8.780/ROL
In Stock
0.563 Green Polyester Wishbon"
AW12-0143
0.563 9/16 in 14.3 500
Buy 1 $10.780/ROL
Buy 5 $10.030/ROL
In Stock
0.594 Green Polyester Wishbon"
AW12-0151
0.594 19/32 in 15.1 500
Buy 1 $12.940/ROL
Buy 5 $12.040/ROL
In Stock
0.625 Green Polyester Wishbon"
AW12-0159
0.625 5/8 in 15.9 500
Buy 1 $11.110/ROL
Buy 5 $10.330/ROL
In Stock
0.629 Green Polyester Wishbon"
AW12-0160
0.630 x 16.0 500
Buy 1 $13.980/ROL
Buy 5 $13.000/ROL
In Stock
0.688 Green Polyester Wishbon"
AW12-0174
0.685 11/16 in 17.4 500
Buy 1 $13.620/ROL
Buy 5 $12.670/ROL
In Stock
0.750 Green Polyester Wishbon"
AW12-0190
0.750 3/4 in 19.0 500
Buy 1 $13.890/ROL
Buy 5 $12.910/ROL
In Stock
0.787 Green Polyester Wishbon"
AW12-0200
0.787 x 20.0 500
Buy 1 $17.720/ROL
Buy 5 $16.480/ROL
In Stock
0.813 Green Polyester Wishbon"
AW12-0206
0.812 13/16 in 20.6 500
Buy 1 $16.220/ROL
Buy 5 $15.080/ROL
In Stock
0.844 Green Polyester Wishbon"
AW12-0214
0.843 27/32 in 21.4 500
Buy 1 $18.100/ROL
Buy 5 $16.840/ROL
In Stock
0.875 Green Polyester Wishbon"
AW12-0222
0.875 7/8 in 22.2 500
Buy 1 $15.550/ROL
Buy 5 $14.460/ROL
In Stock
1.000 Green Polyester Wishbon"
AW12-0254
1.000 1 in 25.4 500
Buy 1 $19.990/ROL
Buy 5 $18.590/ROL
In Stock
1.063 Green Polyester Wishbon"
AW12-0270
1.063 1 1/16 in 27 500
Buy 1 $24.930/ROL
Buy 5 $23.190/ROL
In Stock
1.125 Green Polyester Wishbon"
AW12-0286
1.125 1 1/8 in 28.6 500
Buy 1 $25.940/ROL
Buy 5 $24.120/ROL
In Stock
1.250 Green Polyester Wishbon"
AW12-0318
1.250 1 1/4 in 31.8 500
Buy 1 $26.650/ROL
Buy 5 $24.780/ROL
In Stock
1.374 Green Polyester Wishbon"
AW12-0349
1.375 1 3/8 in 34.9 500
Buy 1 $36.380/ROL
Buy 5 $33.830/ROL
In Stock
1.500 Green Polyester Wishbon"
AW12-0381
1.500 1 1/2 in 38.1 500
Buy 1 $35.530/ROL
Buy 5 $33.040/ROL
In Stock
1.626 Green Polyester Wishbon"
AW12-0413
1.625 1 5/8 in 41.3 250
Buy 1 $28.540/ROL
Buy 5 $26.540/ROL
In Stock
1.750 Green Polyester Wishbon"
AW12-0445
1.750 1 3/4 in 44.5 250
Buy 1 $29.990/ROL
Buy 5 $27.890/ROL
In Stock
1.875 Green Polyester Wishbon"
AW12-0476
1.875 1 7/8 in 47.6 250
Buy 1 $33.820/ROL
Buy 5 $31.460/ROL
In Stock
2.000 Green Polyester Wishbon"
AW12-0508
2.000 2 in 50.8 250
Buy 1 $31.090/ROL
Buy 5 $28.910/ROL
In Stock
2.250 Green Polyester Wishbon"
AW12-0572
2.250 2 1/4 in 57.2 100
Buy 1 $19.460/ROL
Buy 5 $18.100/ROL
In Stock
2.375 Green Polyester Wishbon"
AW12-0603
2.375 2 3/8 in 60.3 100
Buy 1 $21.070/ROL
Buy 5 $19.600/ROL
In Stock
2.500 Green Polyester Wishbon"
AW12-0635
2.500 2 1/2 in 63.5 100
Buy 1 $20.730/ROL
Buy 5 $19.280/ROL
In Stock
2.750 Green Polyester Wishbon"
AW12-0699
2.750 2 3/4 in 69.9 100
Buy 1 $24.600/ROL
Buy 5 $22.880/ROL
In Stock
3.000 Green Polyester Wishbon"
AW12-0762
3.000 3 in 76.2 100
Buy 1 $27.210/ROL
Buy 5 $25.310/ROL
In Stock
4.000 Green Polyester Wishbon"
AW12-1016
4.000 4 in 101.6 100
Buy 1 $41.920/ROL
Buy 5 $38.990/ROL
In Stock
